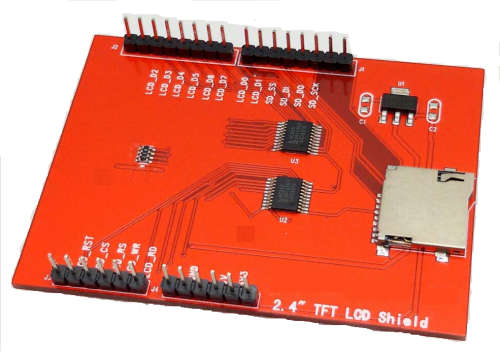

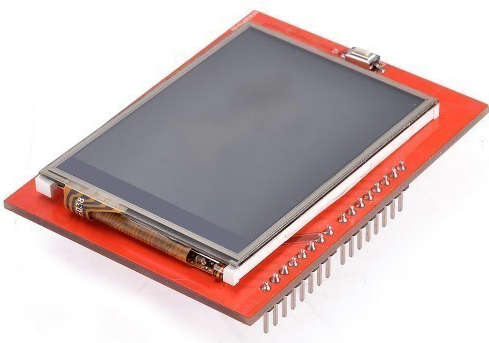

2.4 inch TFT Touch Screen LCD Arduino Shield with Micro SD Card Reader

2.4 inch TFT touch Screen LCD Module For Arduino. The LCD has excellent vivid color contrast.

Spice up your Arduino project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big (2.4″ diagonal) bright (4 white-LED backlight) and colorful (18-bit 262,000 different shades)! 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

• 2.4″ diagonal LCD TFT display
• 240×320 resolution, 18-bit (262,000) color
• SPFD5408 controller with built in video RAM buffer
• 8 bit digital interface, plus 4 control lines
• Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the microSD
• Works with any Arduino ‘328 or Mega (Leonardo not supported yet)
• 5V compatible! Use with 3.3V or 5V logic
• Onboard 3.3V 300mA LDO regulator
• 4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control
• 4-wire resistive touchscreen

This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
