2.4" TFT Handheld Digital Oscilloscope DIY Kit Parts w/ Case SMD Soldered Electronic Learning Set !!

2.4" TFT Handheld Pocket-sized Digital Oscilloscope DIY Kit Parts w/ Case SMD Soldered Electronic Learning Set (White)..!

Product Information

Description

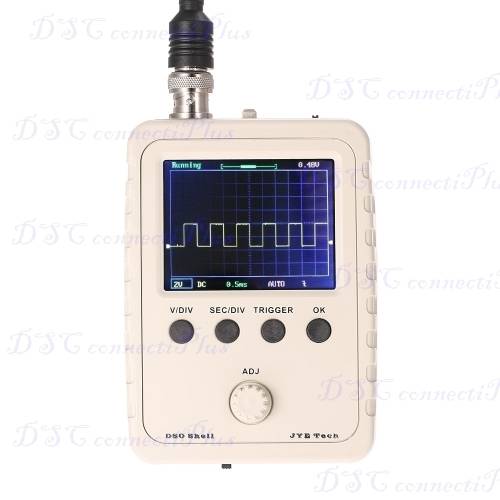

This DIY digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen and protective case.
It's easy and reliable for circuit operation. It can display waveform parameters such as frequency, period, pulse width,
duty ratio, MAX. / MIN. / AVG. / Peak-Peak / Virtual values.

Features

Adopting ARM Cortex-M3 processor (STM32F103C8), and including a 2.4-inch color TFT display screen.
Used for secondary development on the basis of this kit, for example, it can be changed to millivoltmeter, data loggers.
Comes with instructions, easy to install and operate.

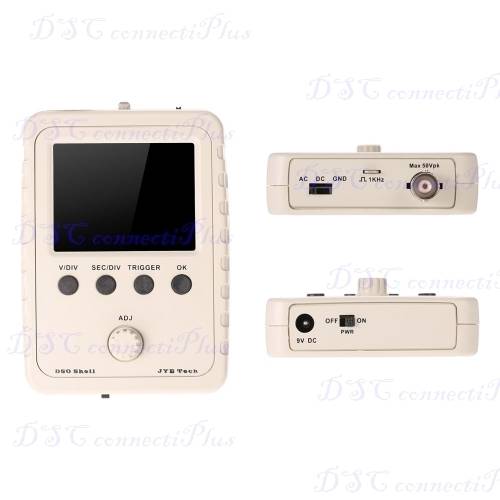

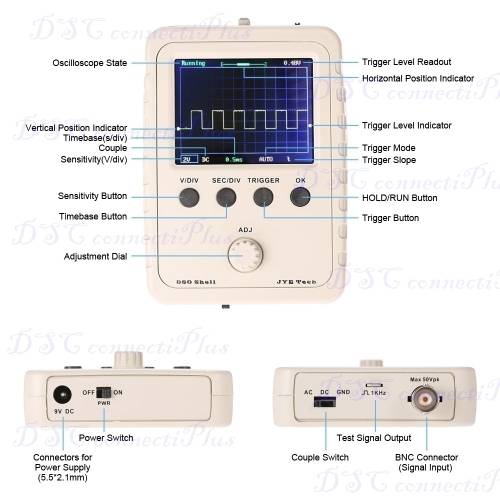

With Auto / Normal / Single trigger modes, easy to capture the moment waveform.
Rising or falling edge trigger available.
Observable previous waveform before trigger (negative delay).
Can freeze waveform display at any time (HOLD function).
With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/Virtual values.
Waveform storage function: Will not lose the waveform after power off.
Short-circuit and open-circuit detection: Can help the user find out the soldering error.
TFT controller recognition function.
The SMD has been soldered, more convenient for electronics beginner.

Specifications

Maximum Real-time Sampling Rate: 1MSa/s
Analog Bandwidth: 0-200KHz
Sensitivity Range: 5mV/div-20mV/idv
Maximum Input Voltage: 50Vpk (1X probe)
Input Impedance: 1M ohms/20pF
Accuracy: 12 Bits
Record Length: 1024 points
Coupling Modes: DC / AC / GND
Time Base Range: 500s/Div - 10us / Div
Trigger Modes: Auto, Normal, Single
Trigger Position: Center of Buffer
Supply Voltage: DC 9V(8-10V)
Current Consumption: ~120mA @ 9V

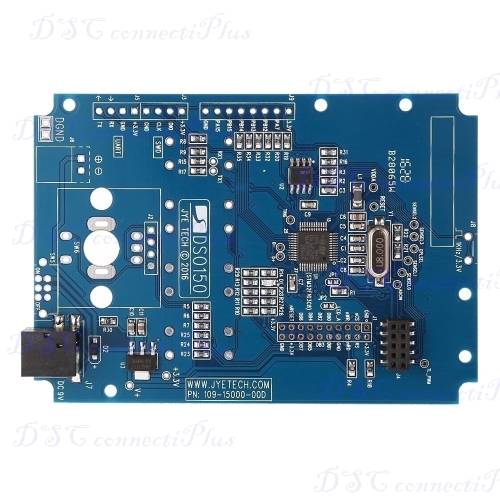

Main Board Size: 94 x 65mm / 3.7 x 2.56in
Analog Board Size: 65 x 47mm / 2.56 x 1.85in
Screen Size: 52 x 40mm / 2 x 1.57in

Packaging Details

Unit Type: Kit
Package Weight: 0.188kg (0.41lb.)
Package Size: 15 x 10 x 4cm (5.91 x 3.94 x 1.57in)

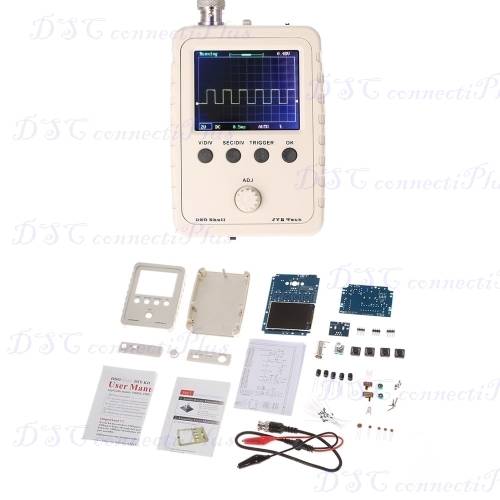

Package Contents

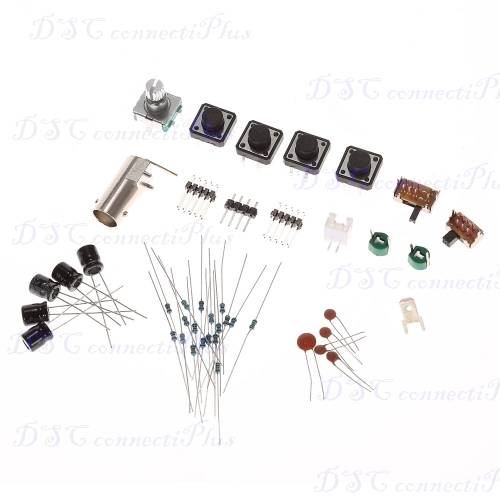

1x Digital Oscilloscope DIY Kit
1x Probe
1x DIY Case
3x User Manual
