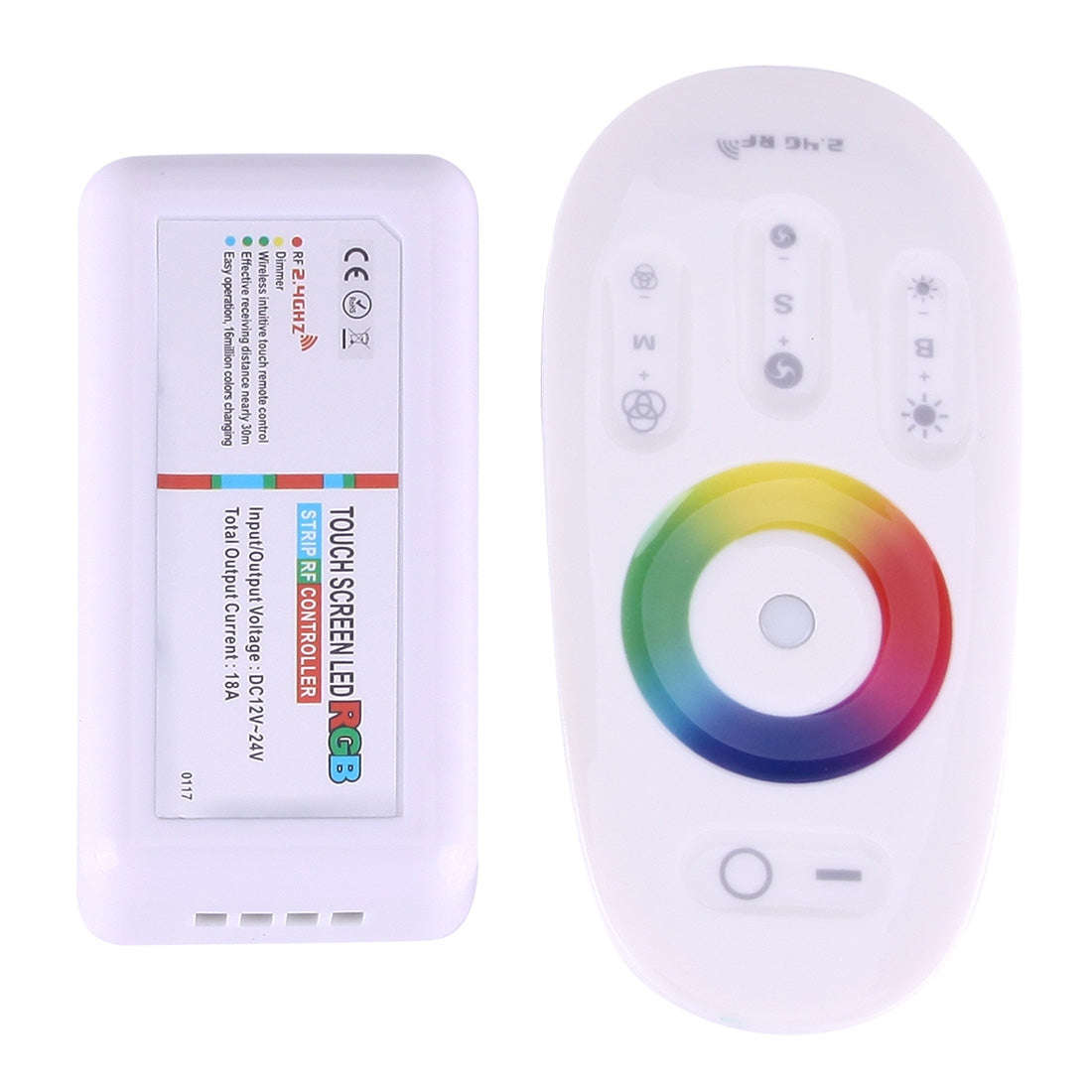

2.4G Touch Screen Remote RGB LED Controller

1) Product Description:

- This system is a high-performance RGB led touch remote controller adopting the most advanced PWM control technology controlling all RGB led products with Five lines and four circuits( common anode)owning 640 thousand colors and 20 automatically changing modes to choose.

- Also It has the memory function (that is to say the previous settings will be resumed when power on again). It is widely used in led RGB LED strip light led module and so on.

- With the technology of the 2.4G high frequency wireless remote control it has the characteristics of low power consumption long distance transmission and strong anti-interference ability high speed telecommunications etc.

-The remote looks fashionable and elegant with simple and practical functions of color changing and brightness dimming the capacitive touch screen design makes the remote easy to use.

- The modular design and easy screwed terminals enable the controller easy to match with all kinds of led light products.

2) Remote:

- Size: 110mm 52mm 20 mm

- Power: AAA2

- Material: ABS

- Fabrication processing: Multicolor printing & UV varnish

3) Controller:

- Size: 85mm 45mm 23mm

- Working voltage: 12V24V

- Control way: RGBW four channels

- Max load per channel: 6A

- Output Connection: Common anode

- Control distance: 30 meters

- Programs:20 kinds

4) Life time: 50000 hours
