2.4G Wireless Remote Control RC Module Transmitter Receiver LT892 Instead of NRF... (DISTANCE: 400M)

20 available / new

R306.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.46 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641103390

SELECTED OPTION:
DISTANCE: 400M

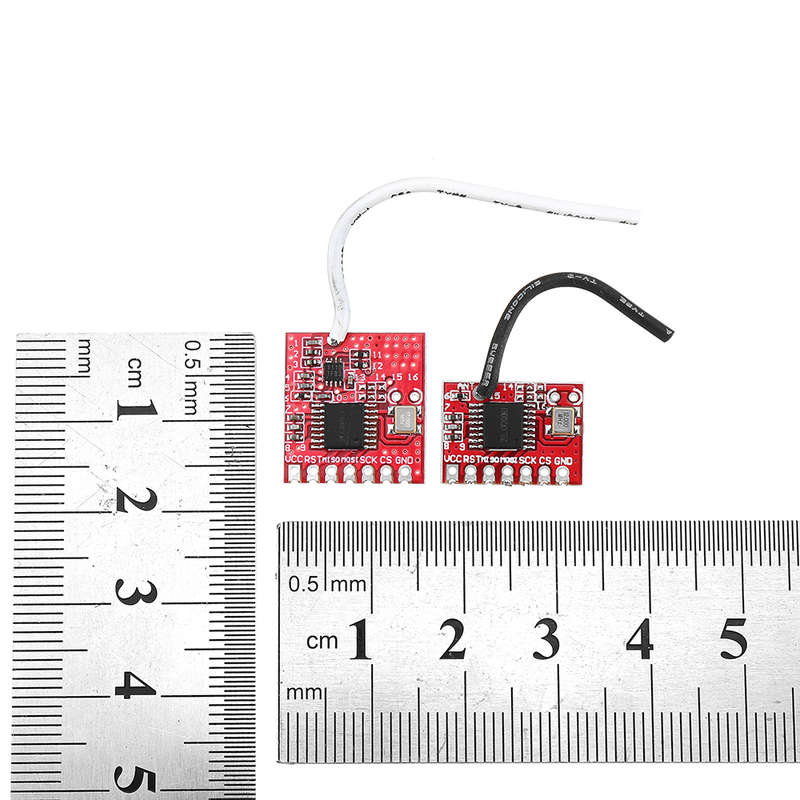

150M version: 1. Module model: GWB 2. Transceiver type: transceiver 3. Working voltage: 3-3.6V 4. Power consumption: normal operating current 15mA, instantaneous emission current 42mA 5. Transmission distance: 150 meters 6. Module interface: 2mm pitch half hole, 7P, support IIC, SPI 7. Module size: 15.4*11.4mm, antenna length 33mm, weight of 1 pair 1.8g 400M version: 1. Module model: GWB, T400 (added PA gain amplifier based on GWB) 2. Transceiver type: T400-It can transmit or receive. Since PA is unidirectional transmit gain amplification, the transmission distance is 400 meters and the receiving distance is about 50 meters. GWB - transceiver integration. Therefore, the T400 can transmit data to the GWB within 400 meters, but can only receive data of GWB within 50 meters. It can be applied to the high-end remote control model. The T400 is installed on the remote control, the GWB is installed on the model. After match the code, control the model up and down, left and right. 3. Working voltage: 3-3.6V (The instantaneous transmitting power is very large. For the wireless module to work reliably, please use LDO above 300mA, and the LDO voltage output terminal is above 100uf capacitor) 4. Power consumption: normal operating current 30mA, instantaneous emission current 340mA 5. Transmission distance: 400 meters 6. Module interface: 2mm pitch half hole, 7P, support IIC, SPI 7. Module size: 15.4*17mm, antenna length 50mm, weight of 1 pair 2g

Package includes: ( Emission distance optional)
1 x Transmitting Module
1 xReceiving Module
