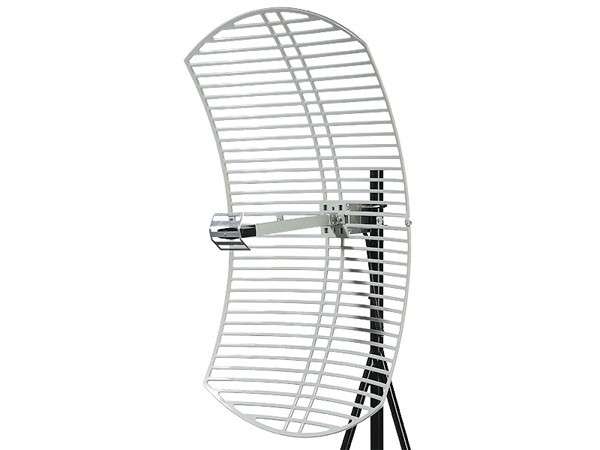

NT-G224 is a 24dBi aluminium die-cast, directional parabolic, grid antenna, which is suitable for outdoor applications in the 2.4GHz ISM band.
This antenna features a high gain, long-range, light-weight, compact structure and good command in wind resistance.
SPECIFICATIONS
- Polarisation: Vertical or Horizontal
- Max Power-W: 100
- Frequency Range-MHz: 2400-2483
- Bandwidth-MHz: 83
- Gain -dBi: 24
- Horizontal Beam-width: 10º
- Vertical Beam-width: 14º
- F/B ratio-dB: ¿31
- VSWR: ¿1.5
- Input Impedance -¿: 50
- Connector: N-Type female
- Dimensions (m): 0.6×0.9
- Weight: 3.6kg
- Mounting Mast Diameter-mm: ¿40¿50
- DC Grounded
