2.4GHz-5.8GHz 5w UWB Ultra-wideband Antenna Positioning Antenna Wifi Antenna

Introduction:

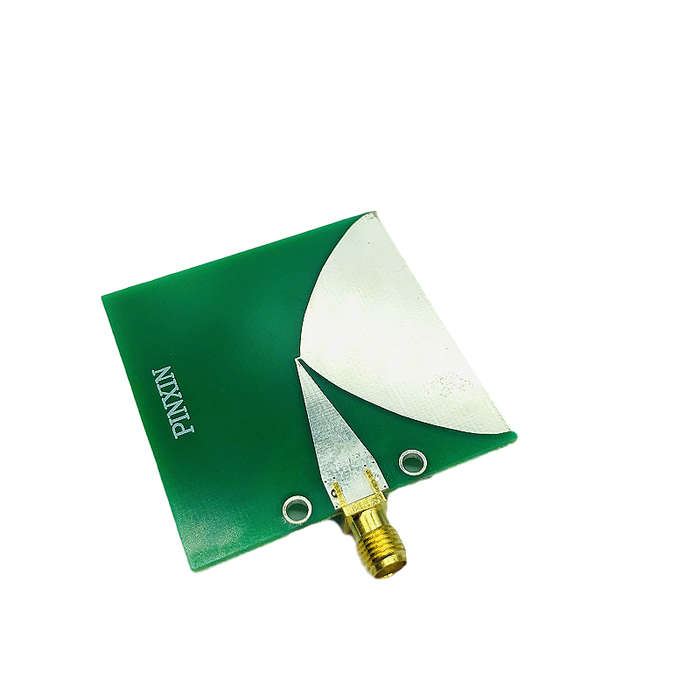

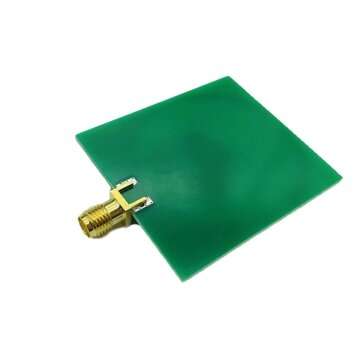

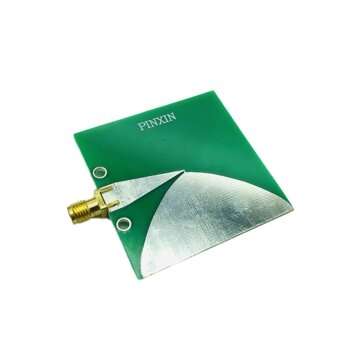

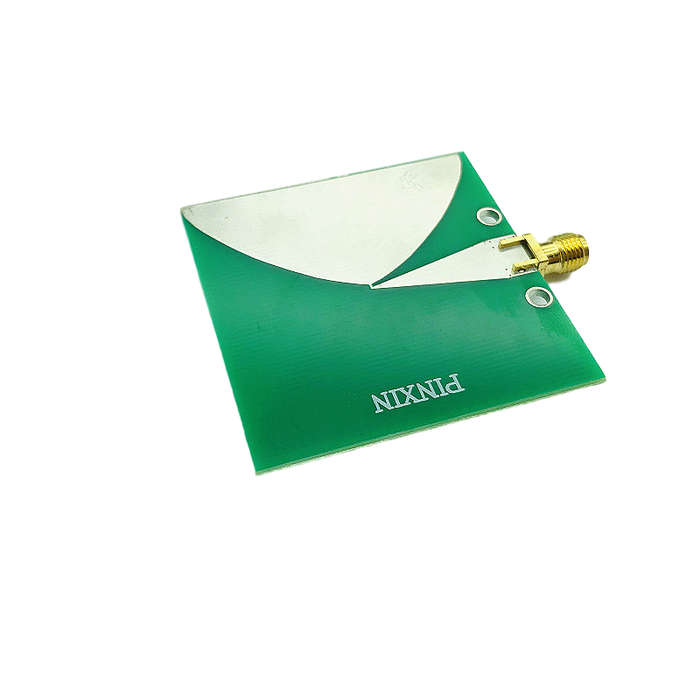

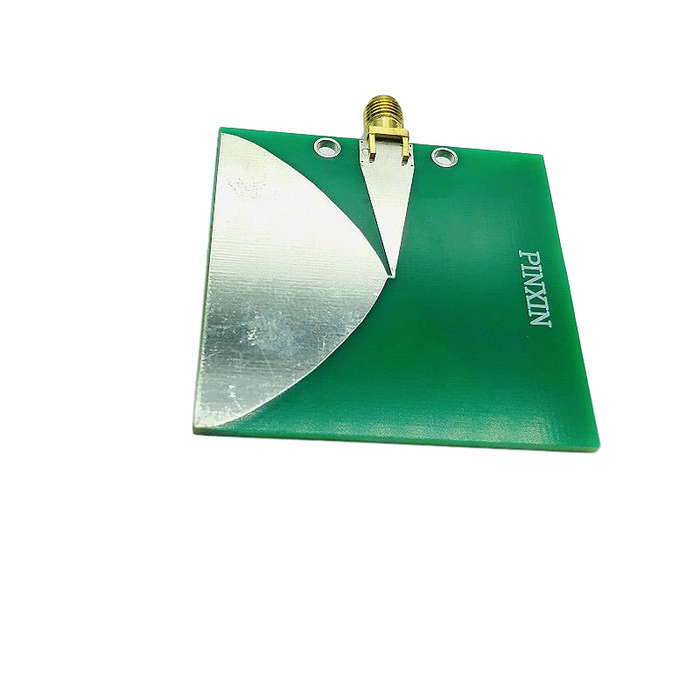

The antenna is a bow tie type ultra-wideband dipole antenna. It is suitable for omnidirectional radio signal transmission and reception, coverage, signal testing and other purposes. The antenna covers common frequency bands such as mobile phones, UWB positioning, and Wifi.

Technical index:

1. Working frequency: 2.4GHz-5.8GHz

2. Power capacity: 5w

3. Antenna gain: 3.5dBi

4. Radiation direction: the axial direction of the antenna surface

5. Polarization method: horizontal linear polarization

6. Antenna impedance: 50 ohms

7. Return loss: <10dB

8. Standing wave ratio: 1.5 typical

9. Connector type: SMA-K (standard female, outer screw and inner hole)

10. Antenna size: 50*50*mm (without connector)

Package includes:

1 x antenna
