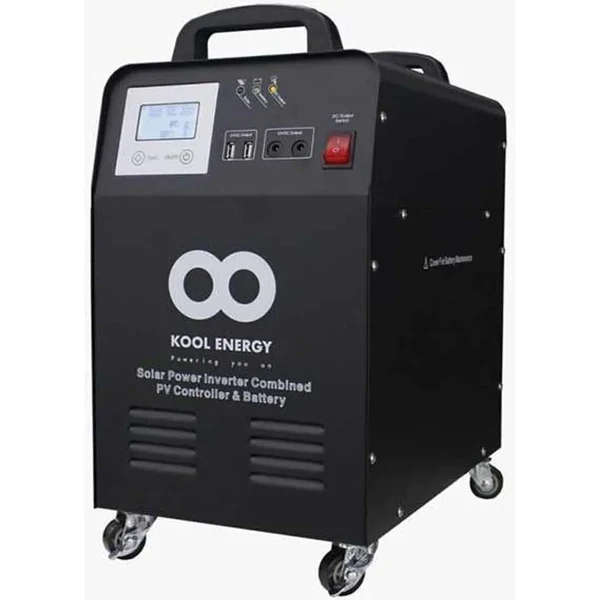

2.5 KVA Plug & Play Inverter System All In 1

2.5 KVA Plug And Play Inverter System All In 1

Inverter System All In 1
This plug and play inverter is easily transported to where ever you need it and its compact size makes it easy to store away when not in use.

Its plug-and-play ability makes it the perfect companion during load shedding and it will run your essential loads. This unit does not need to be installed so you won't have to spend on solar installations which makes it even more cost-effective.

Pure Sinewave for Sensitive Electronics & Motorised Loads
Microprocessor Control Optimizes Reliability
Input Power Factor Correction
Output Power Factor 1.0
Comprehensive Display Allows Easy Monitoring & Access of UPS Status
Built-in MPPT solar charger
2 x USB 5 V DC output and 2 x 12 V DC output
Battery cut off switch for safety
Pre-installed batteries

Specifications
RATED POWER: 2500 W
OUTPUT VOLTAGE: 220 VAC
OUTPUT FREQUENCY: 50 / 60 Hz
OUTPUT WAVEFORM: Pure Sine Wave

SOLAR INPUT
MAXIMUM PHOTOVOLTAIC
VOLTAGE (VDC): ~ 25 V
CHARGE VOLTAGE (VDC): 10 V - 25 V
RATED CHARGE CURRENT (A): 30 A
MAXIMUM POWER (Wp): 360 Wp
VOLTAGE OVERCHARGE PROTECTION
(VDC): 14.2 V
VOLTAGE OVERCHARGE RECOVERY
(VDC): 14.0 V
VOLTAGE OF FLOATING CHARGE (VDC):
13.7 V

OUTPUT
AC OUTPUT:
2 x SA 3 Pin Socket - 230 V 50 Hz,
1000 VA / 1000 W Max. (Combined)
USB OUTPUT:
2 x USB Type A Port - 5 VDC 2 A Max.
DC OUTPUT:
2 x 12 V DC Port 2 A Max.
BATTERY TYPE:
1 x 12 DC 100 AH Deep Cycle
VRLA Gel Battery

Ports and Interfaces
1. AC Output
2. Smart Cooling Fan
3. AC Input
4. Solar PV Input
5. Battery Extension
6. Battery Switch
7. Led Indicator
8. LCD Display
9. Function Buttons
10. On / Off Buttons
11. 5VDC Output
12. 12VDC Output
13. DC Output Switch

What's in the box
1 x Kool Energy 2.5KW Inverter
