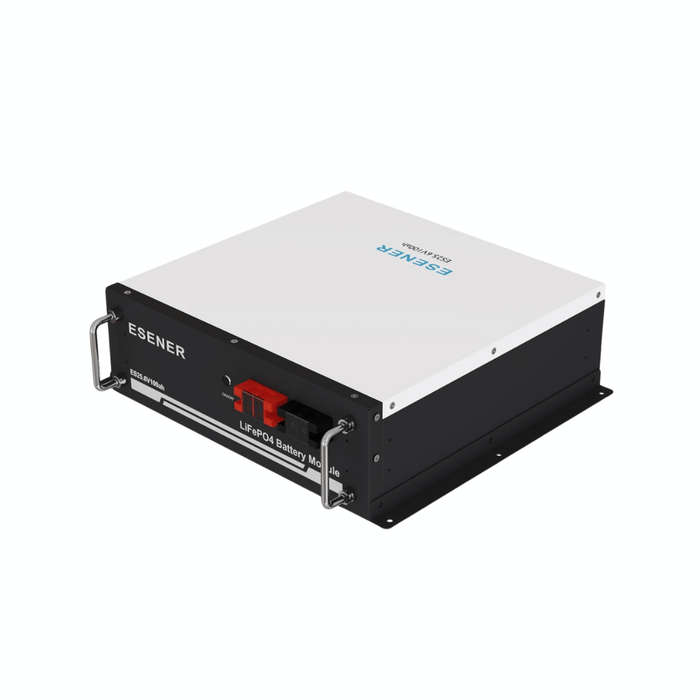

2.56 kWh Esener Lithium Battery 25.6V 100AH

Product Overview

The Solarix Esener 2.56 kWh 25.6V 100Ah Lifepo4 Single Battery Module is perfect for an entry level small to medium residential or business installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance. Design To Work Perfectly with Hybrid Inverter system Up To 3.5KVA 24V and has a long lifespan of up to 10 years . Standard 19-Inch Rack Mount Embedded designed module for easy installation and maintenance.

Features
• Esener 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
• Design To Work Perfectly Hybrid Invertors Up To 3.5KVA 24V
• Excellent High-Temperature Performance.
• 1c High-Performance Lithium Battery.
• High Energy Density And Conversion Efficiency.
• Low Self-Discharge.
• 19 Inch Rack Mount Chassis
• Heavy-Duty Side Handles For Easy Handling And Mounting To The Wall
• Built-In Protection For Over-Charge, Over-Discharge & Over-Temperature
• Long Lifespan Up To 10 Years
• Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD
• Normal Voltage 25.6V
• Rated Capacity: 100Ah
• Total Usable Energy 2.56KWh
• Voltage Range 20.0V to 29.2V
• Charge Current 100A
• Discharge Current 100A

Specifications
• Stock Code SOLES25LB100A
• Description Solarix Esener 2.56 kWh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
• Rated Capacity (5HR): 100Ah.
• Voltage: 25.6V.
• Total Usable Energy 2.56KWh
• Discharge Cut-off Voltage: 20.0V.
• Equalised Charge Voltage: 29.2V.
• Maximum Continuous Charging Current: 100A.
• Maximum Continuous Discharging Current: 100A.
• C. Rating: 1.0C.
• Display: None.
• Parallel/Series: Parallel and series connection up to "2S2P".
• Ports: 1x Positive Socket, 1x Negative Socket, 1x Power switch.
• Cells: New Li-Ion Prismatic Cells.
• Design Life: -/+ 10 Years.
• Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD.
• Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
• Dimensions (WxDxH): 484mm x 420mm x 133mm.
• Weight: Approx. 26kg.

What's in the box
1 x Solarix Esener 25.6V 100Ah Lifepo4 Single Battery Module
