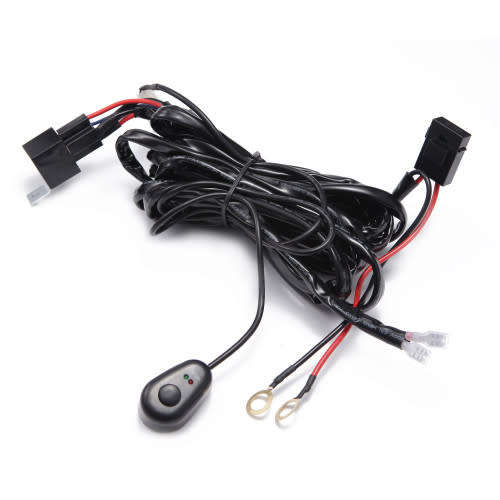

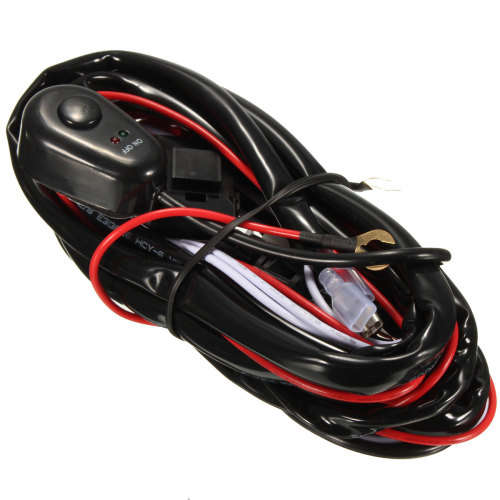

LED Work Light Bar Switch Wiring Harness Kit Loom W/ 40A Relay Fuse
Description:
The wiring harness for LED off road lights is the perfect accessory for off road vehicles, working vehicles, a
nd any automobile that could use a relay to power specific equipment.
This wiring harness for LED off road lights simplifies the installation process of powering various equipment on all automobiles.
Installation: (Just for reference)
1. Connect the the red+ wire from the fuse to battery +; connect the black wire from the reply to the battery -;
2. Connect the wire for lights bar from the relay; (red/black correspond to the wire of lights bar)
3. Connect the white +/black- wire of the switch to battery or any place of your car system to get power for the switch

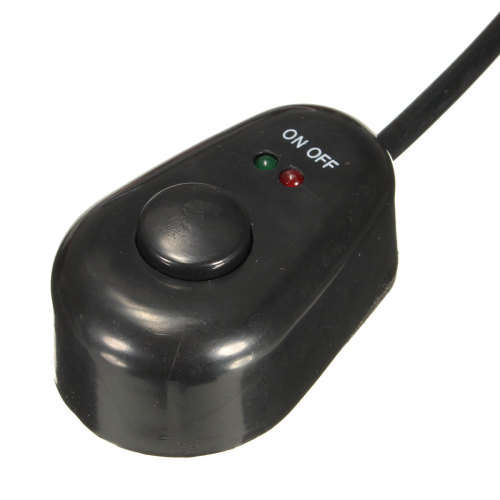

4. Turn on on/off button of switch to test the lights bar
Specification:
Color | Black |
Output | DC 5V |

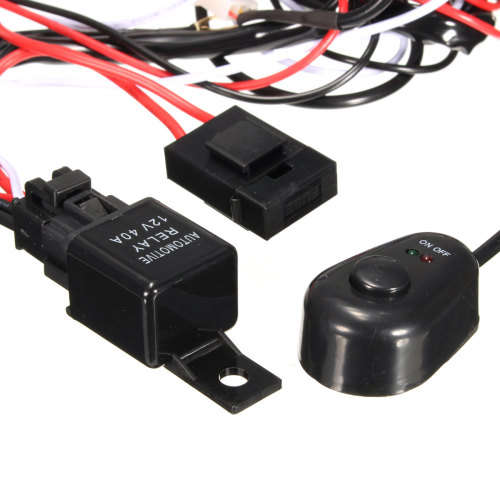

Relay | 12V 40A |
Switch | DC 12V 20A / DC 24V 10A |
Wattage | Up to 300W |
