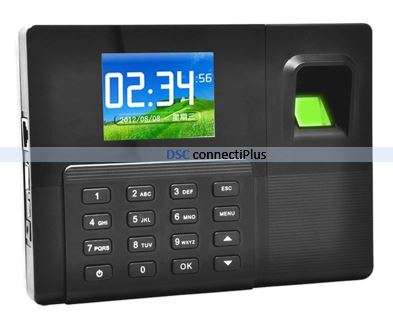

2.8 Inch Color TFT Screen Backup Battery Fingerprint & RFID Real Time Attendance with TCP/IP & More!

|SPECIAL PROMO| 2.8 Inch Color TFT Screen Backup Battery Fingerprint & RFID Real Time Attendance with TCP/IP & Access Control, USB Communication Office Clock (Black)..!

Product Information

Key Features

1. Adopting the most advanced fingerprint algorithms, the identification ability to the fingerprint under the change of
environment, climate and a finger injury, peeling fingerprint has significantly improved and can distinguish in one second
under a full fingerprint state.

2. We are the first to use the intelligent sensor energy-saving fingerprint reader in the industry, along with the advanced
power management features, can reduce the energy consumption effectively. The fuselage built-in backup batteries,
available during blackout, attendance is not plagued by power cuts.

3. The fingerprints intelligent learning update function can implement registered for one time and use for a whole lifetime,
that will relieve you from many troubles.

4. The using of a 2.8-inch TFT color display will makes your interface operation intuitive and clear.

5. The machine support switching signal output, can use the access control, attendance also can control to open the door.

6. Using USB and TCP/IP communication, and can also support USB-disk to download attendance records and fingerprint
data and other functions. The user's fingerprint can register in one machine register and share by a U disk, and no need
to connect to a computer in real time.

7. The machine has three authentication methods: fingerprint, password and ID card

8. The desktop software uses the RIMSOFT's RIMS (Koch) management system, it is simple to use, intuitive to operate
and with the upgrading and the continuous improvement of the product range, the user can enjoy the added value of software
upgrading all the time.

Specifications

General

Types: Time Attendance
Communication: USB, TCP / IP
Language: English
Power Management: Auto Sleep Time, Auto Power Off Time
Operating Temp: -10 to +60 'C
Operating Humidity: 20 to 80 %

Technical Parameters

Display Screen: 2.8 inch TFT
Fingerprint Sensor: Energy-saving, Optical Fingerprint Sensor, Resolution: 500 DPI
CPU: 32 bit
Fingerprint Capacity: 1000
Log Capacity: 100,000 events
Identification Mode: Fingerprint, Password
Proximity Card: EM4100 or other non-contact ID card, 125Khz
Flash Drive: Available, Up/Download Available
Record Query Available (people can query their own attendance record after authentication)
Rotational Angle: Total Angle
Identification Time: <= 1s
FRR: <= 0.1 %
FAR: <= 0.0001 %
Operating Modes: Offline, Online
Authentication Modes: 1:1, 1:N
Voice Prompt: Available
Bell: Built-in Timing Bell
Self-test Function: Support
Access Control: Support, the switching signal output
Spare Batteries: Support, Standby 8 hours, Continuous working time about 4 hours

Power Supply

Voltage: DC 5V / 1A

Dimensions

Size: 180 x 135 x 35mm

Package Weight: 0.75kg / 1.65lb

Package Contents

1 x Time Attendance
1 x Power Plug
1 x User Manual
1 x Siding
4 x Screws
4 x Expansion Tubes
1 x CD Driver
1 x Cable
