2.8 inch Touch LCD Shield for Arduino 2.8 inch Touch LCD Shield for Arduino 2.8 inch Touch LCD Shield for Arduino 2.8 inch Touch LCD Shield for Arduino 2.8 inch Touch LCD Shield for Arduino
2.8 inch Touch LCD Shield for Arduino 2.8 inch Touch LCD Shield for Arduino 2.8 inch Touch LCD Shield for Arduino 2.8 inch Touch LCD Shield for Arduino 2.8 inch Touch LCD Shield for Arduino

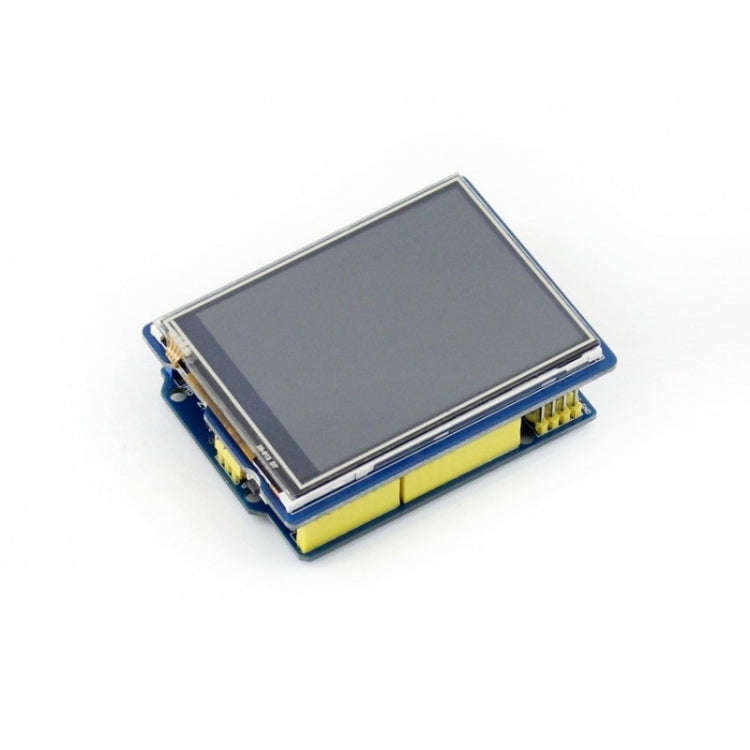

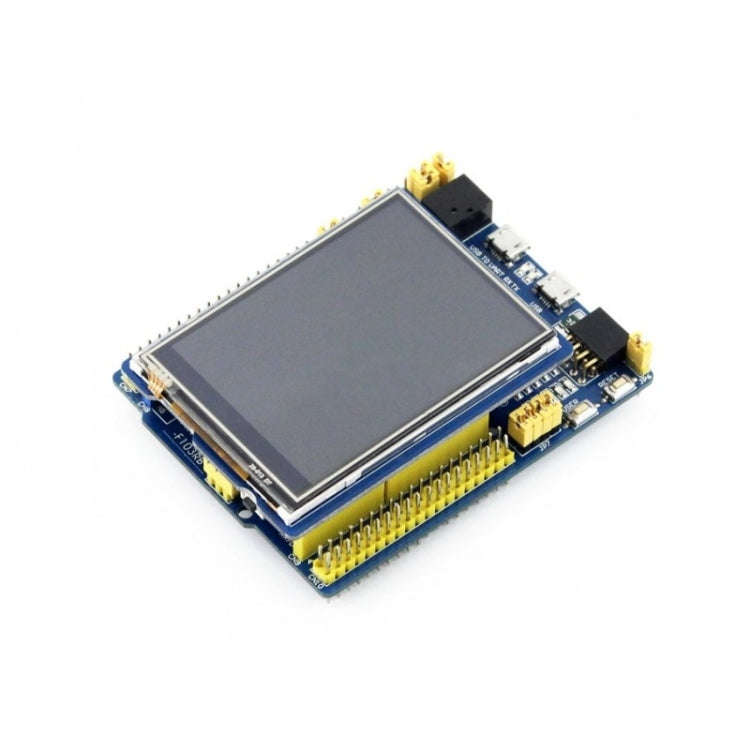

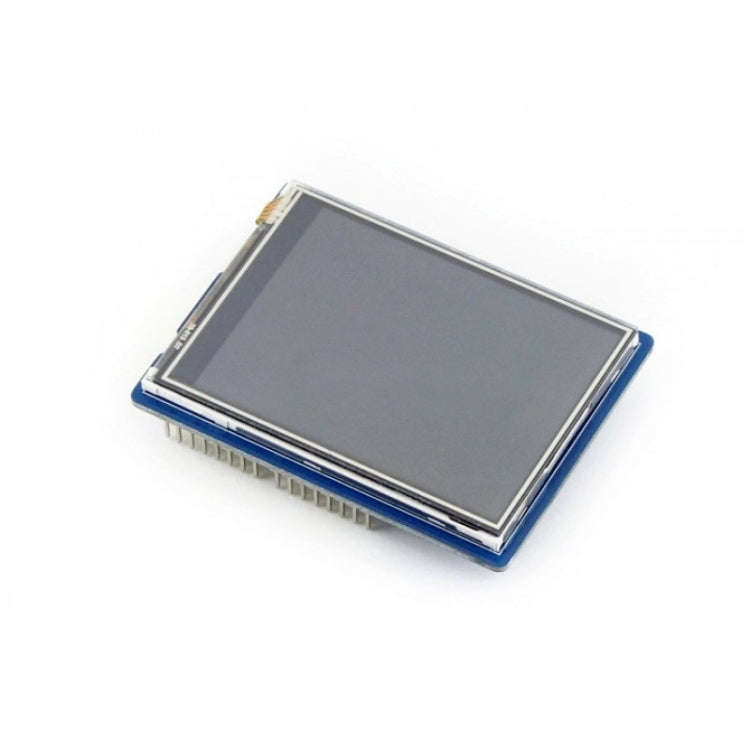

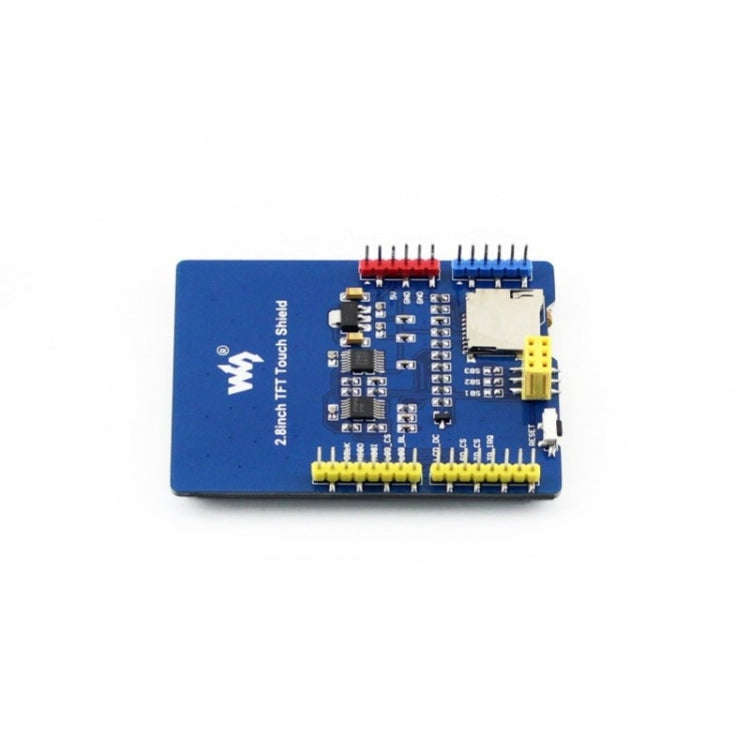

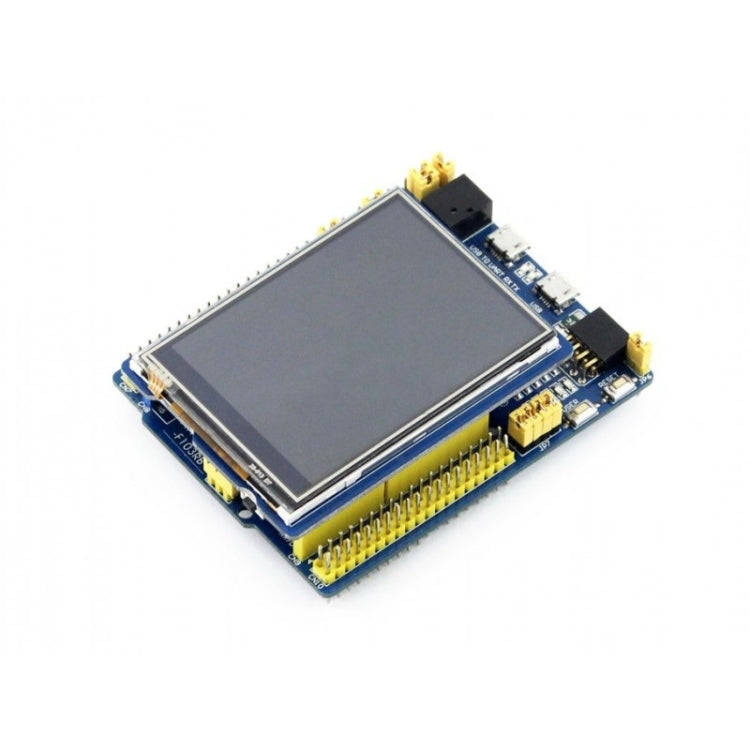

2.8 inch Touch LCD Shield for Arduino

New 10 available
R521.14
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
ZY15060040
Bob Shop ID
628966917
Features
1. Resistive touch screen TFT LCD, 2.8inch, 320x240 resolution
2. Standard Arduino interface, compatible with development boards like : Arduino UNO, 3. Leonardo, UNO PLUS, NUCLEO, XNUCLEO
4. Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
5. Micro SD slot, provides an easy way to store photos for displaying
6. Controlled via SPI, only a few Arduino pins are used
7. Backlight adjustable by program, lower power consumption

Key Parameters
1. LCD Type: TFT
2. LCD Interface: SPI
4. LCD Controller: HX8347D
5. Touch Screen Type: Resistive
6. Touch Screen Controller: XPT2046
7. Colors: RGB, 65K colors
8. Resolution: 320x240 (Pixel)
9. I/O Voltage: 3.3V/5V

Wiki : www.waveshare.com/wiki/2.8inch_TFT_Touch_Shield
