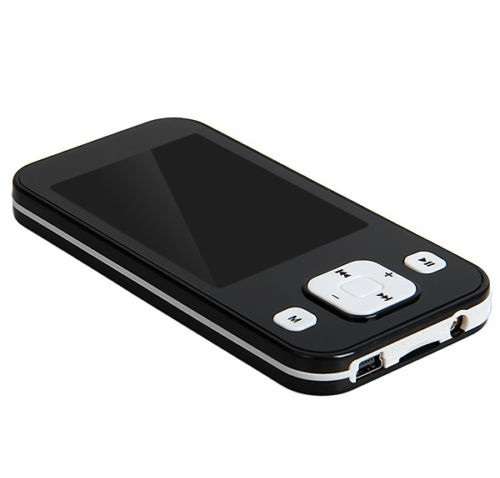

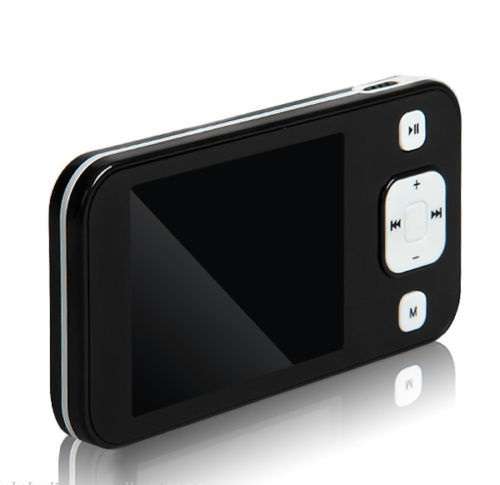

2.8" LCD Pocket Mini Oscilloscope Complete Kit (Micro SD/TF Card Slot)..!
Product Specifications

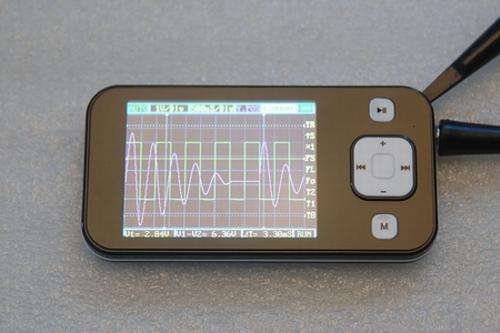

DS0201 is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements
2.8" color TFT LCD display
Display resolution: 320*240
Analog bandwidth: 0 - 1MHz
Max sample rate: 1Msps 12Bits
Sample memory depth: 4096 Point
Horizontal sensitivity: 1uS/Div~10S/Div (1-2-5 Step)
Horizontal position: adjustable with indicator
Vertical sensitivity: 10mV/Div~10V/Div (with 1 probe), 0.5V/Div~10V/Div (with 10 probe)
Vertical position: adjustable with indicator
Input impedance: >500K ohm
Max input voltage: 80Vpp (by 1 probe)
Trig modes: Auto, Norma, Single, None and Scan
Functionalities: Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage
Test signal: Built-in 10Hz~1MHz square wave generator with output (1-2-5 Step)

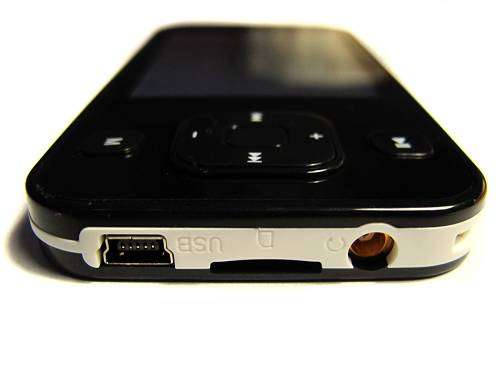

Waveform storage: micro SD card
PC connection via Mini USB B-Type
Upgraded by bootloader via USB
Power supply: 3.7V Chargeable Lithium battery (included)
Dimensions: 10.6 x 5.4 x 0.9 cm
Weight: 137 g

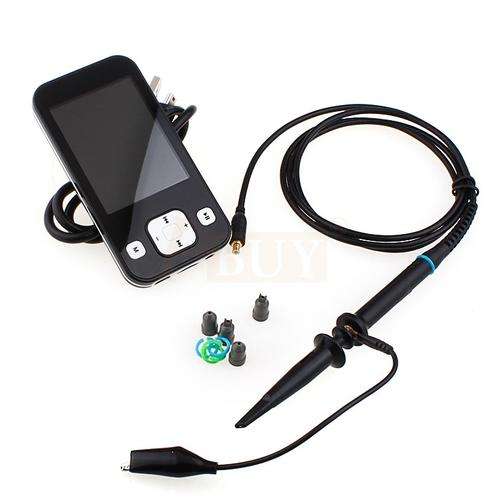

Package Contents
1x DS0201 Oscilloscope device
1x 3.7V Chargeable 550mAh lithium battery with connector
1x Probe
1x USB cable
1x Set of rubber rings
