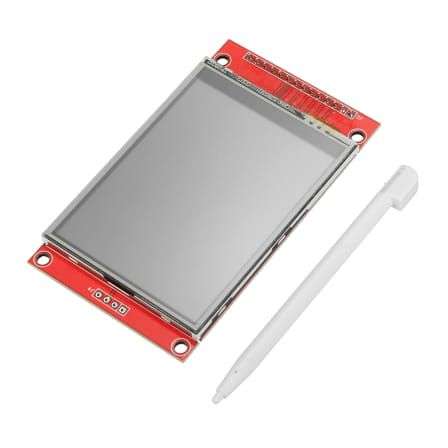

2.8" TFT LCD with SPI Interface and Touch Functionality

New 2 were available
R432.99
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
DL-009
Bob Shop ID
593183607

Looking to elevate your projects to new heights? Look no further than this remarkable 2.8" TFT LCD display with SPI interface and touch functionality. It's the perfect choice for those seeking to create impressive works.

This 2.8" TFT LCD features a vibrant full-color display with a resolution of 240 x 320 pixels (or 320 x 240 pixels, depending on orientation). Utilizing the advanced ILI9341 controller with SPI interface, it offers seamless performance. Additionally, it boasts a responsive resistive touchscreen with a built-in XPT2046 controller.

For your most ambitious projects, this 2.8" TFT LCD with SPI Interface and Touch Functionality serves as the ideal screen. And with the added convenience of the SD card slot, storing and displaying your desired images has never been easier.

Here are the specifications for this incredible screen:

- Type: Touch Panel

- Screen: 2.8" SPI Serial

- Display area: 46(W) x 65(H)mm

- Size: 86 x 50mm

- Driver element: a-Si TFT active matrix

- Pixel arrangement: RGB vertical stripe

- Driver IC: ILI9341

- Backlight: White LED

- Viewing direction: 6 o'clock

- Color depth: 262K/65K

- Resolution (dots): 240RGB x 320Dots

- Compatible with 5V, works with 3.3V or 5V logic

- Requires at least 4 IOs from your MCU

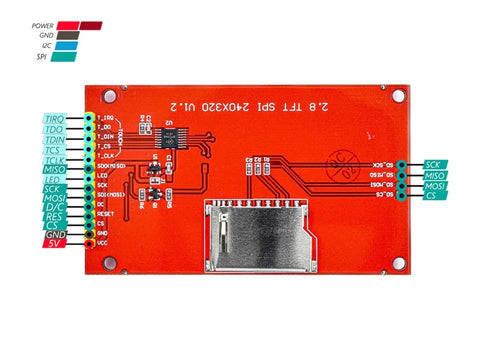

- Comes with a PCB plate (including power supply IC, SD), and it's compatible with the 5110 interface.


Upgrade your projects with this high-quality screen and unleash your creativity!



2.8" TFT LCD



Datasheet
