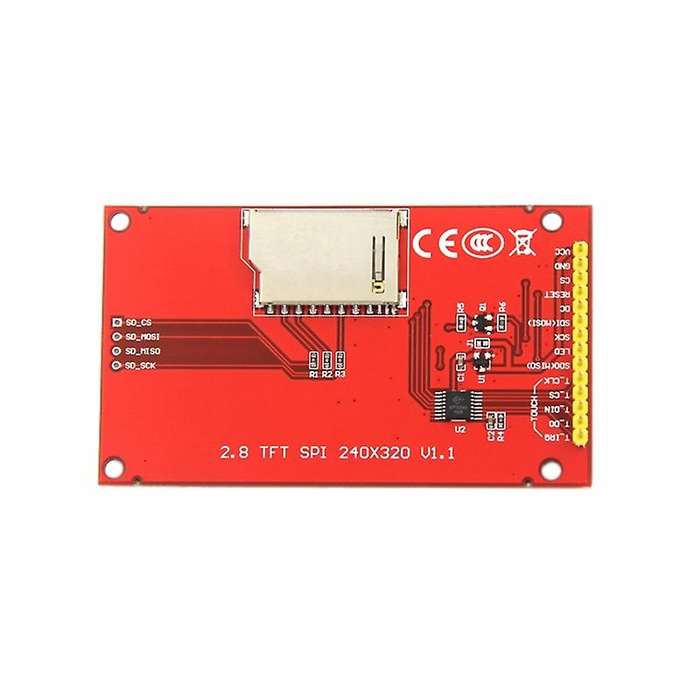

2.8inch 240x320 Spi Serial Tft Lcd Module Display without Press Panel

Product Description: 2.8-inch color screen,support 65K color display,display rich colors320X240 resolution, no Press functionUsing the SPI serial bus, it only takes a few IOs to illuminate the displaycolor: redMaterial: metal + pcEasy to expand the experiment with SD card slotProvide a rich sample programprocess standards, long-term stable workProvide underlying driver technical supportProduct Parameters:Name : ParameterDisplay Color: RGB 65K colorSKU : have no Press screen: MSP2806Screen Size: 2.8(inch)Type : TFTDriver IC : ILI9341Resolution : 320*240 (Pixel)Module Interface: 4-wire SPI interfaceActive Area (AA area): 43.2x57.6(mm)Module PCB Size : 50.0x86.0(mm)Operating Temperature: -20~60Storage Temperature : -30~70VCC power voltage : 3.3V~5VLogic IO port voltage: 3.3V(TTL)Power Consumption : TBDRough Weight(Package containing): No touch: 34(g)Package Contents:1* 2.8 inch 240*320 SPI Serial TFT LCD ModuleOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
