2 Cell Lithium Battery Protection Board 2 Cell Lithium Battery Protection Board
2 Cell Lithium Battery Protection Board 2 Cell Lithium Battery Protection Board
Sold

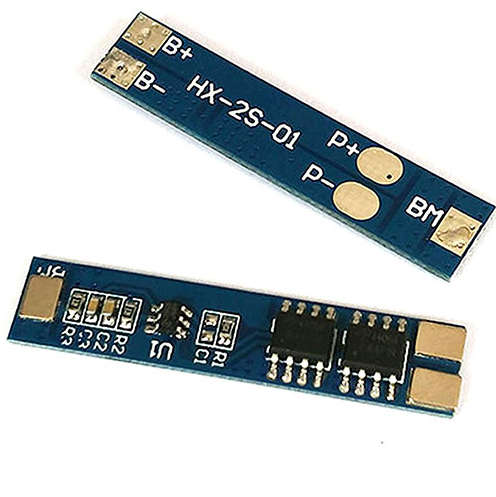

2 Cell Lithium Battery Protection Board

New 20 were available
R38.18
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
POW-00229
Bob Shop ID
577666099

Features:

Small size protection board which is suitable for highly integrated, low-cost requirements of a variety of occasions and meets a wide range of performance requirements.
The main function: Overcharge protection, over discharge protection, short circuit protection, overcurrent protection and is suitable for various shapes of 3.7V lithium battery capacity.

Technical Parameters:

Overcharge detection voltage: 4.25-4.35V 0.05V
Over discharge detection voltage: 2.5-3.0V 0.05V
Maximum operating current: 5A
Transient current: 7A
Quiescent current: less than 5uA
Internal resistance: <300m
Short circuit protection: can be protected, need to charge recovery.
Effective life: 50,000 hours or more
Operating temperature: -40-50
Size: 38x 8x2.5mm

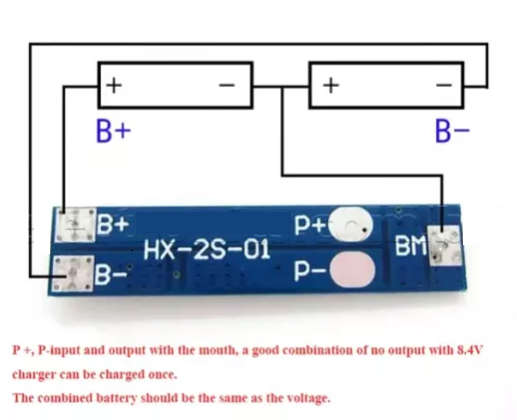

Connection instructions: B + B-: connect the battery P + P-: Connect the charge / discharge terminal MB: battery connection point B +: Battery V + Positive B-: Battery V- Negative P +: Output / Charge V + P-: Output / Charge V-
