2-Channel USB PC Oscilloscope
New
R3,330.00
Closed
5 Aug 13 14:15
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Bob Shop ID
108402854

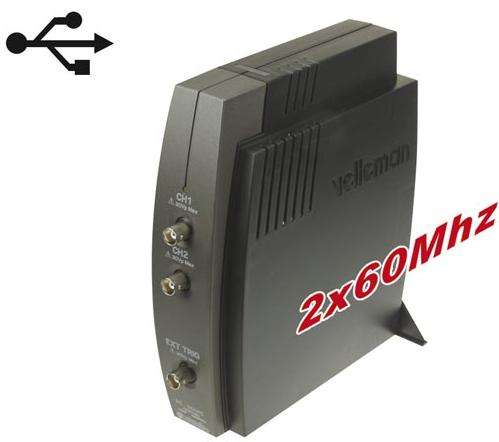

The PCSU1000 digital storage oscilloscope uses the power of your PC to visualize electrical signals. Its high sensitive display resolution, down to 0.15mV, combined with a high bandwidth and a sampling frequency of up to 1GHz are giving this unit all the power you need.
The USB connection makes this unit a snap to set-up, no external power required! In the field measurements using a lap-top computer have never been this easy.
This scope comes in a stylish vertical space saving design.
Powerful software will fulfill all your needs, but for those who like a challenge; a DLL is supplied, which allows you to create your own application.
The USB connection makes this unit a snap to set-up, no external power required! In the field measurements using a lap-top computer have never been this easy.
This scope comes in a stylish vertical space saving design.
Powerful software will fulfill all your needs, but for those who like a challenge; a DLL is supplied, which allows you to create your own application.
Features
- oscilloscope:
- time base : 20ns to 100ms per division
- trigger source: CH1, CH2, EXT or free run
- trigger edge : rising or falling
- trigger level : full-screen adjustable
- step interpolation : linear or smoothed
- markers for : voltage and time/frequency
- input range : 5mV to 2V/division
- input sensitivity: 0.15mV display resolution
- auto set-up function and X10 option
- pre-trigger function
- readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency
- record length: 4K samples / channel
- real time sampling frequency: 1.25kHz to 50MHz
- sampling frequency for Repetitive signals: 1GHz
- spectrum analyser:
- frequency range : 0 .. 1.2kHz to 25MHz
- linear or logarithmic timescale
- operating principle : FFT (Fast Fourier Transform)
- FFT resolution : 2048 lines
- FFT input channel : CH1 or CH2
- zoom function
- markers for amplitude and frequency
- transient recorder:
- timescale: 20ms/Div to 2000s/Div
- max record time : 9.4hour/screen
- automatic storage of data
- automatic recording for more than 1 year
- max. number of samples : 100/s
- min. number of samples : 1 sample/20s
- markers for time and amplitude
- record and display of screens
Specifications
- general information:
- inputs: 2 channels, 1 external trigger input
- input impedance : 1 Mohm / 30pF
- bandwidth: DC to 60 MHz ±3dB
- maximum input voltage : 30V (AC + DC)
- input coupling : DC, AC and GND
- Supply from USB port (500mA)
- dimensions: 205 x 55 X 175 / 8.2 x 2.2 x 7"
- minimum system requirements:
- IBM compatible PC
- needs Win98SE or higher*
- SVGA display card (min. 800x600, 1024x768 recommended)
- mouse
- USB port 1.1 or 2.0 compatible
- CD Rom player
- includes:
- USB PC oscilloscope
- 2 x 60MHz scope probe (PROBE60S)
- USB cable
- software on CD
- getting started manual
- translations on CD
