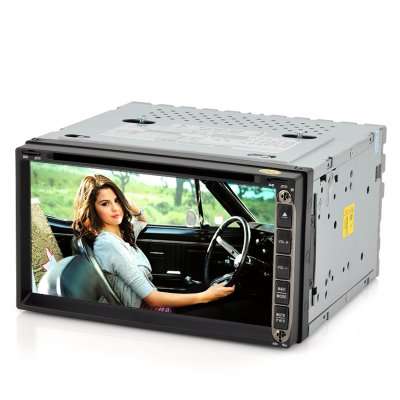

2 DIN Car DVD Player - 6.95 Inch Touch Screen, 3G, GPS, 1080p, Bluetooth, RDS, Windows CE 6.0

2 DIN Car DVD Player has a 6.95 Inch Touch Screen, 3G, GPS, Bluetooth, 1080p, RDS and Windows CE 6.0 is a the new way to race to the beats.

Manufacturer Specifications

General

• DIN Size: 2
• Media Player
• DVD Player
• FM Radio
• Bluetooth
• RDS
• 3G

Main System-WIN CE

• CPU: MTK 3360
• RAM: 256MB
• ROM: 128MB
• OS: Windows CE 6.0

GPS

• Receiver Module: SiRF
• Interface: Touch screen
• GUI interface: YES - 3D type
• Frequency: 1.575.42GHz
• C/A Code: 1.023 MHz
• Tracking Sensitivity: -159dBm
• Position Sensitivity: 5.0m CEP
• Data Update Rate: 1Hz
• Recapture Time: 0.1s
• Cold Status: 35s
• Warm Status: 32s
• Hot Status: 1s
• Maximum Position Altitude: 18000M
• Maximum Speed Rate: 500m/s
• Speed Rate: 0.1m/s
• Built-in Antenna Type: External Power Source Porcelain Antenna
• Built-in Antenna Current: 15mA
• Built-in Antenna Voltage: 3.3V
• Built-in Antenna Gain: 27dB
• Maps: Via Micro SD card

Internet information

• 3G: Supports 3G WCDMA

Display

• Screen: 6.95 Inch TFT LCD
• Resolution: 800 x 480 RGB
• Video Systems: PAL, NTSC, SECAM, AUTO

Disc Information

• Region Free (Also known as region zero or no region)
• DVD-R, DVE-RW, DVD+R, DVD+RW, CD-R, CD-RW, MP3, WMA, HDCD, SVCD, VCD, CD-DA

Audio Information

• Max Audio Output: 45W x 4
• Signal-to-noise ratio (SNR): >55dB (User Adjustable EQ: Bass, Treble, Balance and Fade)

AM/FM Radio Tuner Information

• AM Frequency Range: 522 to 1620KHz (Worldwide)
• FM Tuning Range: 87.5 to 108.0MHz (Worldwide)
• RDS System

Bluetooth

• Pair With Mobile Phone - Then Use Touch Screen Interface
• Dial, Answer, Stop Call
• Volume Control
• Touch Screen Keypad

Ports

• DVD disc slot
• 2x Micro SD card: up to 8GB
• MIC
• RESET
• Radio Antenna Input
• USB
• GPS Antenna Input
• ACC
• GND
• BRAKE
• KEY 1
• KEY 2
• AMP-VCC
• LL
• BATTERY
• BACK
• TX-OUT
• ANT
• Speaker RR out + and –
• Speaker RL out + and –
• Speaker FR out + and –
• Speaker FL out + and –
• SPDIF
• SUBWOOFER
• CE
• 2x VIDEO OUT
• FRONT R OUT
• FRONT L OUT
• REAR-R
• REAR-L
• CCD-AUX
• IR Receiver
• Remote Control

Languages

• English, Chinese (Simplified), Chinese (Traditional)

Media Formats

• Video: MEPG, AVI, RMVB, ASF, WMV, MP4, MKV, OGM, APE, FLV, 1080p
• Audio: MP3, WAV, APE
• Picture: JPG, GIF

Dimensions

• Main Product Dimensions: 171x179x102mm (L x W x D)
• Main Product Weight: 1878g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Product Notes

• This model is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. Any software installation you undertake should be performed or supervised by a professional.
• 3G was tested with the following Huawei dongles: MU509 (LGA Module), E1820, E1782, E1750, E230, E1550, E180

Package Contents

• Car DVD Player
• Remote Control
• GPS Antenna
• Stylus
• Free 4GB Micro SD Card
• Power Cables
• User Manual
• Mounting Frame
• Screws
• 2x Iron
