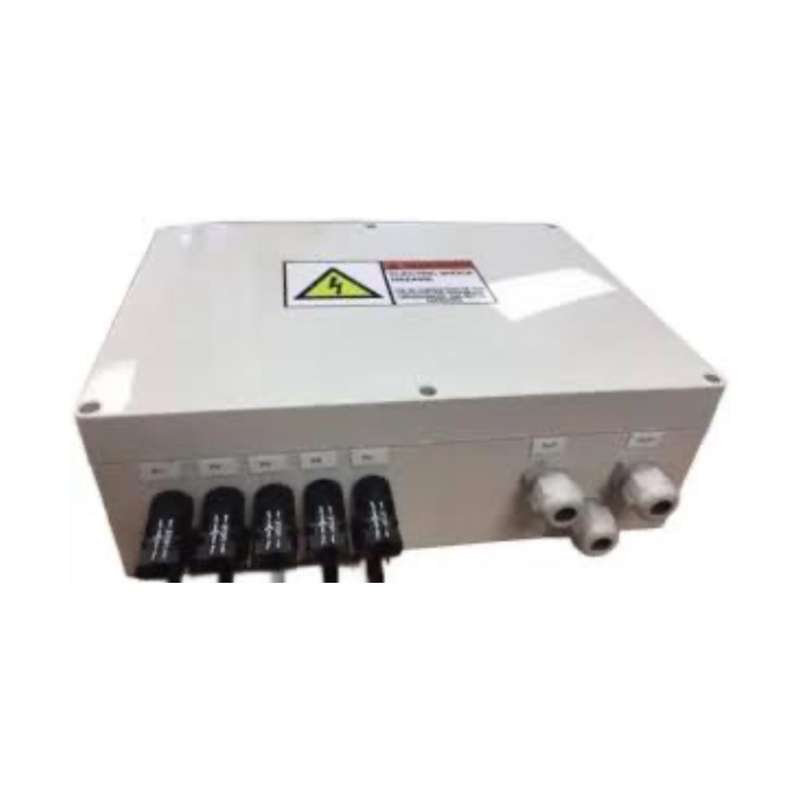

The String Combiner Box SOL-I-IS-CB22 from INFINISOLAR offers an advanced solution for solar power systems requiring flexible string configuration. Featuring a unique design that accepts two input strings and outputs two combined strings, this combiner box is ideal for complex solar arrays that need efficient string management. Equipped with integrated surge protection, it safeguards your solar installation against voltage peaks, ensuring enhanced system longevity and safety.
Rated for up to 600V DC, this box is compatible with industry-standard MC4 connectors, enabling quick, secure connections and easy installation. The SOL-I-IS-CB22's rugged, weatherproof enclosure protects its components from harsh outdoor elements, making it a dependable choice for both residential and commercial solar setups.
Optimize your solar energy system with this robust, versatile string combiner box that delivers reliable performance while simplifying your wiring needs.
Feature | Description |
---|---|
String Configuration | 2 strings input and 2 strings output for flexible array setups |
Voltage Rating | Suitable for systems up to 600V DC |
Connector Type | Compatible with MC4 connectors for secure, standardized connection |
Surge Protection | Built-in surge protection to prevent damage from voltage spikes |
Weather-resistant Housing | Durable enclosure designed for outdoor use |
Easy Installation | Compact design with secure locking connectors |
Specification | Details |
---|---|
Model | SOL-I-IS-CB22 |
Maximum Voltage | 600V DC |
Number of Inputs | 2 inputs |
Number of Outputs | 2 outputs |
Connector Type | MC4 |
Surge Protection Rating | Included (model-specific specs) |
Operating Temperature | -40°C to +85°C |
Housing Material | UV-resistant plastic |
Dimensions | Approximately 130mm x 100mm x 60mm |
Weight | ~0.4 kg |
