2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver(Black) 2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver(Black) 2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver(Black) 2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver(Black) 2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver(Black)
2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver(Black) 2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver(Black) 2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver(Black) 2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver(Black) 2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver(Black)

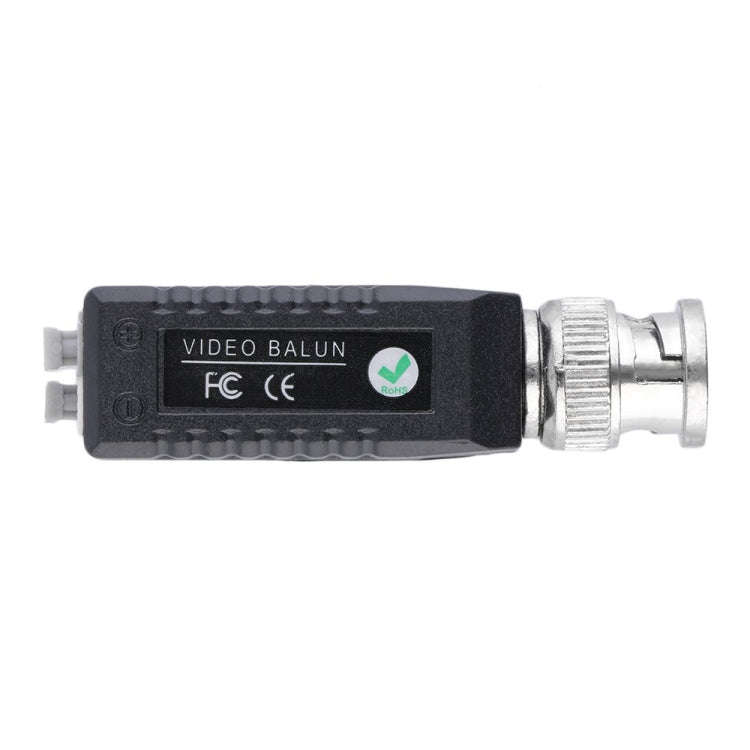

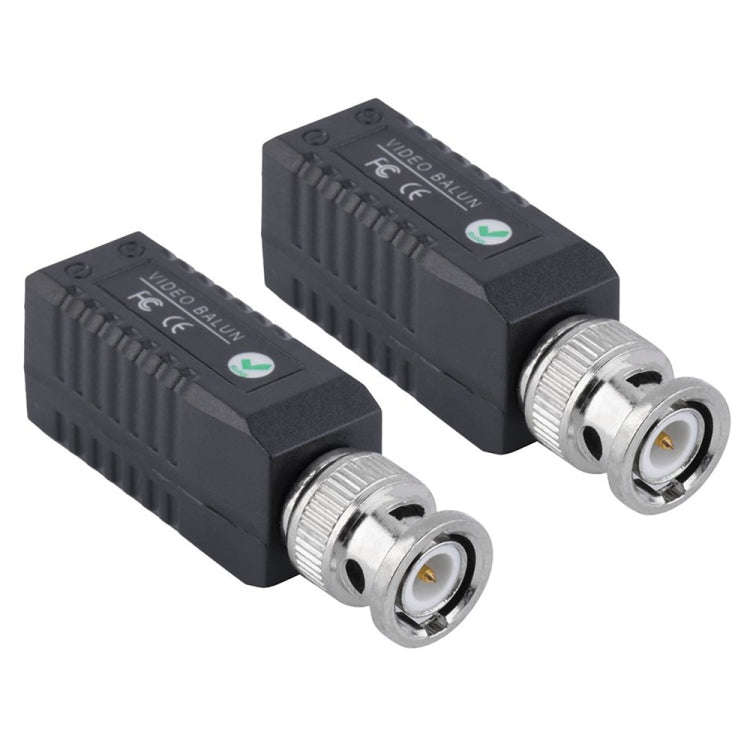

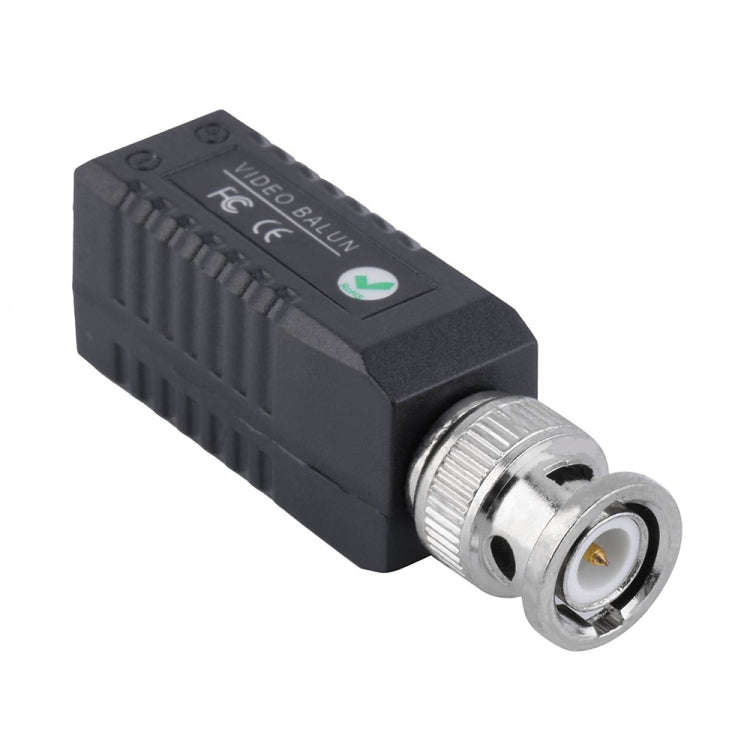

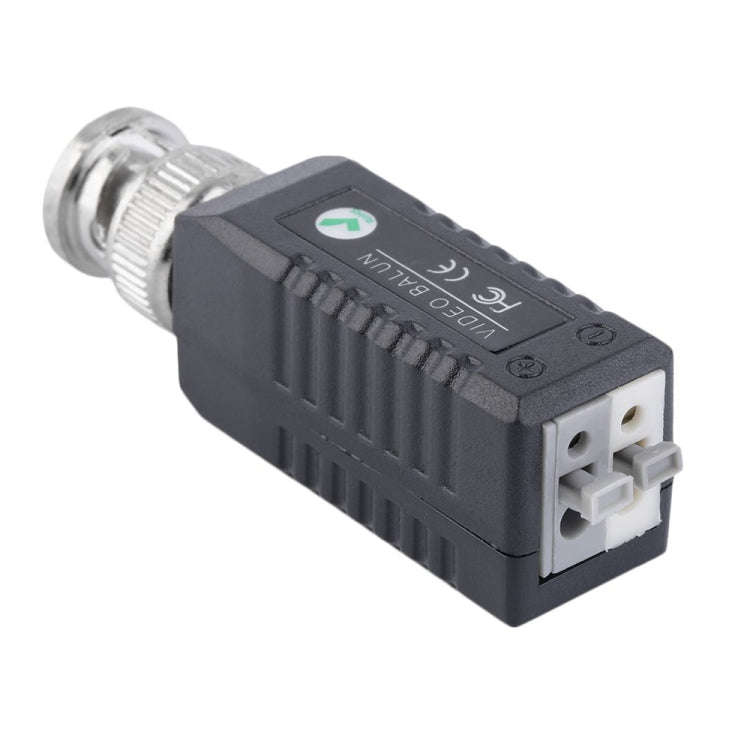

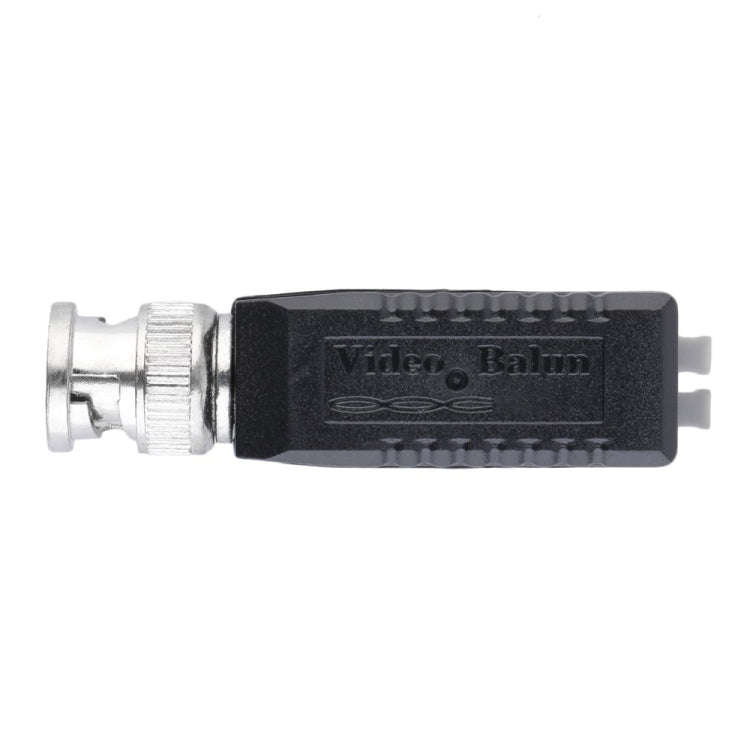

2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver(Black)

New 10 available
R249.30
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
S-CVB-0108
Bob Shop ID
637515767
Features:
1. Full-motion CCTV video at distances up to 330m when used with any passive transceiver
2. Up to 1500 m with any active UTP video receiver
3. Press-Fit terminal block
4. NTSC, PAL, and SECAM video fornats
5. No power required
6. 60 dB crosstalk and noise immunity
7. Compact size and easy installation
8. Built-in transient suppression protection

Specifications:
1. Frequency response: DC to 8MHz
2. Attenuation: 0.5 dB typ
3. CMRR: 60dB
4. Connectors: Male BNC and Press-Fit terminal blocks
5. Impedance: BNC: 75 ohms, Terminal:100 ohms
6. Working Temperature: -10 degree C to +70 degree C
7. Storage Temperature: -30 degree C to +70 degree C
8. Humidity: 0 to 95%
9. Dimension: 39x16x19 mm (excluding connectors)
