A terminal block is a type of insulated electrical connector that connects or secures two or more wires together. They enable the safe connection of wires between circuits. Terminal blocks, also known as terminal strips or connection blocks are used in a wide range of industrial, commercial, and domestic applications. Terminal blocks come in a range of shapes, sizes, and ratings, but always terminate a single wire (single pole) and are never multi-pole.

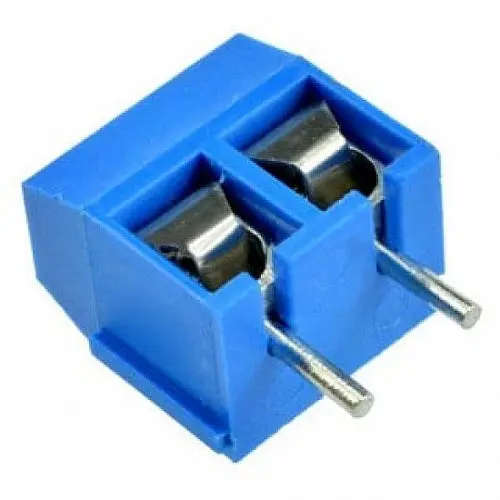

2 Pin Screw Terminal Block Connector Electrical Properties:
Max Rated voltage: 250V
Max Rated current: 10A
Contact resistance: 20m
Insulation resistance: 5000M/1000V
Withstanding voltage: AC1500V/1Min
2 Pin Screw Terminal Block Connector Mechanical Properties:
Temp. Range: -30~+120
Max Soldering: +250 for 5 Sec
Torque: 0.5Nm
2 Pin Screw Terminal Block Connector Specification:
Material: Screws: M2.5 steel Zinc plated
Contact: phosphor bronze Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0
Pitch: 5.08mm
Poles: 2P
Color: Blue/Green
2 Pin Screw Terminal Block Connector Datasheet
