Sold

2-Pole DIN Rail DC 1000V 40KA SPD SURGE PROTECTOR

New 5 were available
Indicative market price: R590.00
R22.00 minimum increment
R225.00
Shipping
Free shipping is available from YY SHOP for all orders above R2,000.00, using one of our trusted couriers.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection

Product details

Condition
New
Location
South Africa
Product code
LYBHQ-KG510
Bob Shop ID
591559311

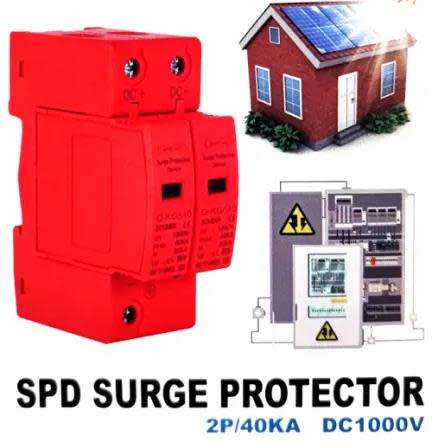

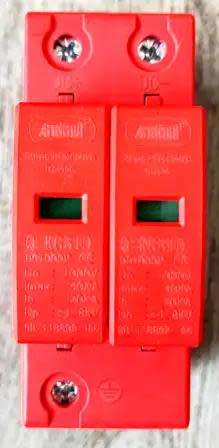

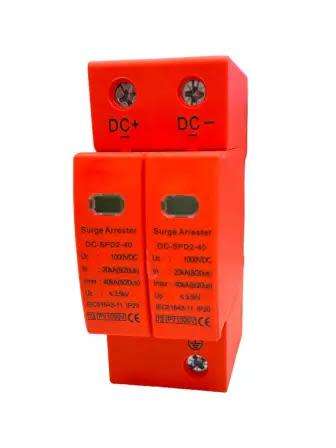

2-Pole DIN Rail DC 1000V 40KA SPD SURGE PROTECTOR


Maximum PV Voltage Ucpv: Less or equal 1000V

Short-Circuit Current rating Iscpv: 200A

Nominal discharge current : 20kA

MAXIMUM DISCHARGE CURRENT : 40KA

Voltage protection level Up: less or equal 4KV

Response time tA: 25ns

Range of operating temperatures (Tu): -140/+80 degree

Operating stage/ fault indication: green / red

Number of ports: 1

Cross-sectional area(min) : 1.5mm square meter solid / flexible

Cross-sectional area (max) : 35 mm square meter stranded / 25 mm square meter flexible

For mounting on : 35 mm DIN rail acc. to EN 60715

Enclosure material: thermoplastic

Place of installation: IndOor installation

Degree of protection: IP20

Capacity: 3 module(s), DIN 43880

AC Switching capacity: 250V / 0.5A

DC Switching capacity: 250V / 0.1 A ; 125 V / 0.2 A ; 75V / 0.5A

What's in the box

1 X Surge Protective Device 2P 1000V
