Features

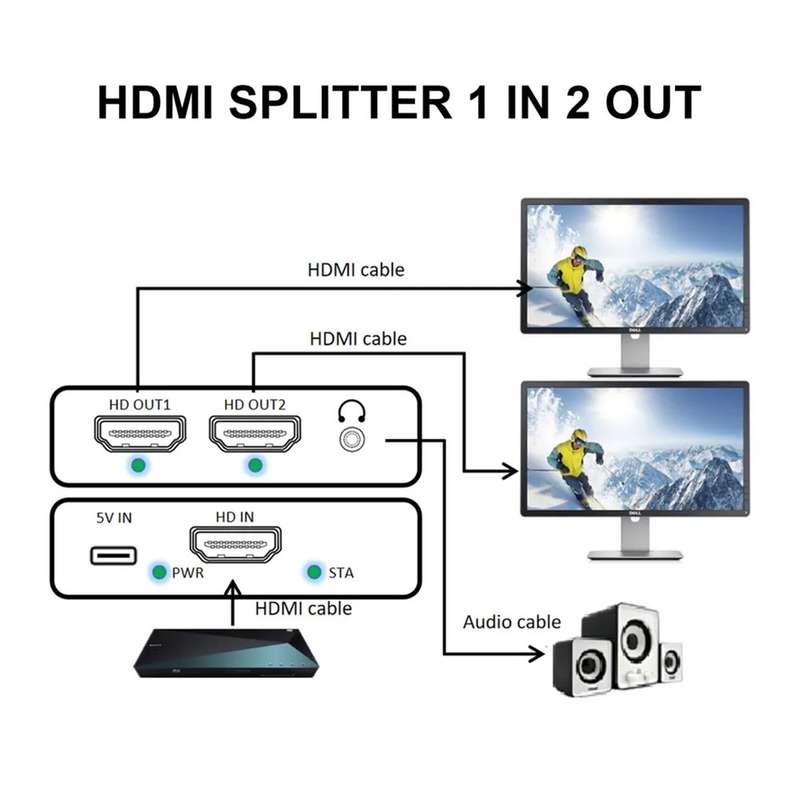

Supports one HD video source divided into two HD video signal outputs
Compliance with HDMI 2.0 standard, the max resolution up to 3840x2160 @60Hz video
Compliant with HDCP 2.2 standard, high-bandwidth digital content protection technology
Stereo audio output

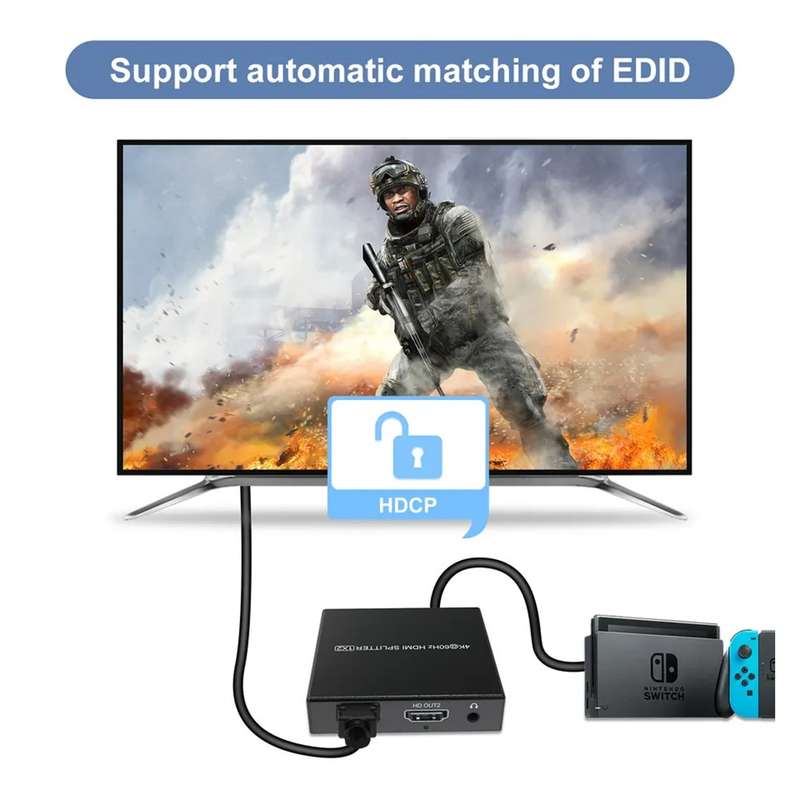

Support automatic matching of EDID, and automatic comparison during access, and output low-resolution EDID
Built-in automatic adjustment system creates images that are smooth, clear, and stable
Simple and convenient installation, plug and play, no setup required
Specifications
Video
Standards: HDMI 2.0
Maximum Pixel Clock: 600MHz
Maximum Data Rate: 18Gbps
Maximum Resolution: 3840x2160 @60Hz
Connector: HDMI-A
Impedance: 100
Recommended Maximum Input/Output Distance: Less than 5 meters @ 1920x1080 @60Hz
Other
Power Supply: DC 5V
Power Dissipation: Max. 2.5W
Operating Temperature: -5 °C ~ 70 °C
Operating Humidity: 5% ~ 90%
Dimensions: 64x62x14mm
