2 PORT HDMI SPLITTER - 1IN2OUTHDMI

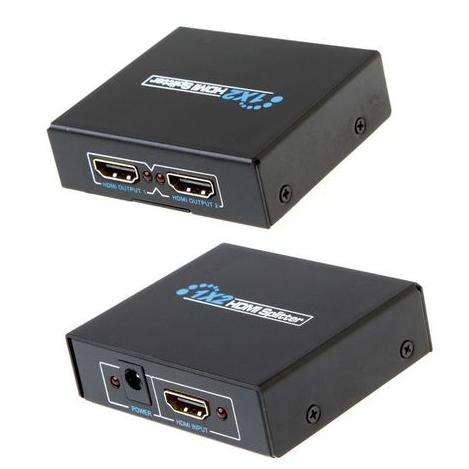

FY1409E 1 x 2 HDMI 4K x 2K Splitter
This 1 x 2 HDMI Splitter use a single HDMI source, accessing to multiple HDMI sinks
It allows one HDMI Device to be Split easily to four HDMI Compatible Monitors or Projectors
In addition,It can also be placed at the end of a long HDMI Cable to regenerate the HDMI Signal
The Resolution of this HDMI Splitter can be up to 3840 x 2160/30HZ
Features
Support HDMI 1.4b Version
Support 3D Video Format
Support High Resolution up to 3840 x 2160/30HZ
Support Highest Rate of 3.2 G and TMDS Clock can be up to 320 MHz
Support 8/10/12 Bit deep color
Support AWG26 HDMI Standard Cable: Input up to 15 Meters, Output up to 25 meters
(when the Resolution is 4K, Input up to 12 Meters, Output up to 15 Meters)
Support one single HDMI source accessing to multiple HDMI sinks
The source can be DVD Player, A/V receiver, set top box and etc.
5V/2A Power Adapter
Specifications:
Specifications:
HDMI Version: HDMI 1.4b
HDMI Resolution: Up to 3840 x 2160/30Hz
Support Video Format: 8/10/12 bit deep color
Support Audio Format: DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Max Bandwidth: 320MHz
Max Band Rate: 3.2Gbps
Input Cable Distance: (1080p resolution) =15m, (4K resolution)=12m AWG26 HDMI standard cable
Output Cable Distance: (1080p resolution) =25m, (4K resolution)=15m AWG26 HDMI standard cable
Max Working Current: 500mA
Power Adapter Format: Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/2A
Operating Temperature Range: (-15 to +55?)
Dimension (L x W x H): 178x66x20 (mm)
Weight: 220g
Connection and Operation
Connect the HD source to the Splitter input with one HDMI Cable
Connect the splitter output to the displays with 4 HDMI Cables
Connect 5V/2A Power Adapter to the Splitter
Package Include
HDMI Splitter
Power Adapter
User Manual
