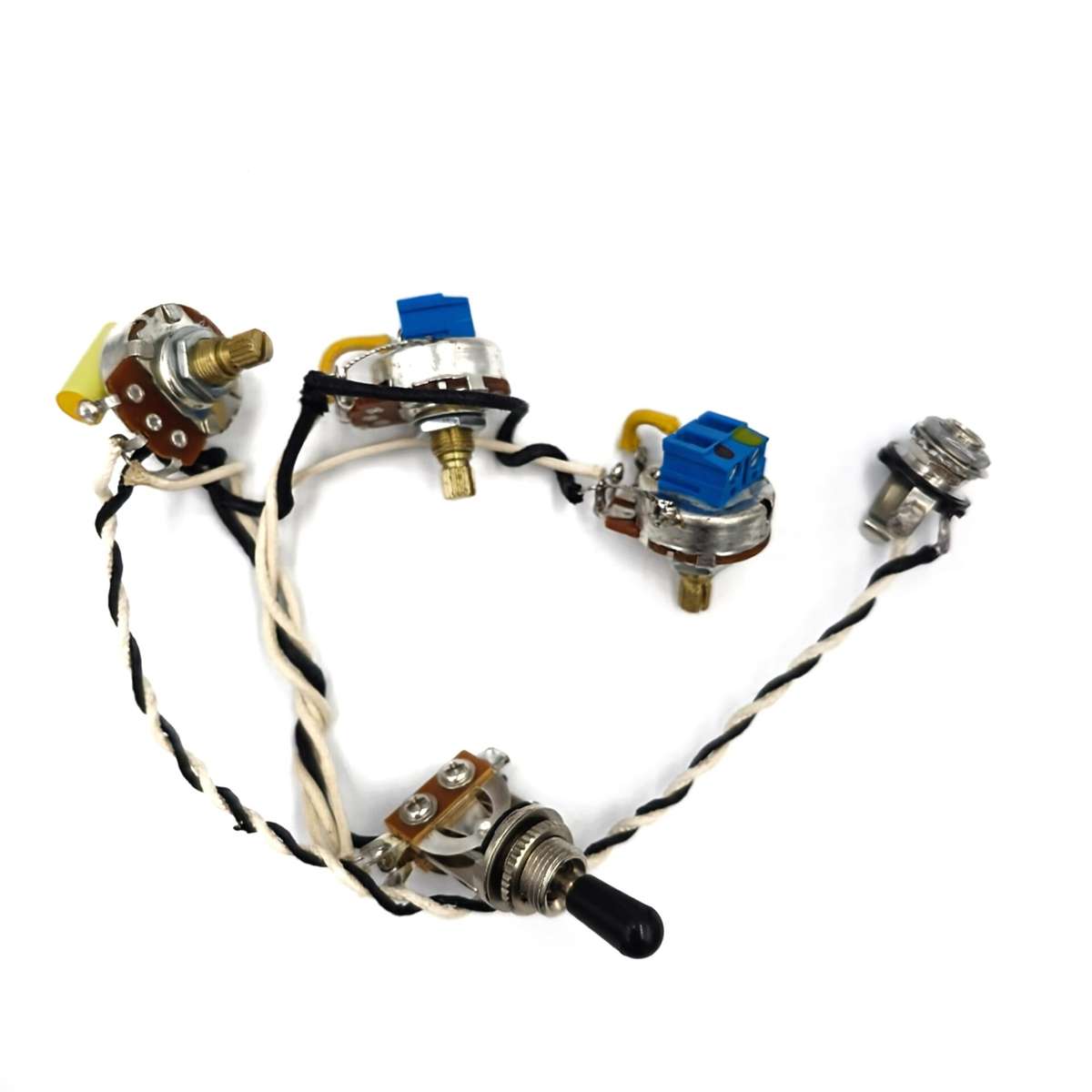

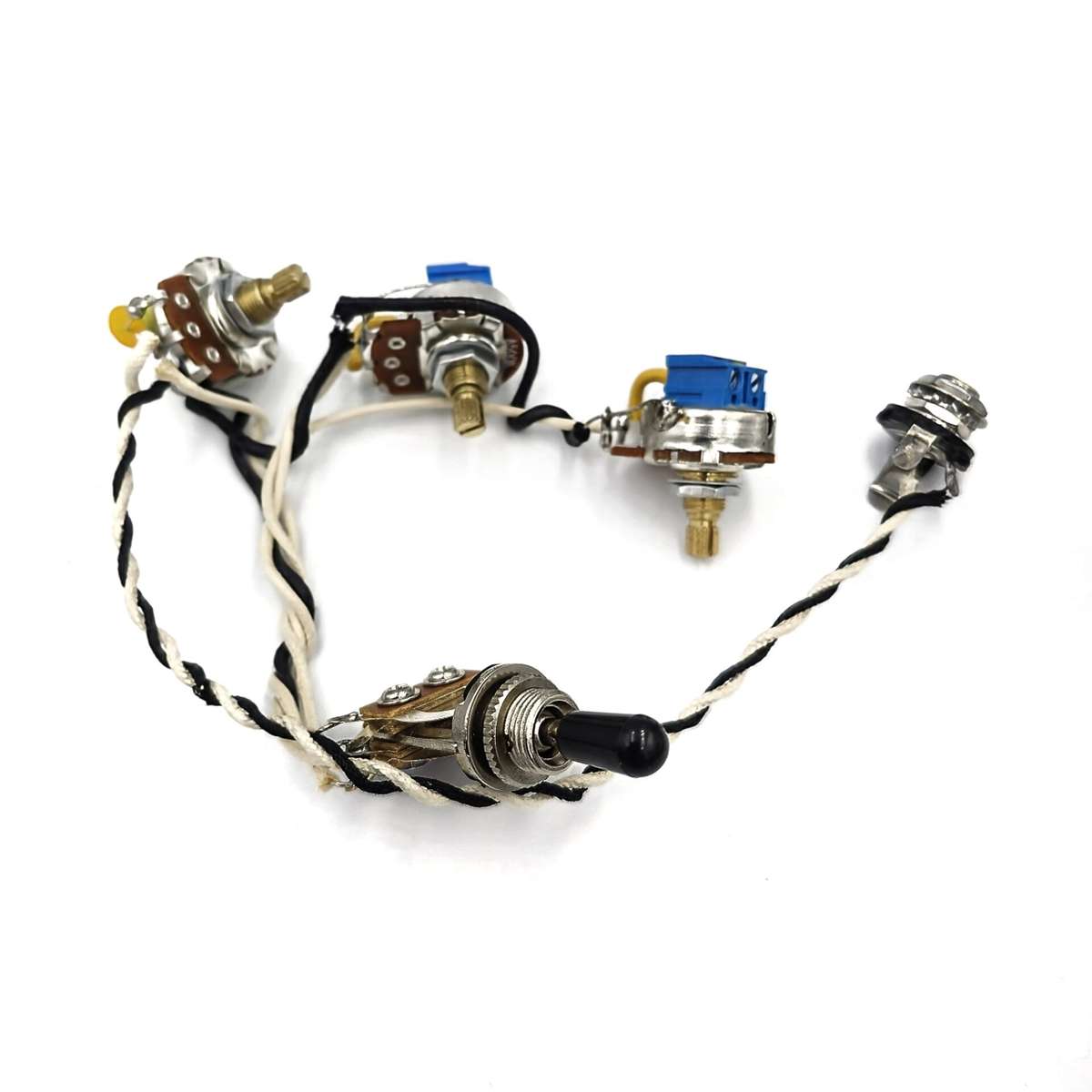

2 Volume, 1 tone with 3 way toggle switch (Solderless)

A 2 volume, 1 tone electronic assembly that has been pre-wired with vintage spec cloth wire, full size pots with brass shaft (flat bottom or concave - which ever we have available at the time), High quality output jack soldered to twisted cloth wires, we twist them so the ground acts as a shield to reduce noise. This harness also includes a 3 way toggle switch.

- A500K Volume for Neck Pickup

- A500K Volume for Bridge Pickup

- A500K Tone

- Output Jack
- 3 way toggle

- 0.047uf Capacitor

Connect your hot wire from Neck pickup to the terminal of the connector on top of 1st Volume pot that has been marked with a yellow dot, and the hot of your Bridge pickup to the terminal of the connector on top of the 2nd Volume pot with the yellow dot. Grounds from your pickups go in the terminals with a black dot. You should also have an existing ground wire coming from your guitars bridge, connect this wire to any of the ground connections (the pots and switch are all grounded together - it doesn't matter which grounds are connected to which ground terminal)

We offer this wiring harness in a solder-in option too. email us with your request or if you do not find the wiring harness you are looking for on our site.

We can also change the value of the Pots and Capacitor to your preference if you like, let us know. A250k/B250K/A500K/B500K pots are available, as well as 0.022uf or 0.047uf Capacitor.

We make these wiring harnesses per order after payment clears, please add an extra 24 - 48 hours to the lead time of your order.
