2-Way Satellite Diplexer RF and LNB Signal Combiner / LNB Splitter for DSTV - 0.05kg

2-Way Satellite/TV Diplexer RF and LNB Signal Combiner / LNB Splitter for DSTV Decoder Model 5s / Explora 3A and newer models without RF Ports

The diplexer is used on newer decoders with no RF output ports to run the DSTV / Multichoice Decoder heartbeat via the SmartLNB using a single cable. Actual product design may be different than website picture but product will provide the same functions -VHF/UHF and Sattellite input and one combined output.

Please see the DSTV Installation Diagrams & User Bands page for more information on installation.

The satellite/TV antenna diplexer combines signals from your satellite dish and VHF/UHF TV antenna into one coaxial cable output. Use a second diplexer to split the signals for connection to satellite or TV antenna jacks on your receiver.

Functions

• Also used for Multichoice Explora / PVR installations, when connecting two decoders in dual view.
• Eliminates the need to run a separate heartbeat cable between the two decoders.

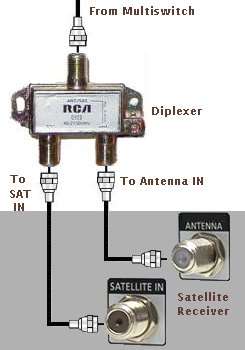

Example Diagram, Actual Diplexer Ports may be all on one side or multiple sides as indicated on product

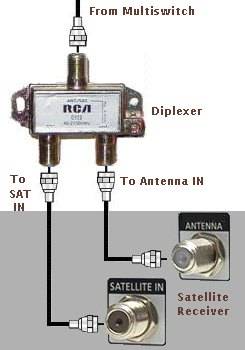

Sample Installation Diagram for DSTV Diplexer

The Diplexer is used with DSTV Models from 2018 and newer such as Explora 2 & 3 and Single View Decoder 5s/6s and newer as below to work in conjunction with older decoder models in a XtraView Setup.

Multichoice DStv Explora 3A Decoder With 1 Terabyte Harddrive

Multichoice HD DSTV Single View Decoder 6S (NO RCA and RF Ports, HDMI Only)
