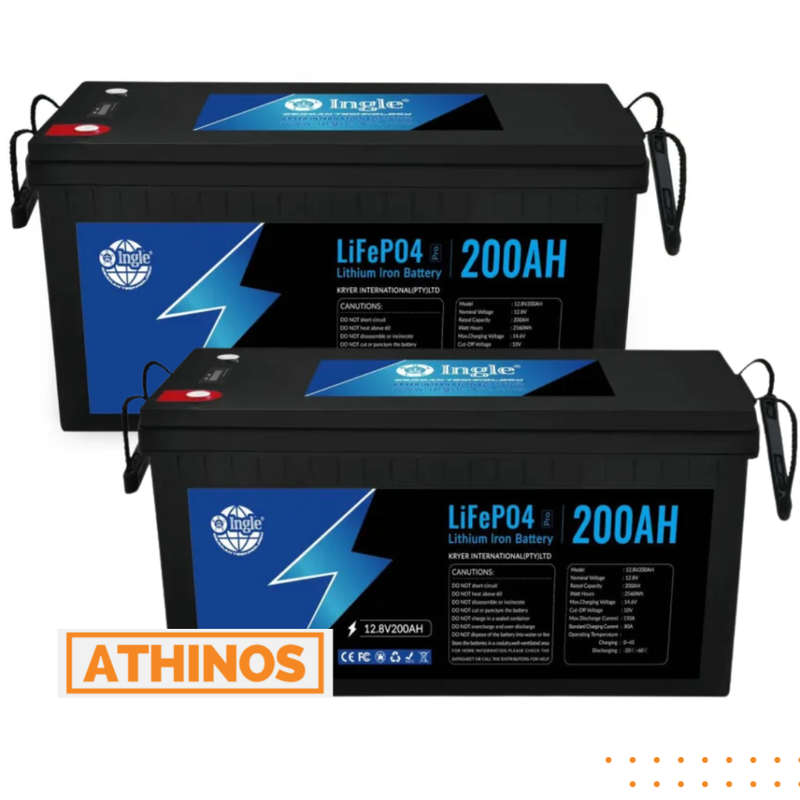

2 x 12.8V 200AH LiFeP04 ingle Lithium Iron Battery

12V 200Ah LiFePo4 Single Battery Module is a Lead-Acid/AGM /Gel batter battery replacement.

SPECIFICATIONS
12V 200Ah LiFePo4 Single Battery Module
Product Type Wall Mountable 12V 200Ah LiFePo4 Single Battery Module
Rated Capacity 2.56kwh
Nominal Voltage 12.8V
Charge cut-off voltage 14.6v
Discharge cut-off voltage 10v
Discharge current 200A
Design Life: -/+ 3-5 Years
Charging working temperature 0-45C
Dimensions (LxWxH): 522 X 240 X 222 mm
Weight: Approx. 16.35kg
Can Be Connected in Series & Parallel
4 series 4 parallel
3000 cycles @ 50% Depth Of Discharge (DOD)

These units can be connected in parallel (12V 400AH) or series (24V 200AH).

What is included in the Combo
2 x 12.8V 200AH 2.56Kwh Lithium Battery - Ingle

Warranty: 24 Months Repair Warranty

Warranty Condition:

A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
