2 X 15W Digital Power PAM8610 Class D Audio Amplifier Board

2 X 15W DIGITAL POWER PAM 8610 CLASS D AUDIO AMPLIFIER BOARD

Product information

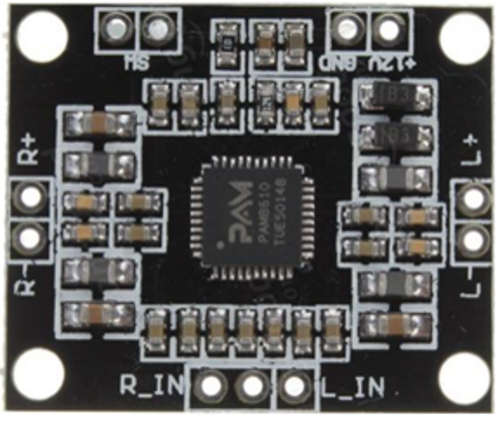

This is a 2 x 15W Class D (PWM) amplifier module using the new PAM8610 IC. The module is intended to be used where strong sound reinforcement is required in a small package.

Specifications
Power supply: 12V DC @ 2A (max)
Output power into 4 ohm: 2 x 15 W
Output power into 8 ohm: 2 x 10 W
Frequency response: 20 Hz-15 KHz
Harmonic distortion: <0.1%
SNR: >90dB
Efficiency: >90%
Module size: 28mm x 22mm x 2.5mm

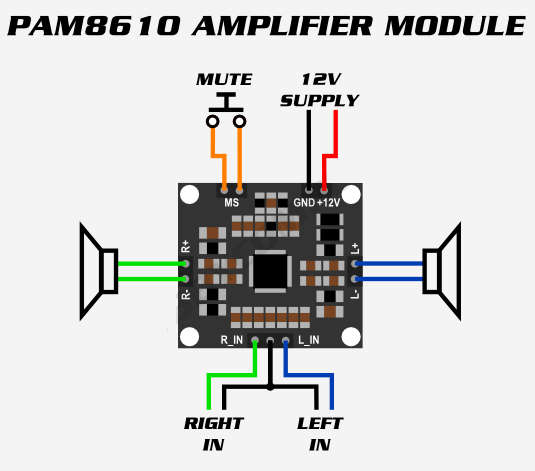

Connection Information

1. Observe the correct polarity for connecting power to the module as reversing the polarity will damage the IC.
2. Use shielded wire for connecting inputs to the IC to prevent interference.
3. Do not try to connect the outputs in BTL (Bridge Tied Load) mode as they are completely independent and doing so will damage the IC.

Package Includes
1 x 2 Channel 3W Digital Power PAM8403 Class D Audio Amplifier Board
