| Item number | UV-5R |
| General | |
| Frequency Range | 65-108MHz(FM Receive only) |
| 144-146MHZ / 430-440 MHZ (TX/RX) | |
| Channel No. | 128 |
| Frequency Stability | 2.5ppm |
| Antenna | High gain DualBand antenna |
| Antenna Impedance | 50 |
| Operating Voltage | DC 7.4V |
| Mode of operation | Simple or semi-duplex |
| DimensionW x H x D | 100 x 52 x 32 mm |
| Weight | 250gincluding battery, antenna |
| Transmitter | |
| Output power | 4W / 1W (Max 5W) |
| Modulation Mode | 16kF3E / 11kF3E |
| Maximum deviation | 5kHz(Wide) / 2.5kHz(Narrow) |
| Spurious Radiation | 7W |
| Adjacent Ch. power | -65dB(Wide) / -60dB(Narrow) |
| Pre-emphasis characteristics | 6dB |
| Current | 1.6A(5W) |
| CTCSS/DCS deviation | 0.50.1kHz(Wide) / 0.30.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mv |
| Intermediation distortion | 10% |
Whats in the Box:

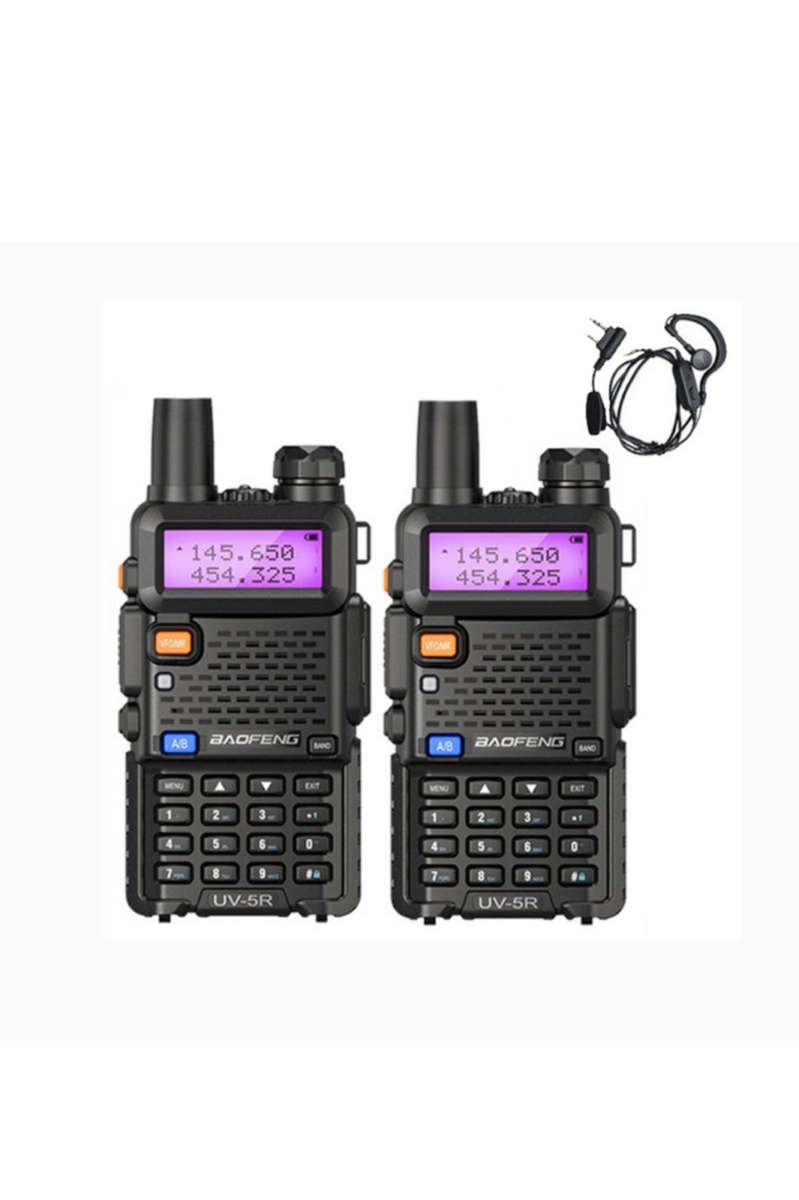

-2 x Baofeng UV-5R Dual Band Walkie Talkie Black
-2 x 7.4V 1800mah Original Baofeng Li-ion Battery Pack
-2 x Antenna
-2 x Hand Strap
-2 x Belt Clip
-2 x ENG Manual
-2 x Desktop Charger with USB Connector Male
-2 x PTT Earpiece for free
