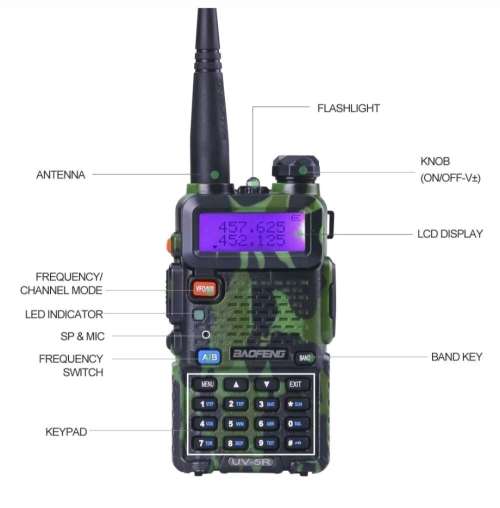

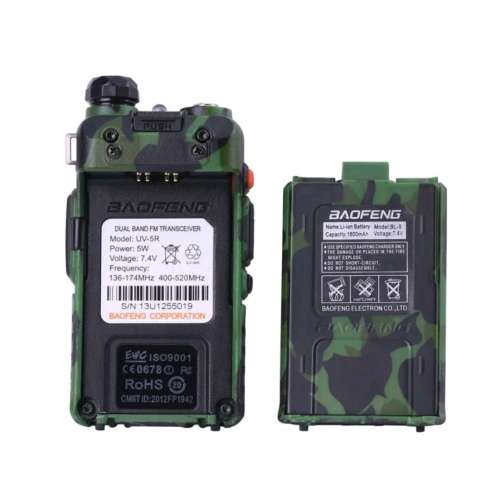

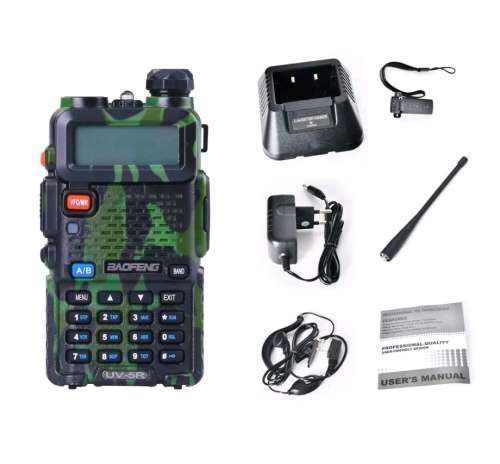

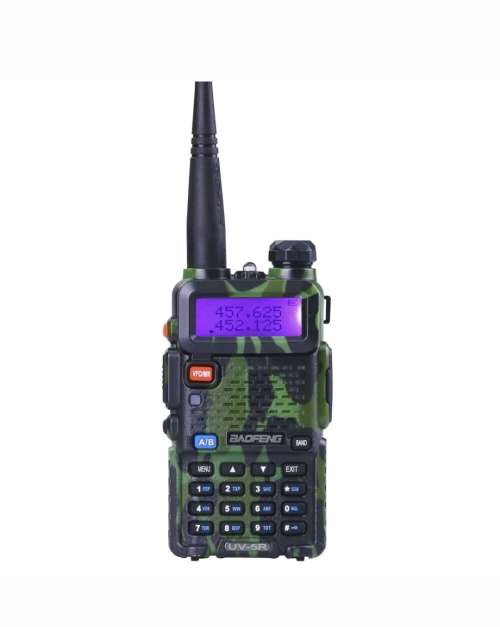

2 x UV-5R (VHF136-174 & UHF 400-520Mhz)2 x 7.4V 1800mah Li-ion Battery Pack2 x dual band Antenna2 x Belt Clip2 X ear hook earphone2 x English user Manual2 x Desktop Charger ( 100V ~ 240V US/EU/UK/AU plug )Features/FunctionsDual-band handheld transceiver with display function menu on the display â¿¿LEDâ¿Commercial FM radio receiver (65MHz-108MHz)Built-in LED flashlightDTMF encodedBuilt-in RX CTCSS/DCS scanFunction VOXAlarm functionBroadband/narrowband selectableFunction beep on the keyboardDual Watch/dual ReceptionCrossband reception/transmissionFunction OFFSETTone end of transmissionBattery saving function SAVEProgrammable by PCBuilt-in key lockTechnical ParametersGENERAL Frequency range 65-108Mhz(only for FM)VHF:136-174Mhz(Rx/Tx) UHF:400-520(Rx/Tx)Memory channels Up to 128 channelsFrequency stability 2.5ppmFrequency step 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHzAntenna impedance 50ΩOperating temperature -4οF to +140οFSupply voltage Rechargeable Lithium-Ion mAh7.4V/1800Consumption in standby ⿤75mAConsumption in reception 380mAConsumption in transmission ⿤1.4AMode of operation Simplex or semi-duplexDuty cycle 03/03/54 min.(Rx/Tx/Standby)Dimensions 58mm*110mm*32mmWeight 130g(approximate)TRANSMITTER RF power 4W/1WType of modulation FMEmission class 16KΦF3E/11KΦF3E(W/N)Maximum deviation ⿤±5kHz/⿤±2.5kHz(W/N)Spurious emissions <-60dBRECEIVER Receiver sensitivity 0.2μV(at 12dB SINAD)Intermodulation 60dBAudio output 1000mWAdjacent channel selectivity 65/60dBNote:All specification shown are subject to change without notice
