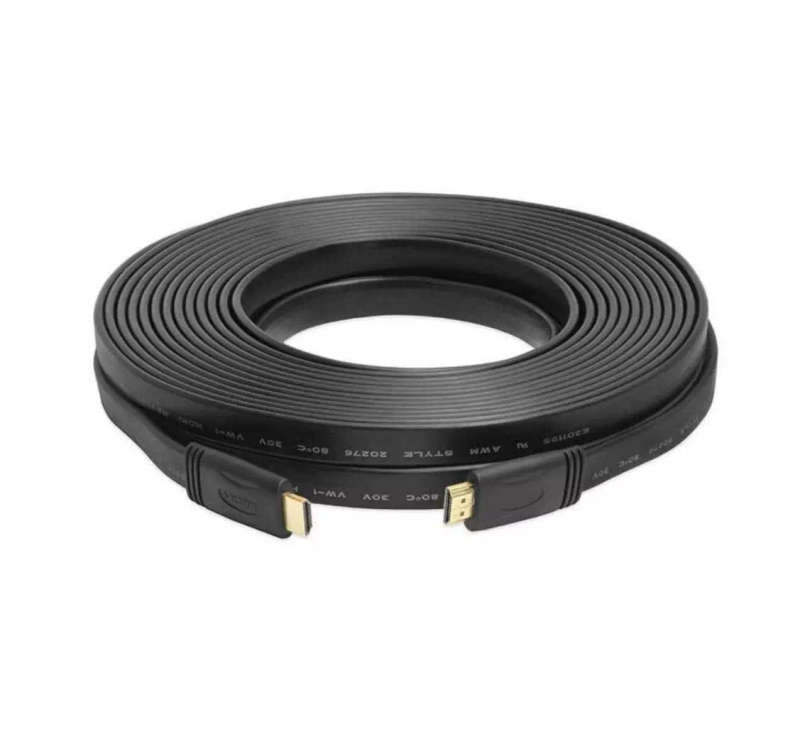

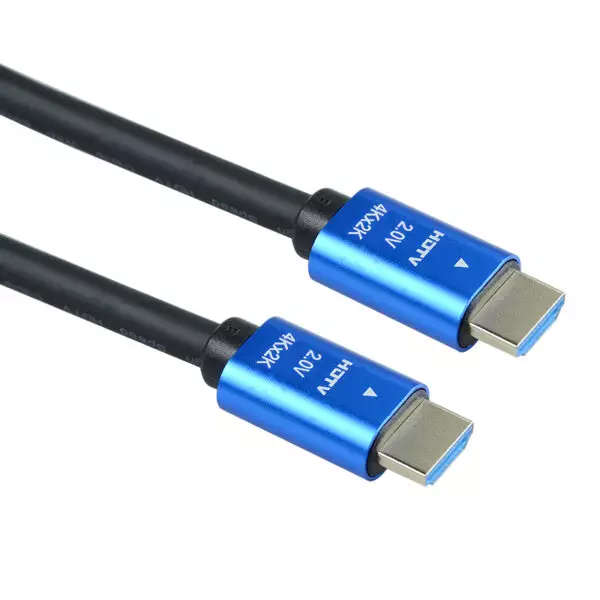

20 Meter 4k HDMI Cable v2.0 - High Speed, Premium HDMI Cable, Supports up to 4K (3840x2160) resolutions, Ethernet Channel
HDMI V2.0, which is backwards compatible with earlier versions of the HDMI specification v1.4,v1.3,v1.2 etc, significantly increases bandwidth up to 18Gbps and adds key enhancements to support market requirements for enhancing the consumer video and audio experience.
Tested 100% with all common HDMI sources such as Multichoice DSTV Explora / HDPVR, Sony Playstation Consoles, Microsoft Xbox Consoles, DVD players and Blu-ray Players.
HDMI v1.4 vs v2.0 vs 2.1 Comparison Video
?v=_93_KNfkP4M
The cable functions uni-directional due to Equalizer built-in and must be connected as per cable indication from Input --> Output side marked on the cable.
This Cable is For:
- Any Device with an HDMI Interface (Backwards Compatible to HDMI V1.0)
- To Connect any BLU-RAY / HD DVD / Multichoice HDPVR to a display or Digital Receiver to provide Audio / Video travelling via the same cable for HD Video/Audio
- Connect your XBOX 360 / PS3 Gaming Console to a display / digital receiver with a HDMI interface (Provides > 1080p resolutions, specs below)
- To connect current DVD players with a HDMI interface to a display / digital receiver to allow upscaling of normal DVD resolution to 1080p
New HDMI v2.0 features
HDMI Ethernet Channel
Audio Return Channel
3D (For PC's rendering 2 x 1080p images to produce a 3D Effect)
4K Resolution Support - 4096 x 2160 pixels
Content Type
Additional Color Spaces
HDMI Ethernet Channel technology consolidates video, audio, and data streams into a single HDMI cable, combining the unmatched signal quality and convenience of HDMI connectivity with the power and flexibility of home entertainment networking. It incorporates a dedicated data channel into the HDMI link, enabling high-speed, bi-directional networking at up to 100 Mb/sec.
Specifications & Features
Connector Type: HDMI male to HDMI male
Connector: Oxygen Free Copper
Connector Finish: Gold, Superior Signal transfer
Gauge: 24AWG
# of conductors: 19
Shielding level: Triple
Shielding type: EMI
Supported Resolutions: Up to 4K resolutions (Exceeds 1080p resolution by more than 2x), 4096 pixels wide by 2160 pixels high.
HDMI Certified: Yes
HDMI Spec: v2.0
HDCP Compliant: Yes
CEC Compliant: Yes
ROHS Compliant: Yes
1.3 Device Compatible: Yes
Supports DVD Audio: Yes
Supports SACD: Yes
Supports TrueHD & DTS-HD: Yes
Overall Diameter: 11 mm
UL Specs
CL2 (In-Wall): No
Voltage Rating: 30V
Temperature Rating: 80° C
A technical guide on how to choose HDMI Cables & Equipment is available at Choosing the Correct HDMI Cables and HD Distribution Equipment. If you are not sure which items to purchase please send us an e-mail with requirements using the Contact form on the left under the Information section and we will select the correct products for you based on your requirements. To extend HDMI cables use the HDMI Coupler / Socket - Female to Female (Gold Plated Connectors)
Some sources / players do not produce an equalized HDMI signal and for coupling or extending HDMI Cable lengths beyond 15 meters we recommend that a HDMI Active Equalizer Extender / Repeater be used rather than a HDMI Coupler.
For lengths exceeding 25 meters and with conduit cable space restrictions we recommend either of the following products HDMI Extender over CAT6
HDMI CABLES AND EQUIPMENT SHOULD NEVER BE CONNECTED / DISCONNECTED WHILE YOUR EQUIPMENT IS POWERED ON SINCE THE HDMI PORT CARRIES A LOW VOLTAGE BUT CAN CAUSE DAMAGE TO EQUIPMENT WHEN PLUGGED / UNPLUGGED WHILE POWERED ON.
Please check the HDMI Standards & Specifications section on our website to check what the different versions in HDMI offers regarding picture, sound quality, resolution, colour quality etc.
Please check the Home Entertainment Wiring Diagram section on our website for common uses of this cable and for alternative wiring options.
