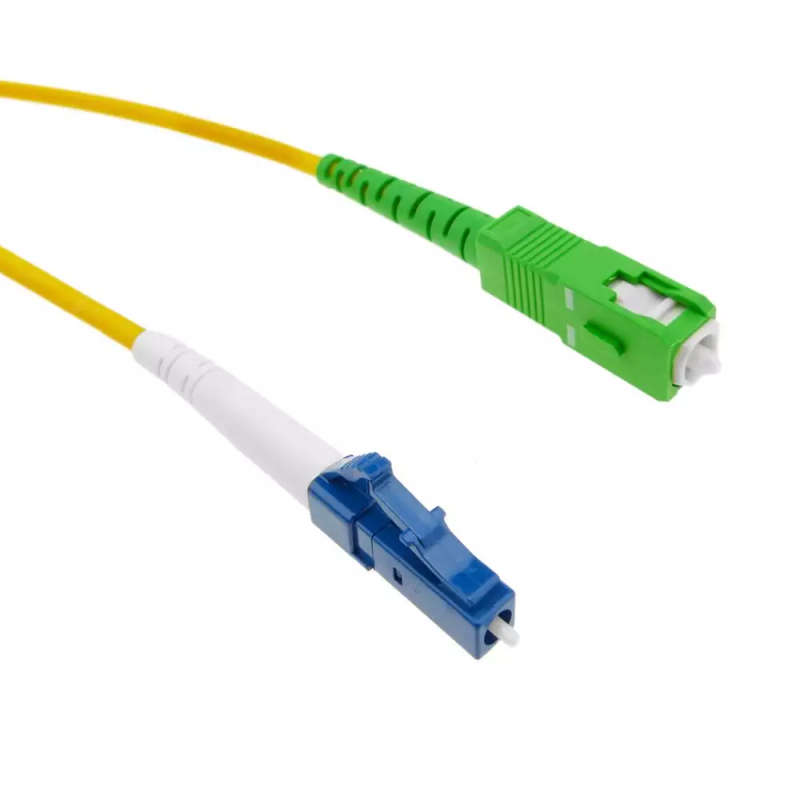

20 Meter Simplex Single Mode APC SC to LC Fiber Cable | Fiber Cable for Router

20 Meter Simplex Single Mode APC SC to LC Fiber Cable | Fiber Cable for Router

New 29 available
R239.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
20m_Simplex_SM_APC_LC_to_SC_Fiber_Cable_for_Router
Bob Shop ID
592120430

20 Meter Simplex Single Mode APC SC to LC Fiber Cable | Fiber Cable for Router

Single mode fiber optic patch cables come with a 9 micron diameter glass core. With the cladding layer, they are 125 micron, and with the buffer layer they are 250 micron. To prevent excessive loss (attenuation), you should ensure that you only connect single mode cables to other single mode fibers already in your system.

Please see our guide at Fiber Optic Cables & SFP Compatibility for more information.

Specifications:

  • Indoor or Outdoor Installation
  • Diameter  : 3mm
  • Simplex (Single Fiber Cable and Connector Single Head on each side)
  • LC UPC -  SC APC
  • G.657A2, 2.0x3.0mm

Tensile Strength

Always take care when installing fiber cables to ensure not to break the fiber inside the cable by over-bending or twisting cables. These cables strengthened by the 2*0.45mm steel wires provide more than enough pulling strength to easily install these cables in difficult environments without breaking the cable.

G.657A2 Bend Ratio vs Other Specifications

Fibre Type  Bending RadiiAttenuation Increase (db)
G652D100 turns on 25mm mandrel at 1310/1550nm 0.03
G652D100 turns on 30mm mandrel at 1625nm 0.1
G657A210 turns on 15mm mandrel at 1550nm 0.05
G657A210 turns on 15mm mandrel at 1625nm 0.1
G657A21 turn on 10mm mandrel at 1550nm 0.1
G657A21 turn on 10mm mandrel at 1625nm 0.2
G657A21 turn on 7.5mm mandrel at 1550nm 0.5
G657A21 turn on 7.5mm mandrel at 1625nm 1.0

Single Mode Fiber Cable Usage and Instructional Video

?v=7D5DXND3-TI
