20 Ton Pneumatic Hydraulic Press with Gauge

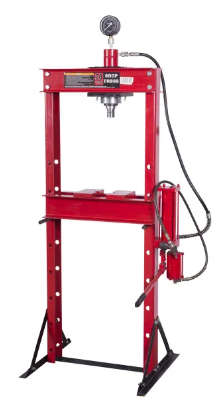

MAC AFRIC 20-Ton Hydraulic Press (Manual & Pneumatic)

The MAC AFRIC 20-Ton Hydraulic Press is an advanced pressing machine designed for both manual hand-pumping and pneumatic operation. This dual-functionality press offers the flexibility to choose between the traditional manual method and the faster pneumatic connection for greater speed and efficiency. Ideal for heavy-duty tasks in automotive, metalworking, and other industrial applications, this press provides versatility and power to meet a variety of pressing needs.

Key Features:

• 20-Ton Capacity:

  • 20-ton pressing power ensures the press can handle heavy-duty tasks like bearing pressing, stamping, bending, and more.

• Dual-Pump Function (Manual & Pneumatic):

  • Use the manual hand pump for standard operation or connect to pneumatic power for faster operation, reducing time and increasing productivity. Pneumatic operation is much faster than the manual hand-pumping method, especially for repetitive tasks.

• Wide Working Range (77-1030mm):

  • The working range of 77-1030mm accommodates a broad range of materials and components, providing flexibility for both small and large tasks.

• Hydraulic Pump Type:

  • The hydraulic pump ensures smooth and efficient pressure application, while also providing consistent force across tasks.

• Adjustable Bed:

  • The height-adjustable bed enables you to set the press height according to the workpiece, ensuring perfect alignment and optimized pressure application.

• Precision Press Blocks:

  • Includes press blocks for precise control of pressure application. This ensures that the force is applied accurately to the specific part or component being worked on.

Specifications:

• Capacity: 20 Ton
• Stroke / Travel: 180 mm
• Working Range: 77 - 1030 mm
• Pump Type: Hydraulic (Manual & Pneumatic)
• Bed Adjustments: Height adjustable for versatility
• Bed Width: 166 mm
• Bed Length: 530 mm
• Press Shaft Length: 82 mm
• Press Shaft Diameter: 49 mm

Package Dimensions:

• Package Weight: 102 kg
• Package Dimensions:
  • Length: 80.0 cm
  • Width: 26.0 cm
  • Height: 18.0 cm

Benefits:

• Dual Pump Function (Manual & Pneumatic):

  • Enjoy the flexibility to choose between manual hand-pumping for precision control or pneumatic power for faster, high-volume work.

• High 20-Ton Capacity:

  • The 20-ton force provides ample power for a variety of heavy-duty pressing, bending, and shaping applications.

• Wide Working Range (77-1030mm):

  • With an extended working range, you can easily accommodate various objects of different sizes and shapes, from small components to large panels.

• Adjustable Bed and Press Blocks:

  • The height-adjustable bed and included press blocks provide the flexibility to adjust the press to the required height and shape for specific tasks, enhancing precision.

• Pneumatic Function for Speed:

  • The pneumatic function allows for significantly faster operation, making it ideal for high-volume or repetitive tasks.
