Description :
12V DC 200/250/300/450mm(8/10/12/18 inches) Stroke Mini Linear Actuator 900N(90KG/198LBS) load 6mm/sec(0.24inch/sec) Speed

Features :
Light weight and compact structure.
User-friendly control.
Simple installation.
Low noise.
High rigidity.
Water proof.

Specification :

1. Input : 12V DC
2. Load : 900N = 90KG = 198LBS
3. Speed : 6mm/sec = 0.24inch/sec (no-load 10mm/sec)
4. Limited switch : Yes
5. Duty cycle : 10%
6. House material : Aluminum Alloy
7. Inner tube material : Aluminum Alloy

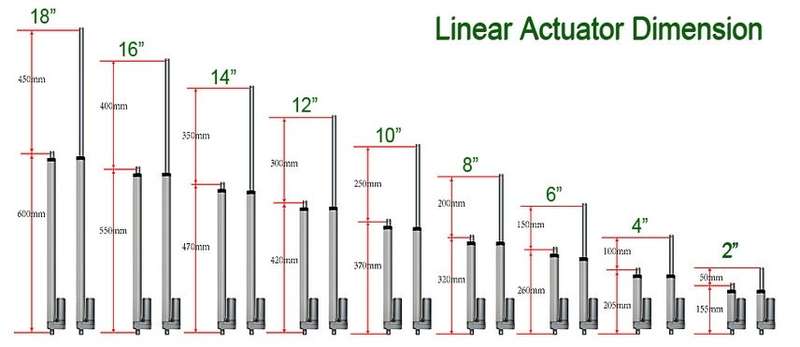

8. Stroke length : 200mm = 8inch/ 250mm = 10inch/ 300mm = 12inch/ 450mm = 18inch for option ~

9. Color : Silver
10. Operation temperature : -26 to +65 ￢ﾄﾃ
11. IP Class : IP54

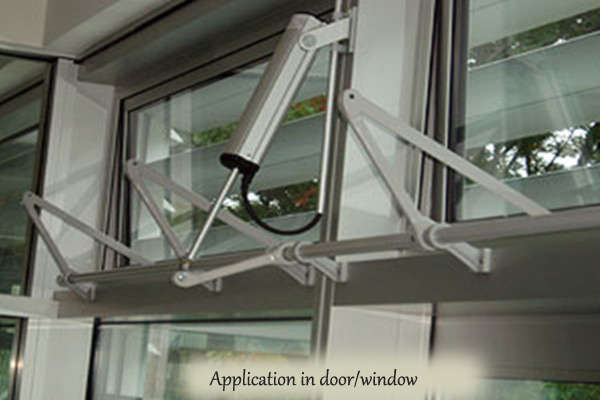

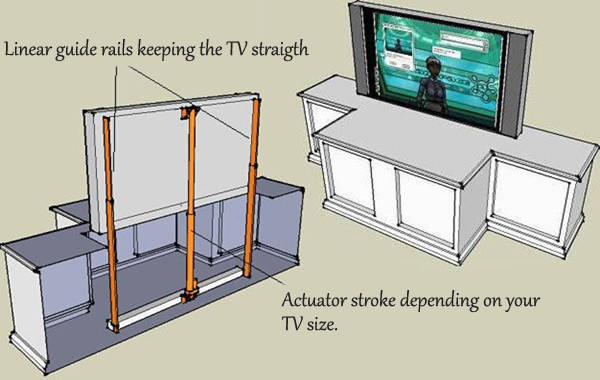

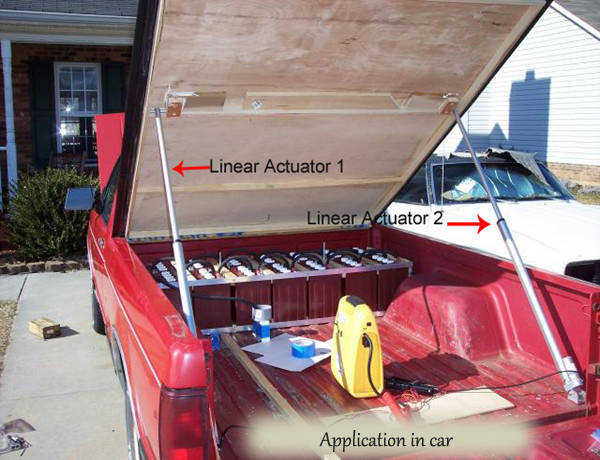

12. Application : Car, Electric Bicycle, Fan, Window, Printer, etc.

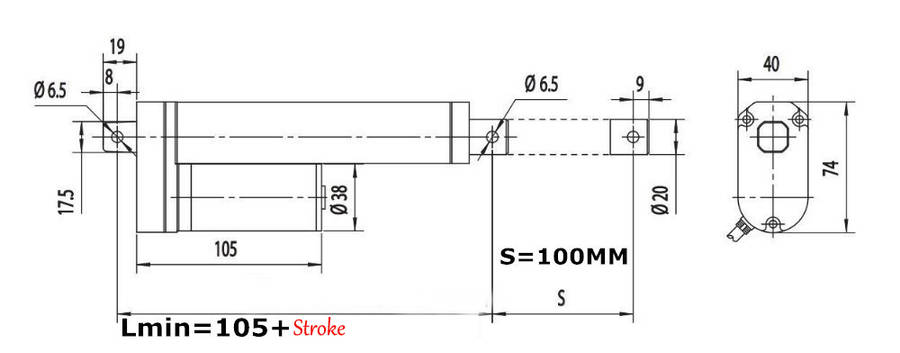

Diagram :

1. Retracted length = Lmin = 105+Stroke. Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch and stop automatically.
2. Stroke means the movement length of linear actuator.
3. Lmax = Lmin+Stroke = 105+Stroke+Stroke
Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch and stop automatically.
