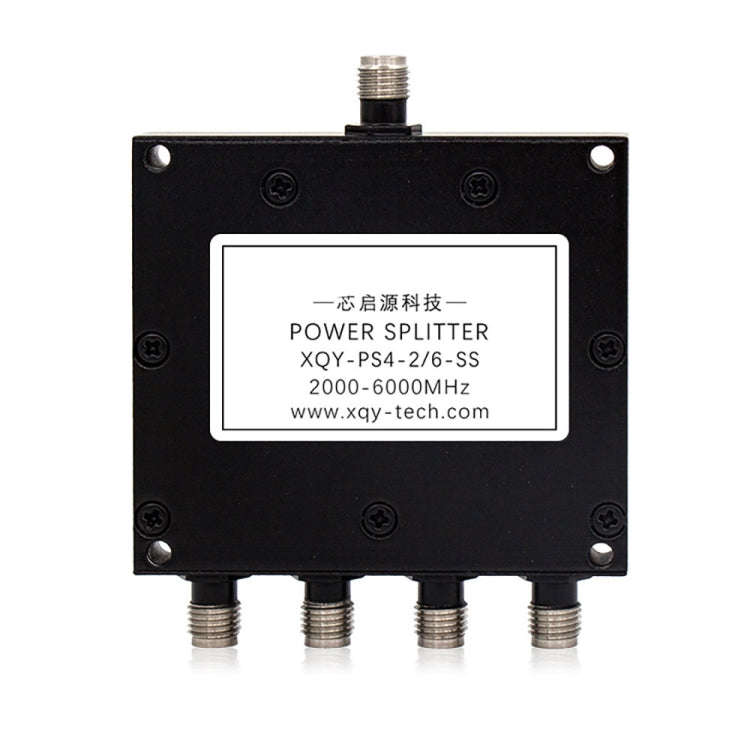

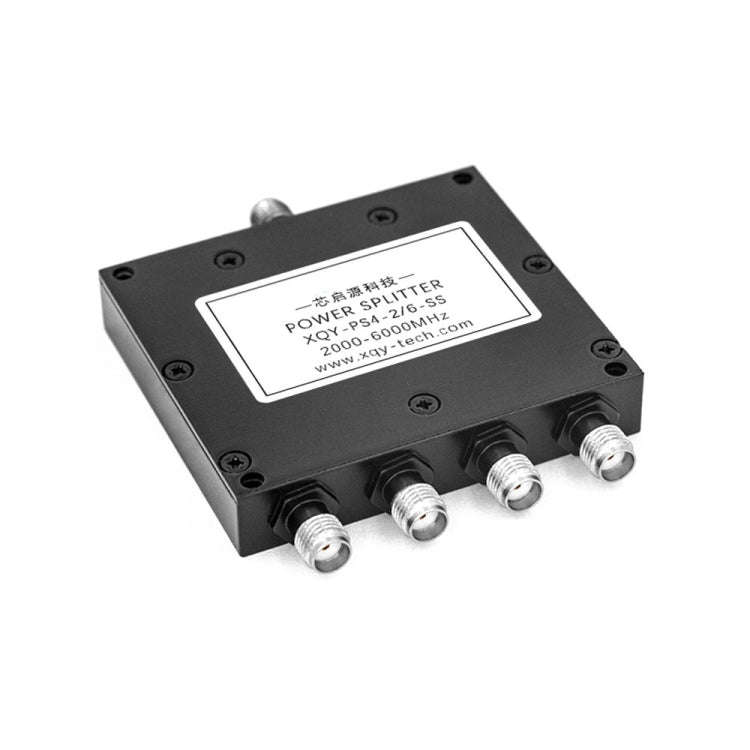

2000~6000MHz SMA 1 To 4 Microstrip Power Splitter

Name: 2000~6000MHz SMA 1 To 4 Microstrip Power Splitter
SKU: TBD06027977
Price: 1738.85 ZAR
Availability: InStock

New

10 available

R1,738.85

Want to pay less?

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Maverick21059

95.99 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

International

Product code

TBD06027977

Bob Shop ID

639989672

1. Impedance: 50 Ohms
2. Phase balance: ±4 degrees
3. Surface treatment: black paint
4. Port connector: SMA-Female
5. Low insertion loss, low standing wave, high isolation
6. Working temperature: -45~+85 degrees celsius
7. Frequency range: 2000~6000MHz
8. Amplitude balance: ±0.2dB
9. Isolation: Min.20dB
10. Input standing wave: Typ. 1.8/Max.1.25
11. Output standing wave: Typ. 1.15 / Max.1.2
12. Withstand power: 30W for splitter; 2W for combiner
13. Insertion loss: less than or equal to 0.8dB (excluding theoretical loss of 6dB)

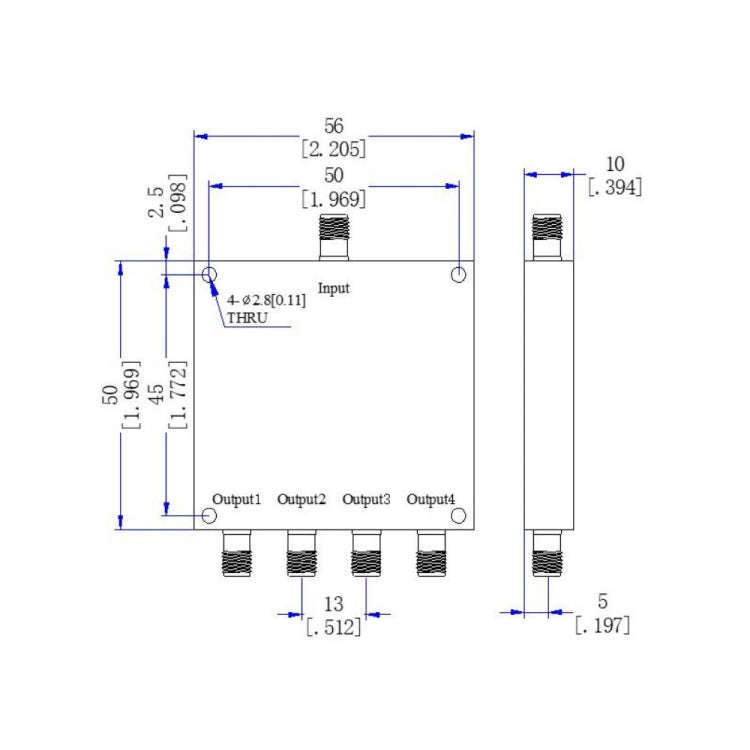

14. Dimensions: 56x50x10mm
15. Weight: 64g
