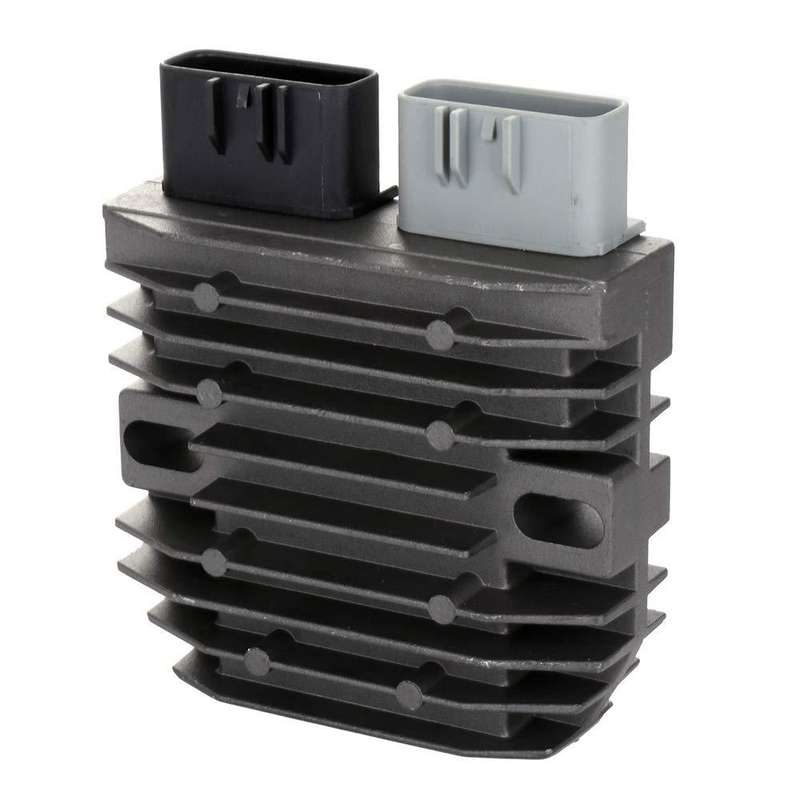

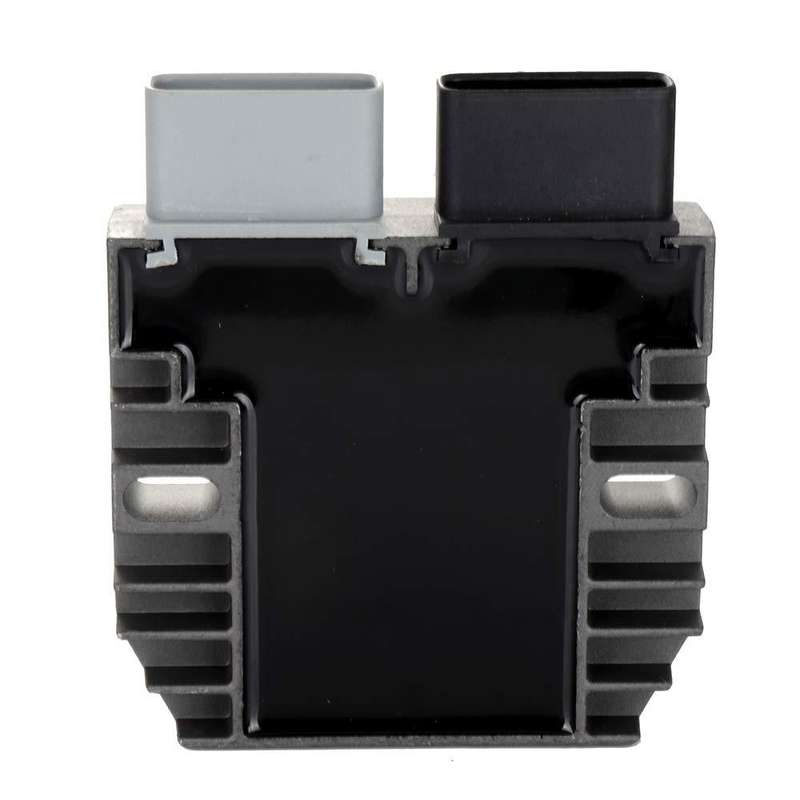

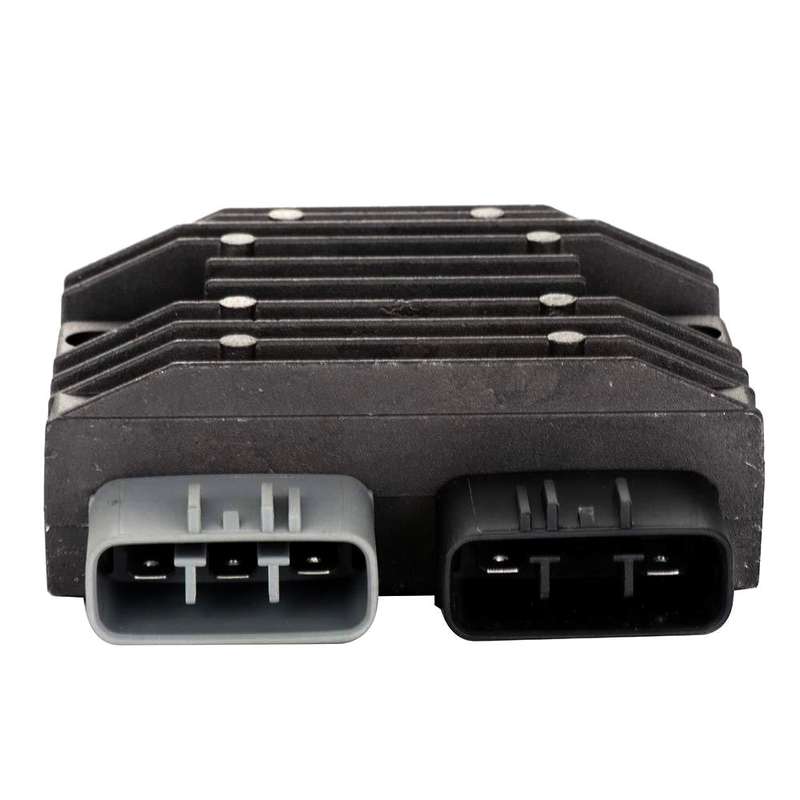

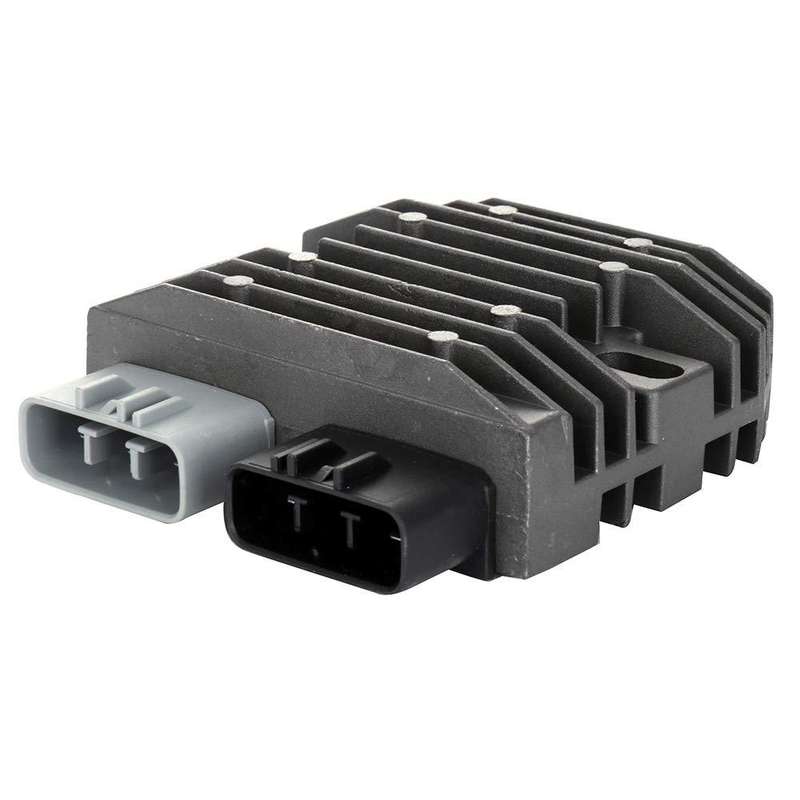

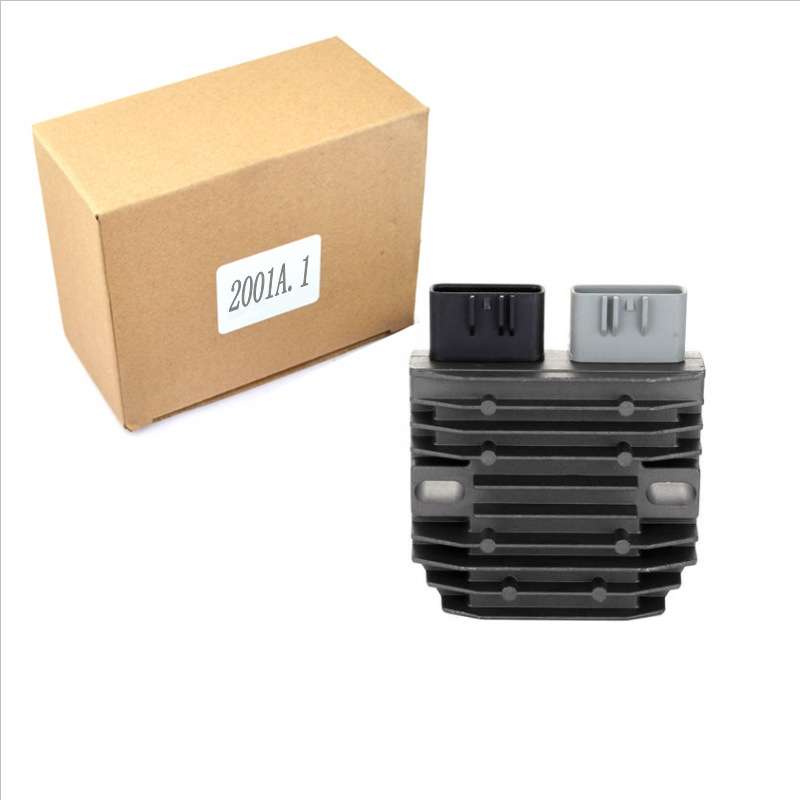

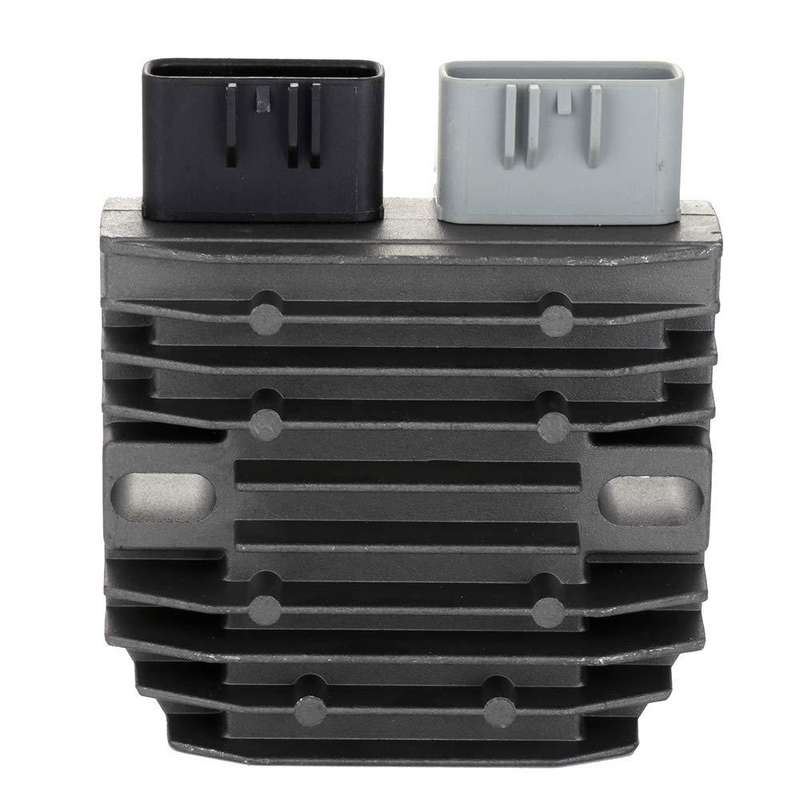

2001A.1 Motorcycle Rectifier For Honda 710001103 710000870 710000261 710000908 515177325

TBD0545460601

1. Weight: 360g
2. Output voltage: 14.5v
3. Category: Three-phase full-wave rectifier
4. Applicable models: applicable to FH012AA 210660714 21066-0022 99999-0377 21066-0008 21066-0714 21066-0744

Installation Precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged and the voltage is too high and other electrical components are burned out
