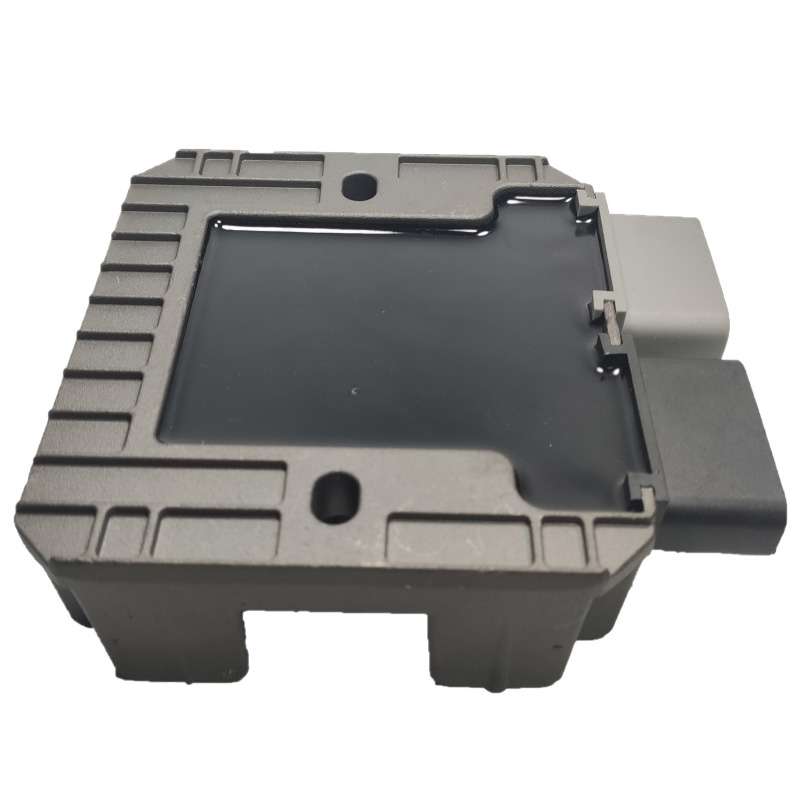

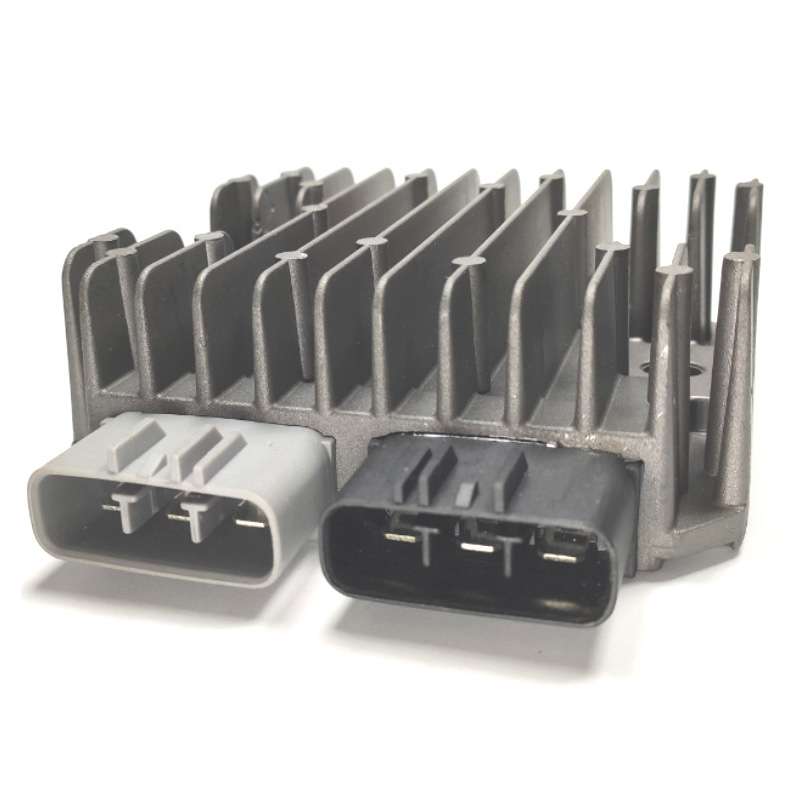

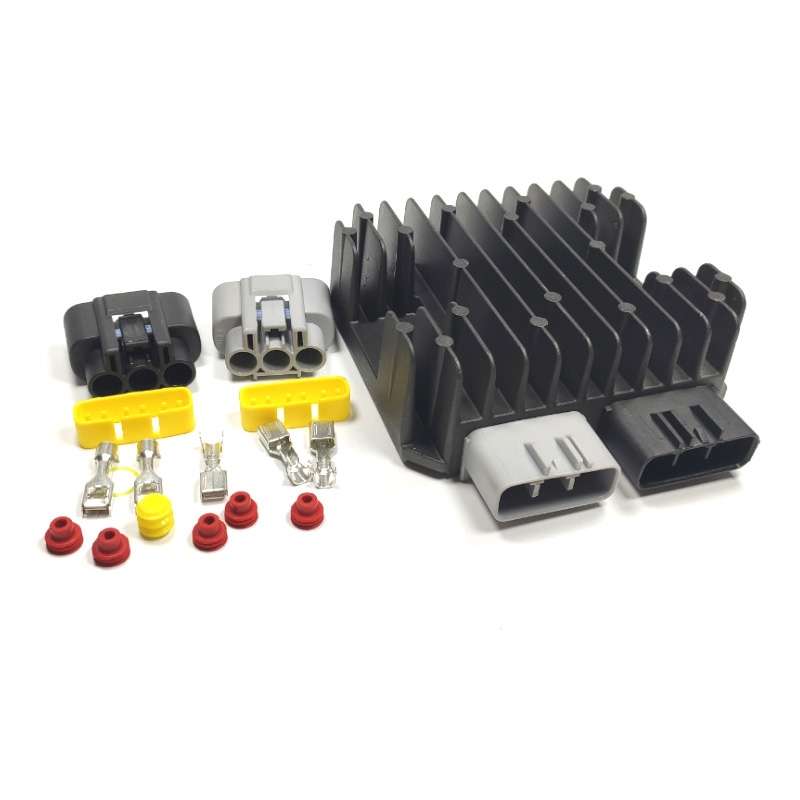

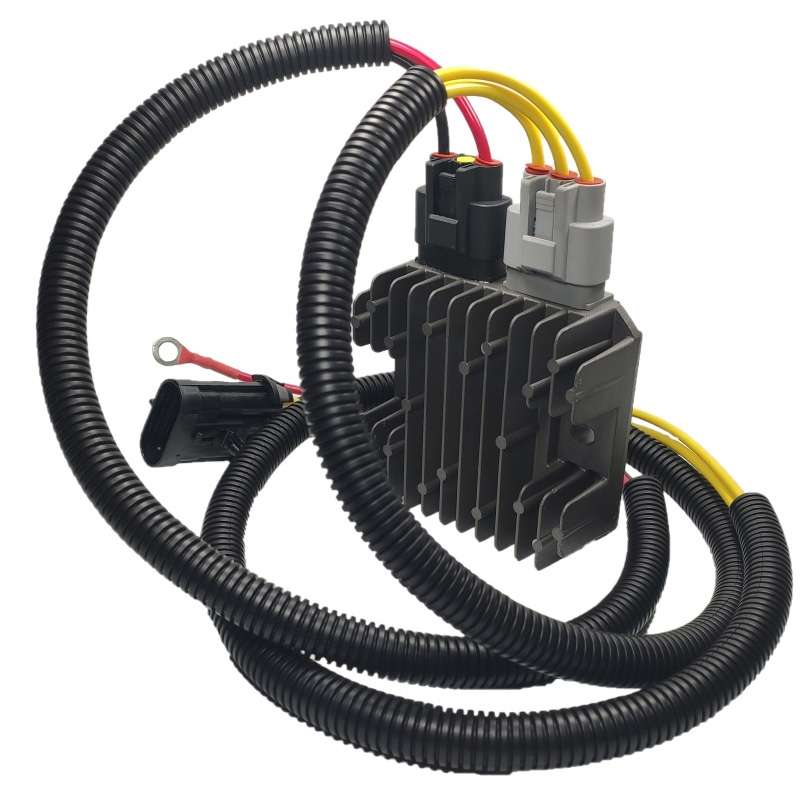

2001F.2 Motorcycle Rectifier For 4013247 4013904 4014029 4015229 / Polaris RZR 1000 XP

TBD05459986

1. Weight: 450G
2. Heat dissipation material: aluminum heat dissipation shell
3. Output current: 50A
4. Output voltage: 14.5V
5. Applicable battery: 12V

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The whole installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is conducive to heat conduction. You can also add thermal conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the overvoltage from burning out other electrical devices when the rectifier is damaged.

Applicable models:
For Polaris Scrambler XP 1000 2014 2016 4012678
For Polaris Scrambler XP 850 2014 4012678
For Polaris Scrambler HO EPS 850 2013 4012678
For Polaris Scrambler 850 2015 2016 4012678
For Polaris Sportsman HL / MD 1000 2015 2016 4012678
For Polaris Sportsman Touring EPS 550 2011 2014 4012678
For Polaris Sportsman Forest 850 2011 2015 4012678
For Polaris Sportsman XP 550 2010 2014 4012678
For Polaris Sportsman XP 1000 2015 2016 4012678
For Polaris Sportsman HL / SP 850 2015 2016 4012678
For Polaris Sportsman X2 850 2011 4012678
For Polaris Sportsman X2 550 2011 2014 4012678
For Polaris Sportsman Touring 850 2011 2016 4012678
For Polaris Sportsman Touring 1000 2015 2016 4012678
For Polaris Sportsman EPS 550 2010 2014 4012678
For Polaris Sportsman 550 2011 2013 4012678
For Polaris Sportsman XP 850 2010 2015 4012678
For Polaris Sportsman Forest 550 2011 2014 4012678
For Polaris ACE EFI EURO HD 570 2015 2016 4014029
For Polaris ACE 325 2014 4013904
For Polaris ACE EFI / EURO / HD 325 2015 2016 4014029
For Polaris ACE EFI 900 2016 4015229
For Polaris RZR 4 XP 900 2012 4013904
For Polaris RZR XP 1000 2015 4014029
For Polaris RZR EFI 570 2012 4013904
For Polaris RZR XP EFI 900 2012 4013904
For Polaris Hawkeye 325 2015 4014543
For Polaris Sportsman 570 2014 2017 4014543
For Polaris Sportsman 450 2016 2017 4015214
For Polaris Sportsman HO 450 2016 2017 4015230
