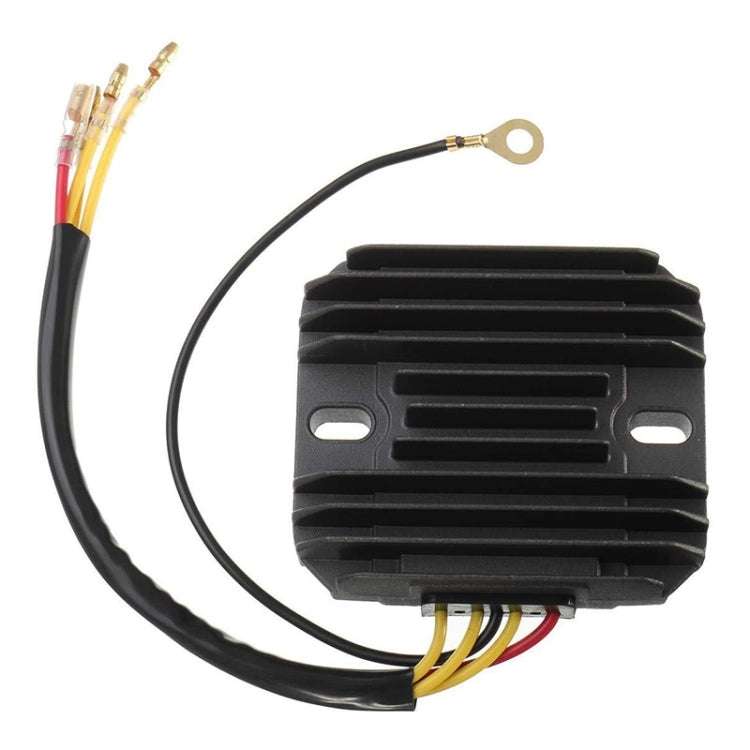

2002.5 Motorcycle Rectifier for Suzuki 32800-49X50 / 32800-47121

2002.5 Motorcycle Rectifier for Suzuki 32800-49X50 / 32800-47121

20 available / new
R567.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643115077
1. Weight: 240g 2. Wire length: 25CM 3. Output voltage: 14.5V 4. Output current: 25A Installation precautions: 1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier 2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved. 3. Pay attention that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame 4. No other wires should be pressed between the rectifier and the frame 5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the overvoltage from burning out other electrical devices when the rectifier is damaged. Applicable models: For 2352 25A For Reemplazo Shin Ngen SH590A-13 For Suzuki-32800-49X50 For Suzuki-32800-47121 For Suzuki GS T 750 1982 1983 32800-47120 For Suzuki GS L 450 1982 32800-44120 For Suzuki GS E 650 1981 1982 32800-47020 For Suzuki GS E 500 1982 1983 32800-47120 For Suzuki GS T 450 1996 32800-44040 For Suzuki GS S 1100 1983 32800-49320 For Suzuki GS 1100 1980 1981 32800-45210 For Suzuki GS S 450 1980 1982 32800-44040 For Suzuki GS GL 850 1982 1983 32800-49310 For Suzuki GS S 1000 1982 32800-45250 For Suzuki GS M 550 1981 1982 32800-47020 For Suzuki GS GL 850 1982 1983 32800-47120 For Suzuki GS GT / GX 1000 1996 32800-45240 For Suzuki GS 750 1980 1981 32800-45210 For Suzuki GS E / S 1000 1980 32800-45210 For Suzuki GS 425 1992 32800-44030 For Suzuki GS GT 850 1996 32800-45210 For Suzuki GS G 850 1979 32800-45110 For Suzuki GS T 550 1981 32800-47020 For Suzuki GS G / GL 1000 1980 1981 32800-45240 For Suzuki GS L 550 1980 1982 32800-47020 For Suzuki GS 550 1979 1980 32800-44040 For Suzuki GS TX 250 1999 32800-44040 For Suzuki GS E 425 1979 32800-44030 For Suzuki GS 1000 1996 32800-45210 For Suzuki GS EX 550 1981 32800-47020 For Suzuki GS T / TX 450 1981 1982 32800-44120 For Suzuki GS E 450 1980 1982 32800-44040 For Suzuki GS S 750 1983 32800-49320 For Suzuki GS G / GL 1000 1980 1981 32800-49140 For Suzuki GS G / GL 850 1980 1981 32800-45210 For Suzuki GS E 750 1982 32800-49140 For Suzuki GS GX 850 1999 32800-45210 For Suzuki GS L 450 1999 32800-44120 For Suzuki GS L 450 1980 1982 32800-44040 For Suzuki GS TT 250 1996 32800-44040 For Suzuki GS E 1100 1980 1981 32800-49310 For Suzuki GS L 750 1979 32800-45110 For Suzuki GS T 250 1980 1981 32800-44040 For Suzuki GS 850 1986 32800-45110 For Suzuki GS L 450 1996 32800-44120 For Suzuki GSX 400 1996 32800-44040 For Suzuki GSX 1100 1980 1981 32800-45210 For Suzuki GSX 750 1981 32800-45210 For Suzuki GSX 400 1999 32800-44040 For Suzuki GSX S 750 1982 1983 32800-45250 For Suzuki GSX 750 1982 1983 32800-49320 For Suzuki GSX 750 1999 32800-45210 For Suzuki GSX S 1000 1982 32800-45250 For Suzuki GSX 750 1996 32800-45210 For Suzuki LT QuadRunner 230 1987 1993 32800-49X51 For SH590A-13 Suzuki-32800-49X50 For Suzuki-32800-47121 For Suzuki GS L 550 1980 1982 32800-47020 For Suzuki GS G / GL 1000 1980 1981 32800-45240 For Suzuki GS GT / GX 1000 1996 32800-45240 For Suzuki GS T 550 1981 32800-47020 For Suzuki GS G 850 1979 32800-45110 For Suzuki GS GT 850 1996 32800-45210 For Suzuki GS 425 1992 32800-44030 For Suzuki GS L 450 1996 32800-44120 For Suzuki GS 850 1986 32800-45110 For Suzuki GS T 250 1980 1981 32800-44040 For Suzuki GS E 650 1981 1982 32800-47020 For Suzuki GS TX 250 1999 32800-44040 For Suzuki GS 550 1979 1980 32800-44040 For Suzuki GS 1100 1980 1981 32800-45210 For Suzuki GS S 1100 1983 32800-49320
