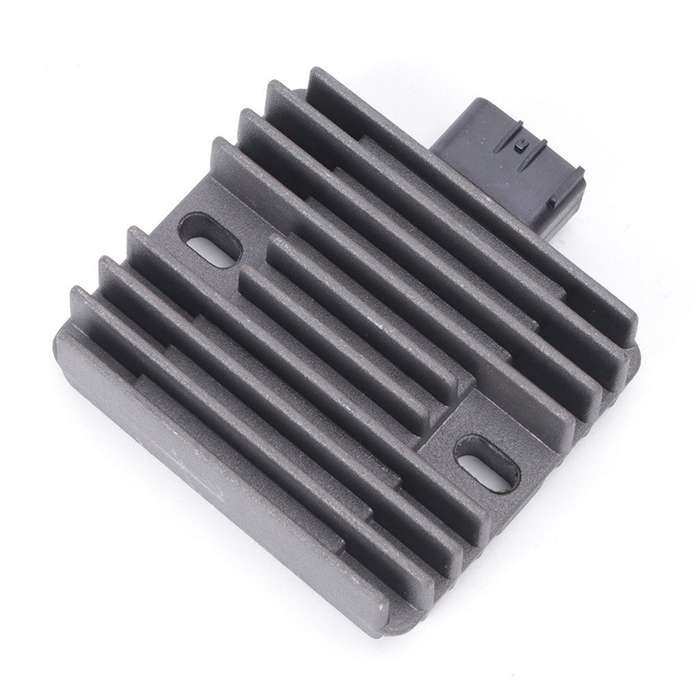

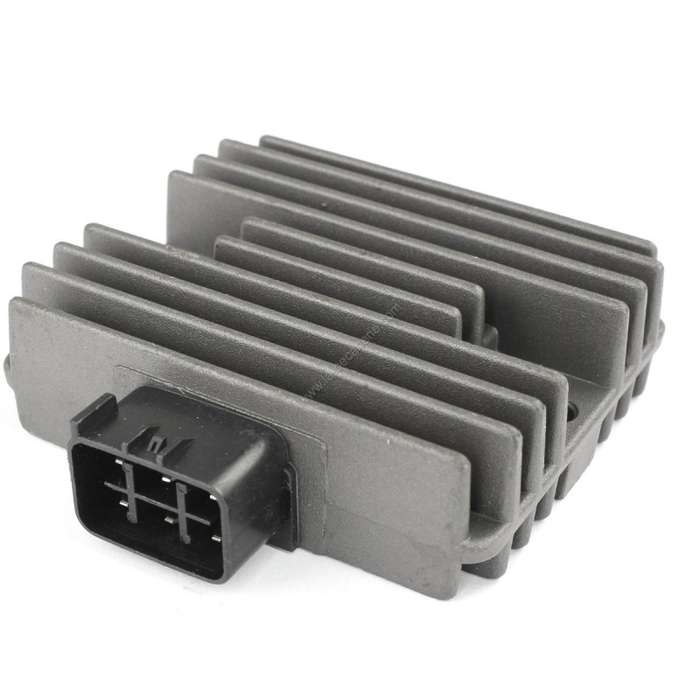

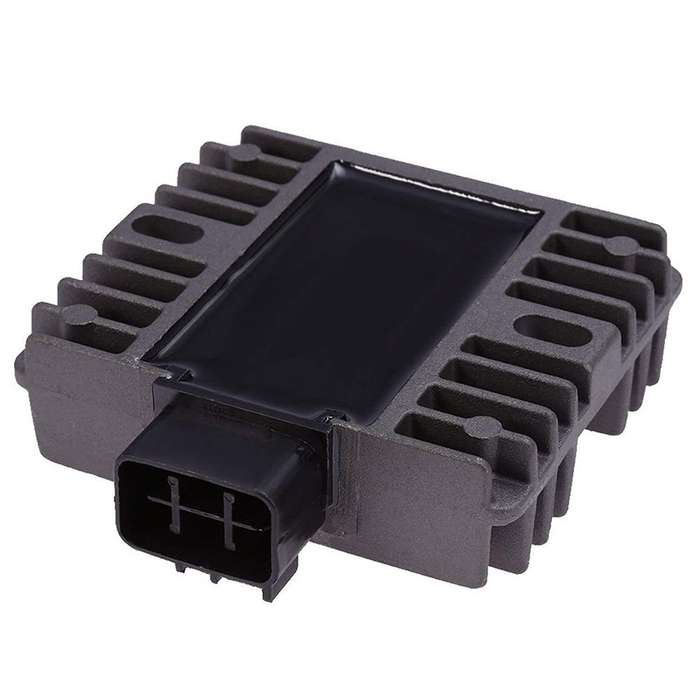

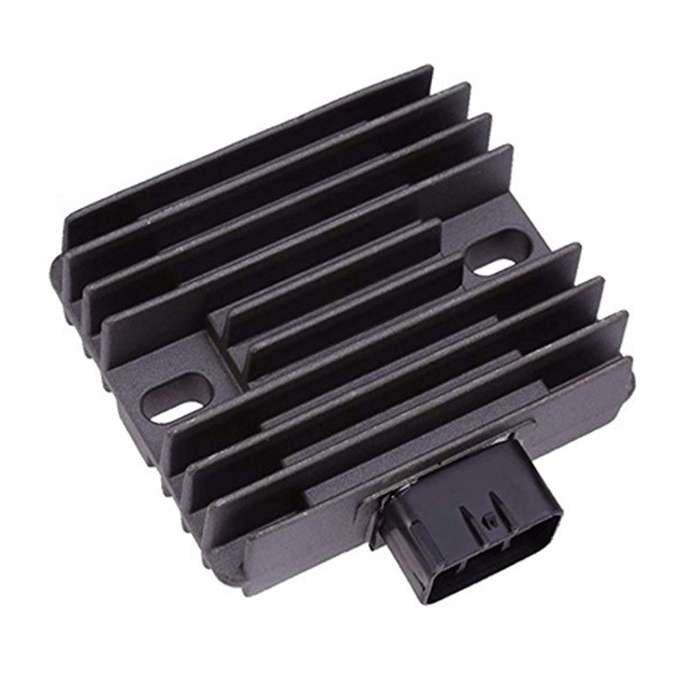

2003.2 Motorcycle Rectifier For Piaggio / Guikadi / Kawasaki / Honda / Suzuki / Yamaha

1. Weight: 250G
2. Output voltage: 14.5V
3. Output current: 35A
4. Category: Three-phase full-wave rectifier

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is conducive to heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.

Applicable models:
For 2365
For Kawasaki JT ULTRA LX 1500 2007 2019 21066-3718
For Kawasaki JT ULTRA 300LX 1500 2011 2013 21066-3718
For Kawasaki JT ULTRA 300X 1500 2011 2013 21066-3718
For Kawasaki JT ULTRA 260X 1500 2009 2010 21066-3718
For Kawasaki JT ULTRA 310LX 1500 2014 2019 21066-3718
For Kawasaki JT ULTRA 310R 1500 2014 2019 21066-3718
For Kawasaki JT ULTRA 250X 1500 2007 2008 21066-3718
For Kawasaki JT ULTRA 310X 1500 2014 2019 21066-3718
For Kawasaki STX 12F 1200 2003 2007 21066-3718
For Kawasaki STX 15F 1500 2004 2019 21066-3718
For Reemplazo Pietcard 1436
For Reemplazo Shin Ngen SH678KA
For Yamaha FAT 212SS / X 1100 2010 2011 6S8-81960-00
For Yamaha FAT 212SS / X 1100 2008 6S8-81960-00
For Yamaha FRT SR210 1100 2009 2011 6S8-81960-00
For Yamaha FX WaveRunner 1100 2004 2008 6S8-81960-00
For Yamaha FX WaveRunner FX Cruiser 1000 2004 2006 6S8-81960-00
For Yamaha FX WaveRunner FX 1000 2007 2008 6S8-81960-00
For Yamaha FX 1000 2002 2008 6S8-81960-00
For Yamaha FX Cruiser 1100 2004 2008 6S8-81960-00
For Yamaha FZ A 1000 2002 2004 6S8-81960-00
For Yamaha GP WaveRunner 1300 2003 2008 6S8-81960-00
For Yamaha JD 35 1100 2005 6S8-81960-00
For Yamaha JF A 1100 2004 6S8-81960-00
For Yamaha LAT SX210W 1100 2012 2015 6S8-81960-00
For Yamaha SXT SX230 HO 1100 2007 2009 6S8-81960-00
For Yamaha VX WaveRunner 1100 2005 2009 6S8-81960-00
For Yamaha VX Cruiser 1100 2008 2015 6S8-81960-00
For Yamaha VX luxe 1100 2008 2012 6S8-81960-00
For Yamaha VX Sport 1100 2008 2012 6S8-81960-00
TBD0547598501
