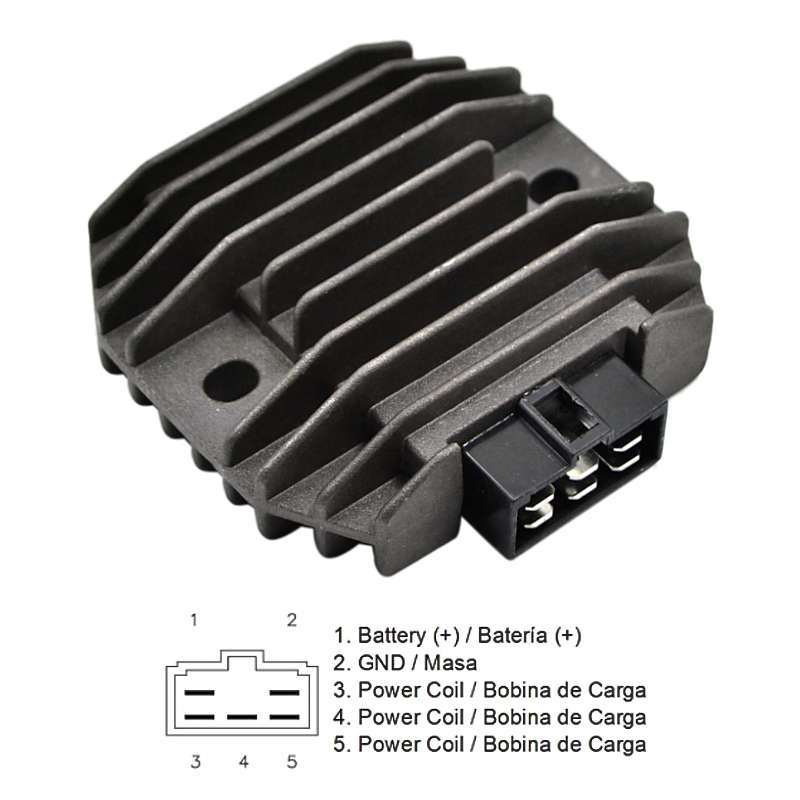

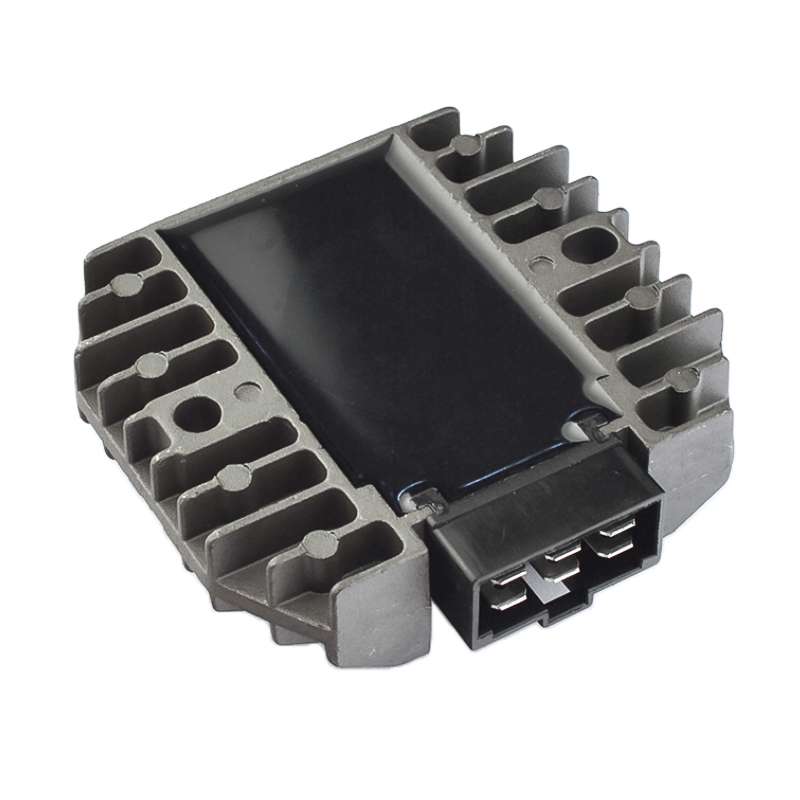

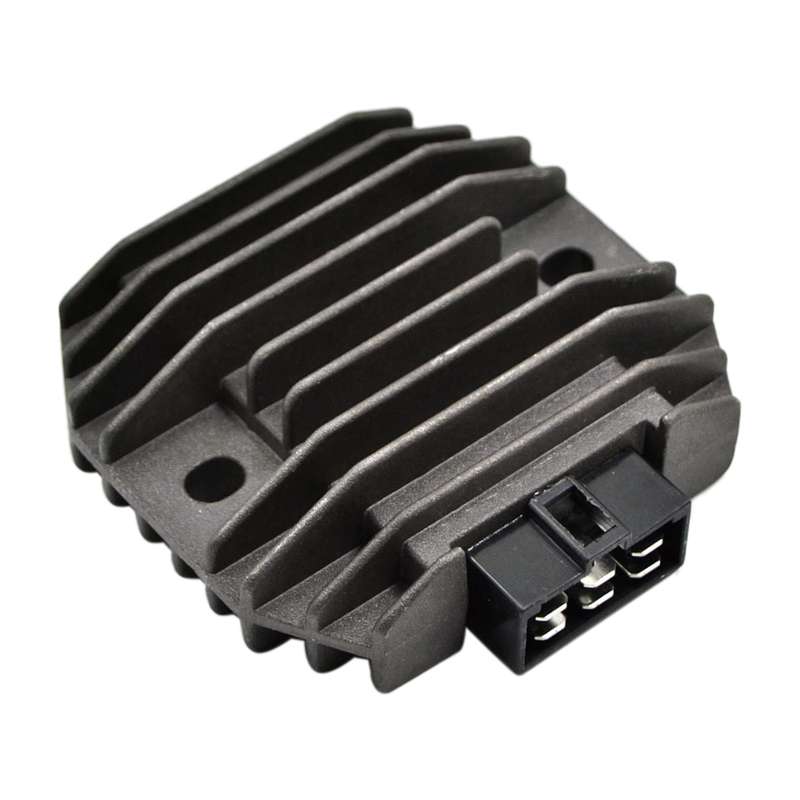

2005.1.2 Motorcycle Rectifier For Kawasaki ZZR600 / ZX600D / 1990-1992

TBD05476030

1. Weight: 240G
2. Output voltage: 14.5V
3. Output current: 25A
4. Category: Three-phase full-wave rectifier

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermal conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.

Applicable models:
For 2443
For Kawasaki KEF Lakota 300 1995 2000 21066-1089
For Kawasaki KEF Lakota Sport 300 2001 2003 21066-1089
For Kawasaki KFX 300 2001 2004 21066-1089
For Kawasaki KLF Bayou 300 1988 1991 21066-1101
For Kawasaki KLF Bayou 4x4 300 1989 2002 21066-1089
For Kawasaki KLF Bayou 300 1988 1991 21066-1055
For Kawasaki KLF Bayou 300 1992 2001 21066-1089
For Reemplazo Shin Ngen SH650A-12
