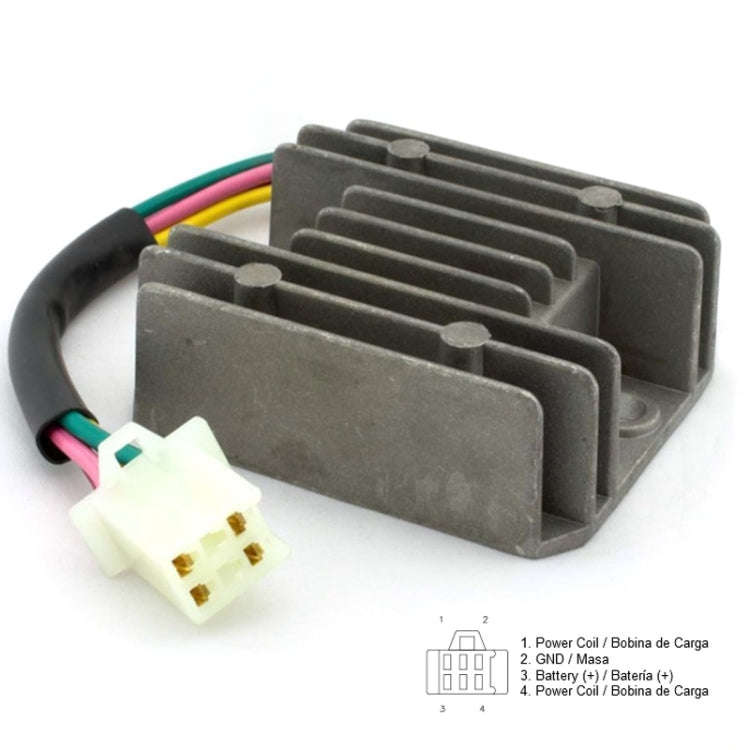

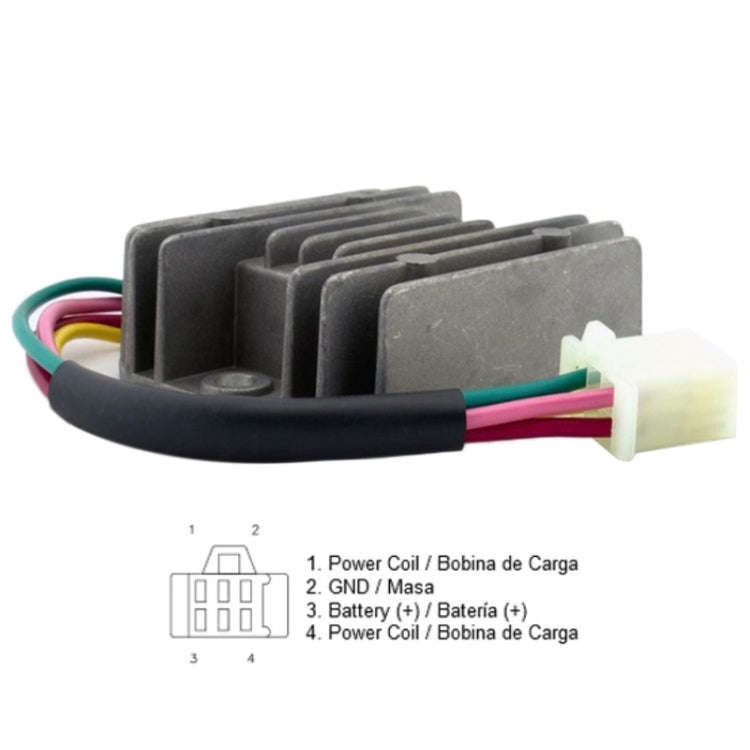

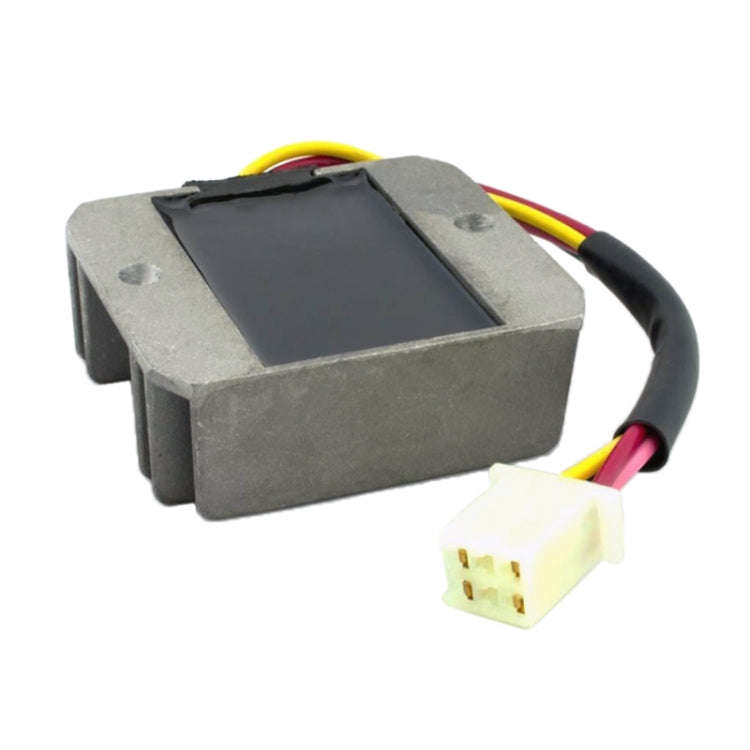

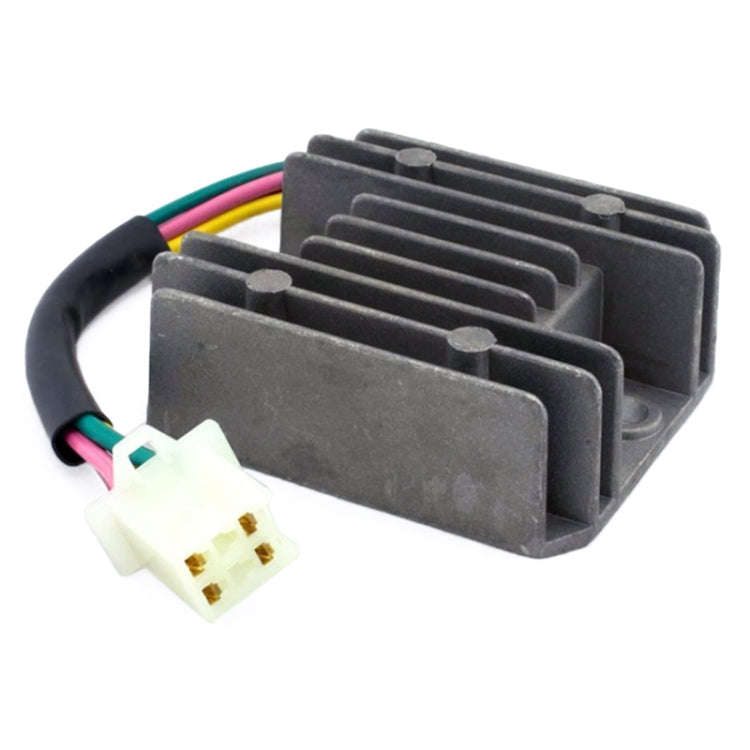

2006.0.1 Motorcycle Rectifier For Zanella FX 200 / Panther R 110 / Gilera TP 150

1. Weight: 135G
2. Cable length: 15CM
3. Output voltage: 14.5V
4. Applicable battery: 12V
5. Output current: 12A
6. Heat dissipation material: aluminum heat dissipation shell

Applicable models:
For 10178
For Cerro Extreme 250 s 2007
For Cerro Fire R 110 s 2007
For Cerro Speed 200 s 2007
For Ghiggeri Trattore 200
For Gilera TP 150
For Motomel Gorilla 150
For Panther R 110
For Zanella FX 200
For 4-Wire full wave motorcycle regulator rectifier CG

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
