2006.19 Motorcycle Rectifier For Honda C100 Super Cub / CA100 MR50K Elsinor

Selected model / variant: 2006.19 Motorcycle Rectifier For Honda C100 Super Cub / CA100 MR50K Elsinor

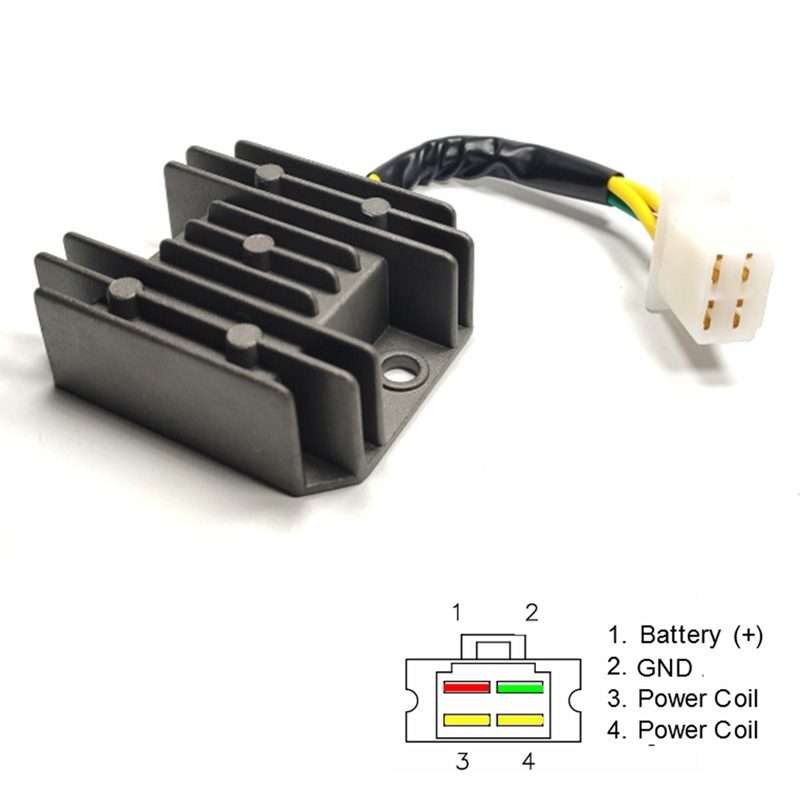

1. Weight: 215G
2. Wire length: 15CM with a 25CM long wire
3. Output voltage: 14.5V
4. Category: Single-phase full-wave rectifier
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
Applicable models:
For Honda C100 Super Cub-1959-1962
For Honda CA100 Honda 50-1962-1970
For Honda CA100T Trail 50-1961-1962
For Honda C102 Super Cub-1960-1962
For Honda CA102 Honda 50-1962-1969
For Honda C110 Super Sports Cub-1960-1962
For Honda CA110 Sport 50-1962-1969
For Honda MR50K Elsinore-1974-1975
For Honda QA50K-1970-1975
For Honda Z50A Mini Trail-1968-1978
For Honda C105T Trail 55-1962-1963
For Honda CA105T Trail 55-1963-1965
For Honda S65 Sport 65-1965-1969
For Honda CT70HK Trail 70H-1970-1973
For Honda CT70K Trail 70-1969-1978
For Honda XL70K-1974-1976
For Honda C70MK Honda 70-1970-1971
For Honda C70K1 Honda 70-1972-1973
For Honda CL70K Scrambler 70-1969-1973
For Honda SL70K Motosport 70-1971-1973
For Honda XR75K-1973-1978
For Honda XL75-1977-1978
For Honda CT90K Trail 90-1966-1978
For Honda CA200 Honda 90-1963-1966
For Honda CL90 Scrambler 90-1967-1969
For Honda CM91 Honda 90-1966-1969
For Honda CT200 Trail 90-1964-1966
For Honda S90 Super 90-1964-1969
For Honda SL90 Motosport 90-1969
For Honda ST90K Trailsport 90-1973-1975
For Honda XL100K-1974-1978
For Honda CB100K Super Sport 100-1970-1972
For Honda CL100K Scrambler 100-1970-1972
For Honda CL100S Scrambler 100-1971-1973
For Honda SL100K Motosport 100-1970-1973
For Honda CB125S-1973-1978
For Honda CR125M Elsinore-1974-1978
For Honda CT125 Trail 125-1977
For Honda CA92 Benly Touring 125-1959
For Honda CB92 Benly Super Sport 125-1959-1962
For Honda CB92R Benly S.S. Racer 125-1961-1962
For Honda CA95 Benly Touring 150 (Early)-1959-1963
For Honda CA95 Benly Touring 150 (Late)-1963-1966
For Honda CL125A Scrambler 125-1967-1969
For Honda CL125S Scrambler 125-1973-1974
For Honda MT125K Elsinore-1974-1978
For Honda MT125R-1977-1978
For Honda SL125K Motosport 125-1971-1973
For Honda TL125K Trials 125-1973-1976
For Honda XL125K-1974-1978
For Honda CA160 Touring 160-1966-1969
For Honda CB160 Sport 160-1965-1969
For Honda CL160 Scrambler 160-1966-1967
For Honda CL160D Scrambler 160D-1967-1968
For Honda CA175 Touring 175-1968-1969
For Honda CA175K3 Touring 175-1969-1970
For Honda CB175K Super Sport 175-1969-1973
For Honda CL175K Scrambler 175-1968-1973
For Honda MR175 Elsinore-1975-1977
For Honda SL17
