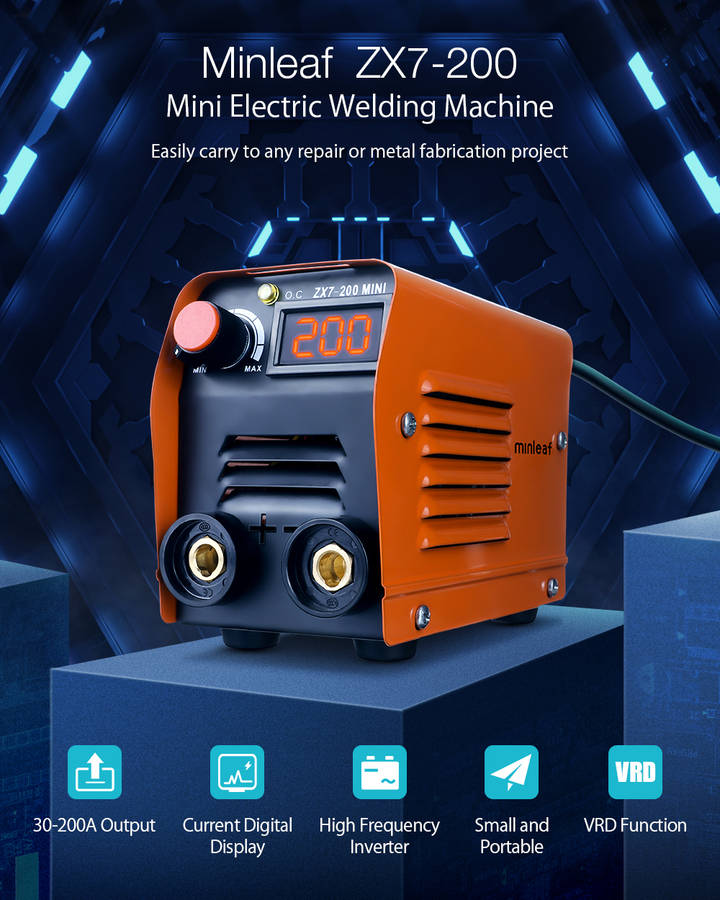

???Features:??

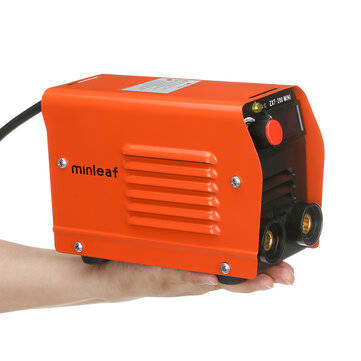

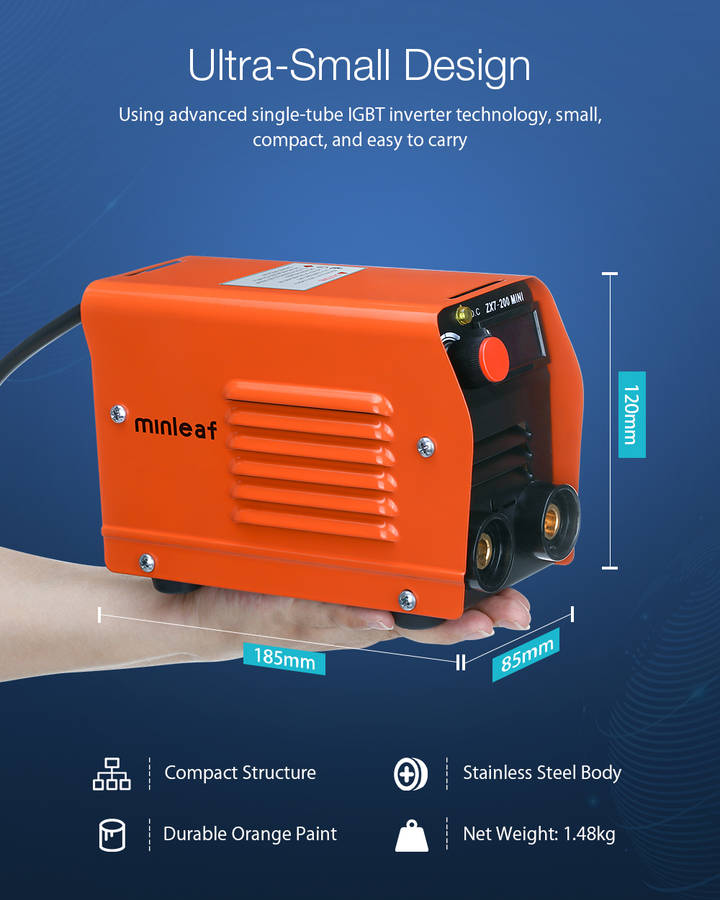

a???Small and portable
Adopting advanced single-tube IGBT inverter technology, it is compact and easy to carry;

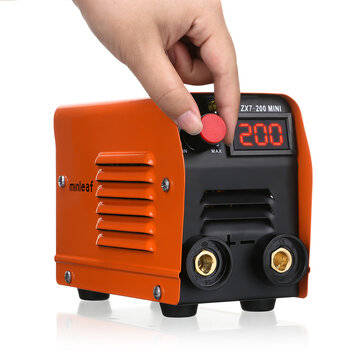

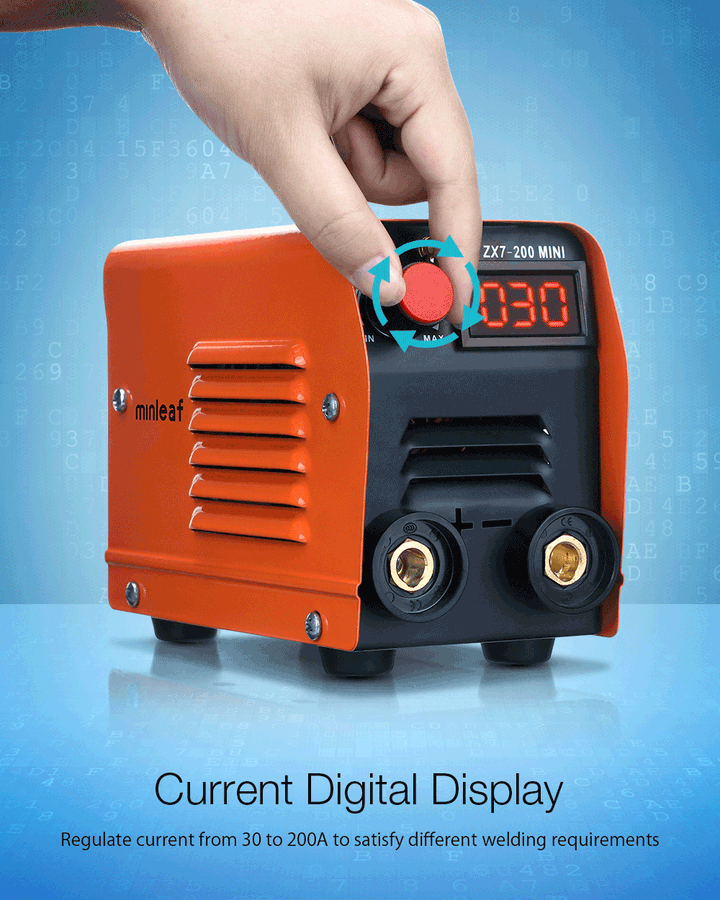

a???Digital display, easy to adjust
Suitable for welding amperage of various materials, supporting the regulation of current from 30 to 200A.

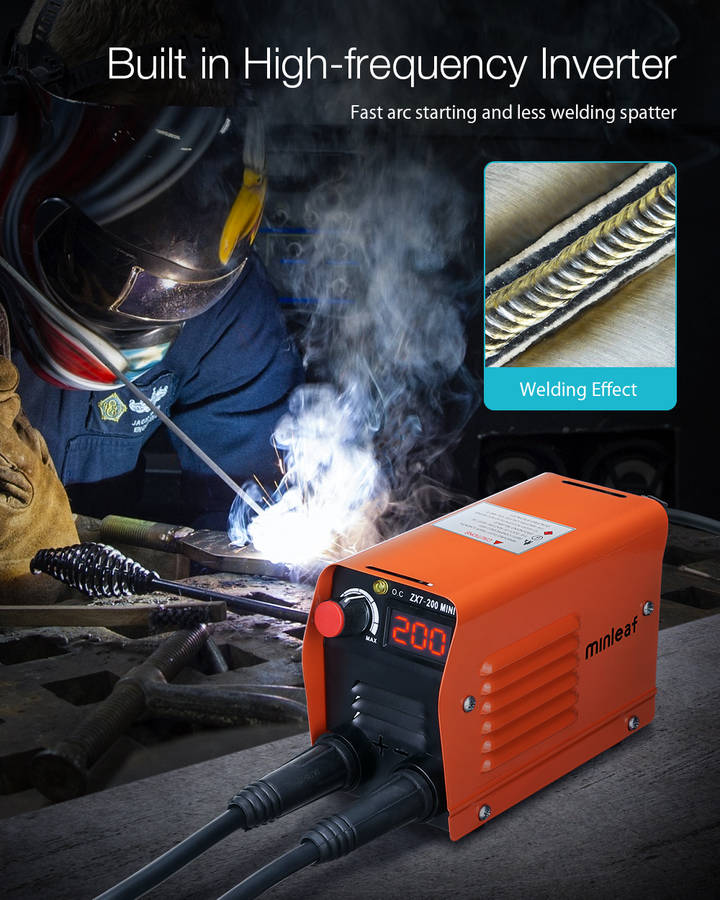

a???High frequency inverter.?
Quick arcing and less welding splash.

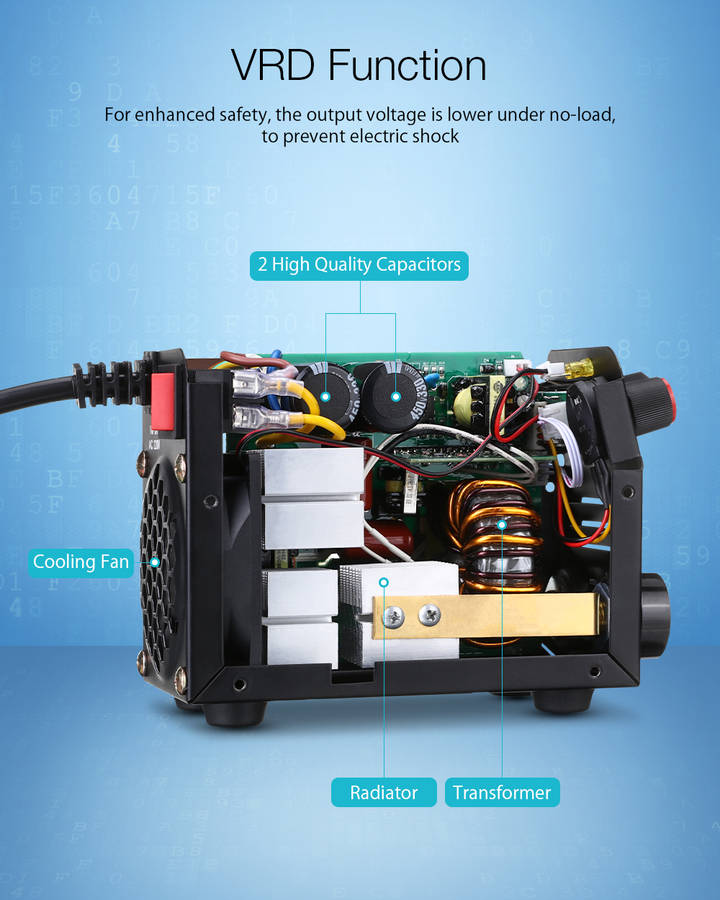

a???VRD function
With VRD function, the output voltage is low at no load, preventing electric shock and safer use;
a???Stable and durable
Compact, heavy-duty stainless steel body and durable orange paint for long life.
Specification:
Power voltage | 1 phase AC 220V±15% |
Frequency? | 50/60Hz |
Rated input current | 32.9A |
No-load voltage | 56V |
Output current | 30-200A |
Rated output voltage | 28V |
Duty cycle? | 60% |
No-load loss | 40W |
Efficiency | 80% |
Power factor | 0.73 |
Insulation grade | F |
Housing protection grade | IP21S |
Gross Weight | 1.85Kg |
Net Weight | 1.48Kg |
Dimensions | 185*85*120mm |
| Recommended stick thickness | ?a???2.5 mm(usual) / 3.2mm(occasionally) |
| Recommended stick electrode | stainless steel electrode, cast iron electrode and other alkaline coated electrode |
| Recommended material thickness | 2-6mm |
| Electrode length? ? ? ? | ?|2.5 | ?|3.2 | ?|4.0 | ?|5.0 |
| Current | 70-100A? ? ? ?? | 110-140A? ? ? ? | 170-220A? ? ? ? | 230-280A? ? ? ? |

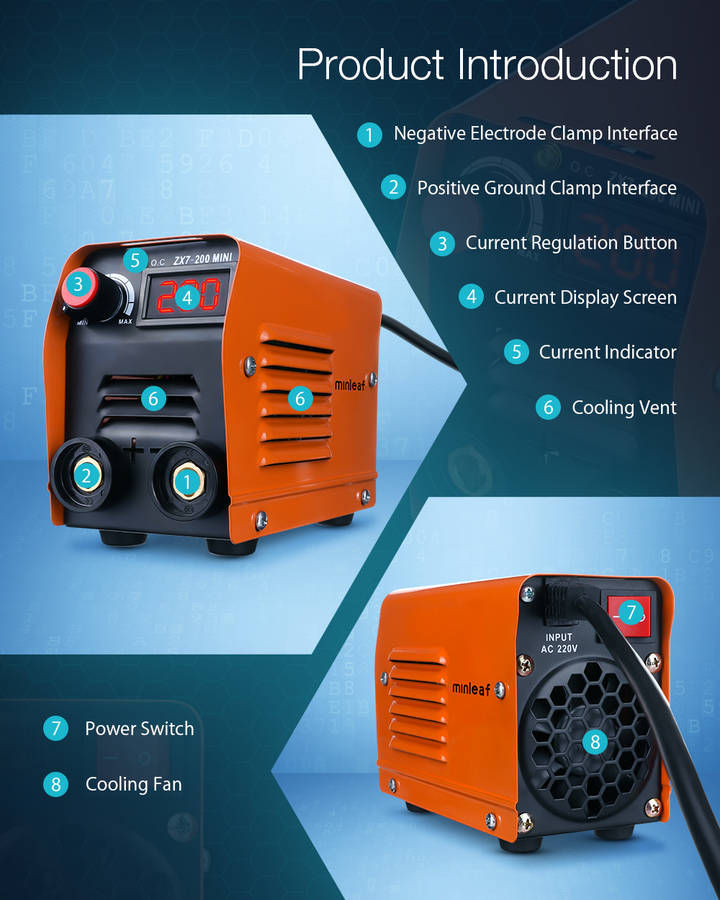

OPERATON INSTRUCTION:

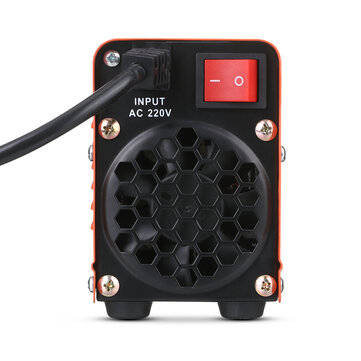

1. Turn on the power switch, the screen will show set current value and ventilator is begining to run.
2. Adjust knobs of welding current , make welding function complies with demands.
3. Generally, welding current is adequate to welding electrode according with as following.

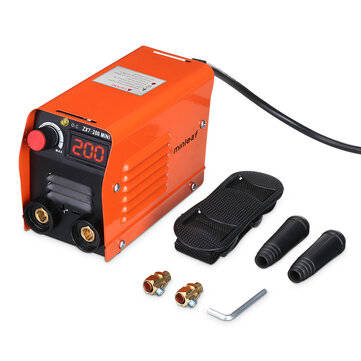

Package included:
1 x ZX7-200 Welding Machine
2 x Quick plug
2 x Insulated electrode
1 x T-wrench
1 x Strap
1 x English Manual
1 x Warranty Card
