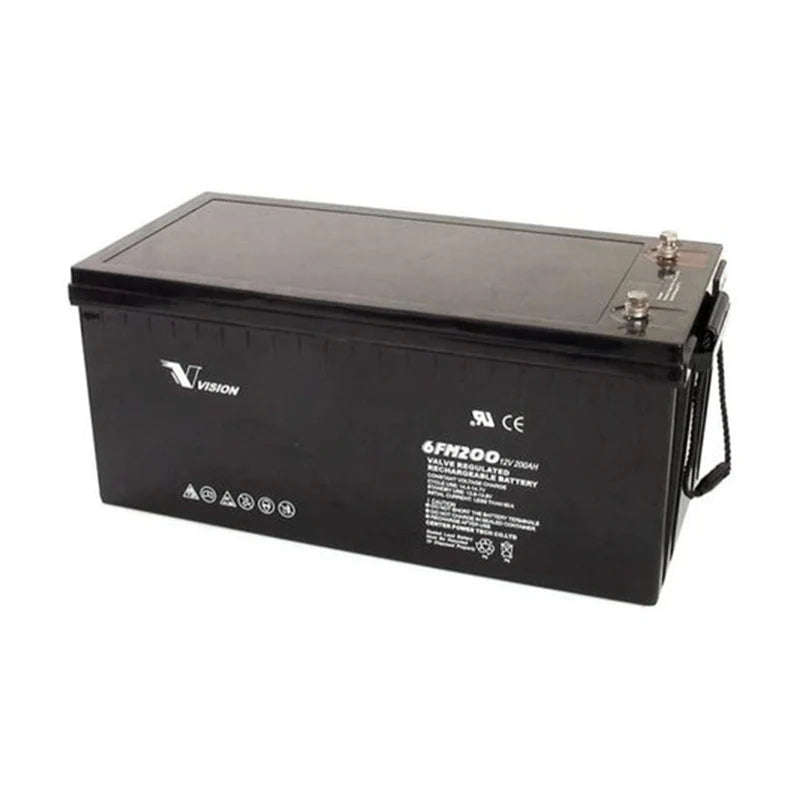

200AH 12V Deep Cycle AGM Battery (eXtra Heavy Duty 6FM200Z-X)
The rechargeable batteries are lead-lead dioxide systems. The dilute sulfuric acid
electrolyte is absorbed by separators and plates and thus immobilized. Should the
battery be accidentally overcharged producing hydrogen and oxygen, special one-way
valves allow the gases to escape thus avoiding excessive pressure build-up.
Otherwise, the battery is completely sealed and is, therefore, maintenance-free,
leak proof and usable in any position.
Features
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding.
Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
UL-recognized component.
Can be mounted in any orientation.
Computer designed lead, calcium tin alloy grid for high power density.
Long service life, float or cyclic applications.
Maintenance-free operation.
Low self discharge.
Battery Construction
Component
Raw material
Positive plate
Lead dioxide
Negative plate
Lead
Container
ABS
Cover
ABS
Safety valve
Rubber
Terminal
Copper
Separator
Fiberglass
Electrolyte
Sulfuric acid
Performance Characteristics
Nominal Voltage
12V
Number of cell
6
Design Life
12 years
Nominal Capacity 77oF(25oC)
10 hour rate (20.0A, 10.8V)
200Ah
5 hour rate (35.8A, 10.5V)
179.0Ah
3 hour rate (52.9A, 10.5V)
158.7Ah
1 hour rate (126A, 9.6V)
126Ah
Internal Resistance
Fully Charged battery 77oF(25oC)
?4mOhms
Self-Discharge
3% of capacity declined per month at 20oC(average)
Operating Temperature Range
Discharge
-20~60oC
Charge
-10~60oC
Storage
-20~60oC
Max. Discharge Current 77oF(25oC)
1000A(5s)
Short Circuit Current
3300A
Charge Methods: Constant Voltage Charge 77oF(25oC)
Cycle use
2.40-2.45VPC
Maximum charging current
60A
Temperature compensation
-30mV/oC
Standby use
2.20-2.27VPC
Temperature compensation
-20mV/oC
What's in the box
1x 200Ah AGM Battery
