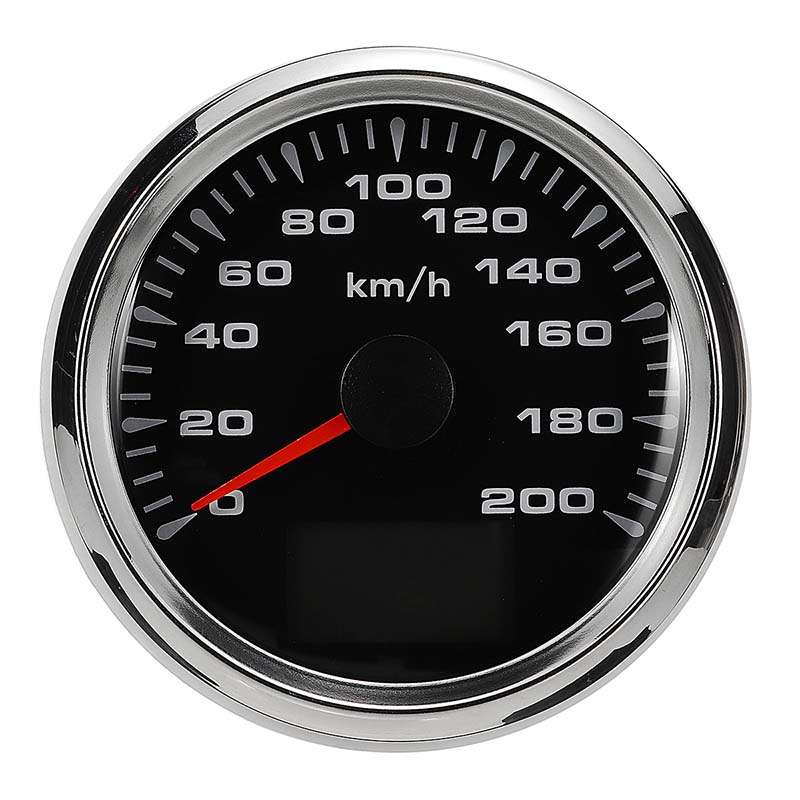

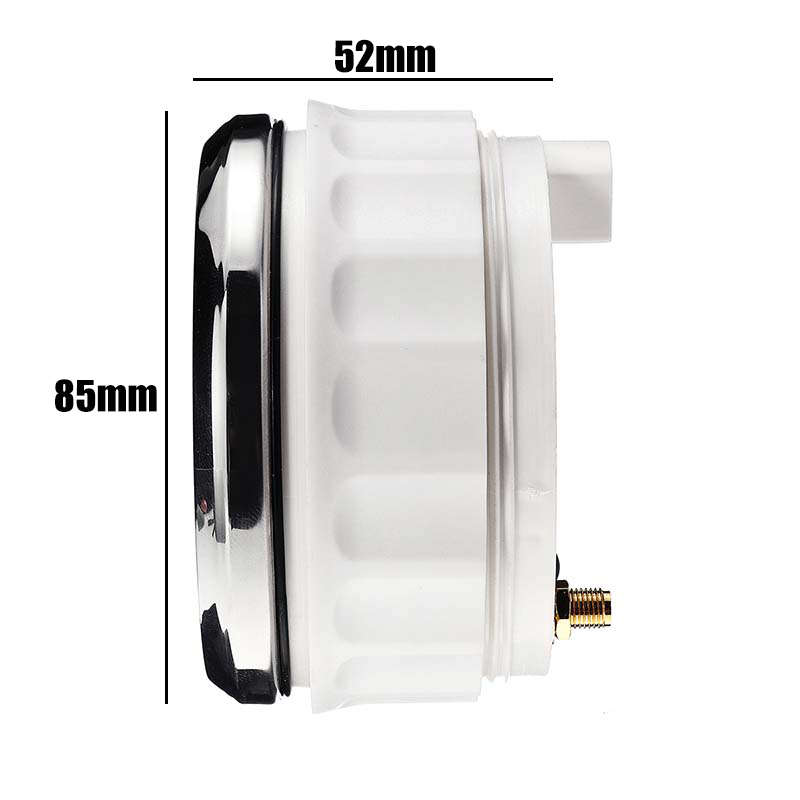

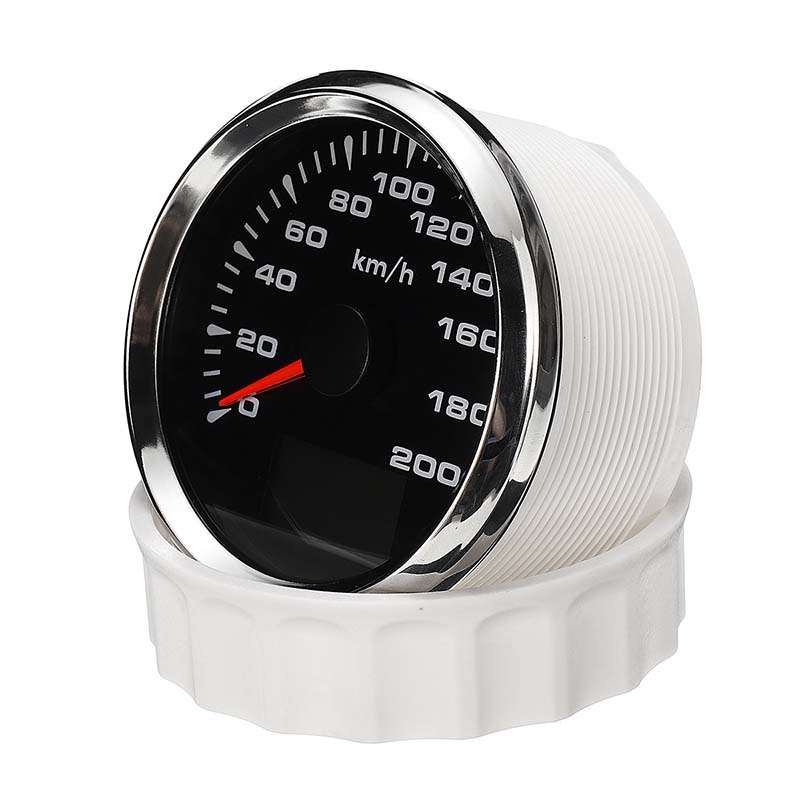

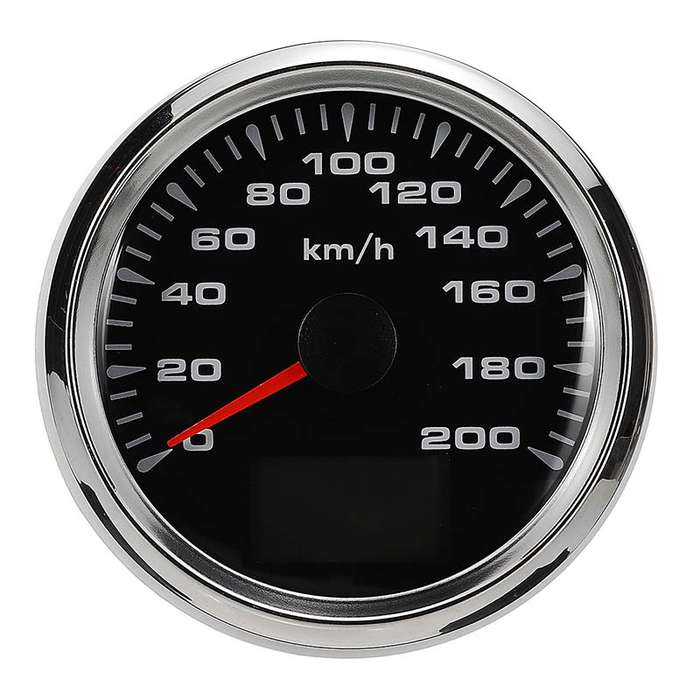

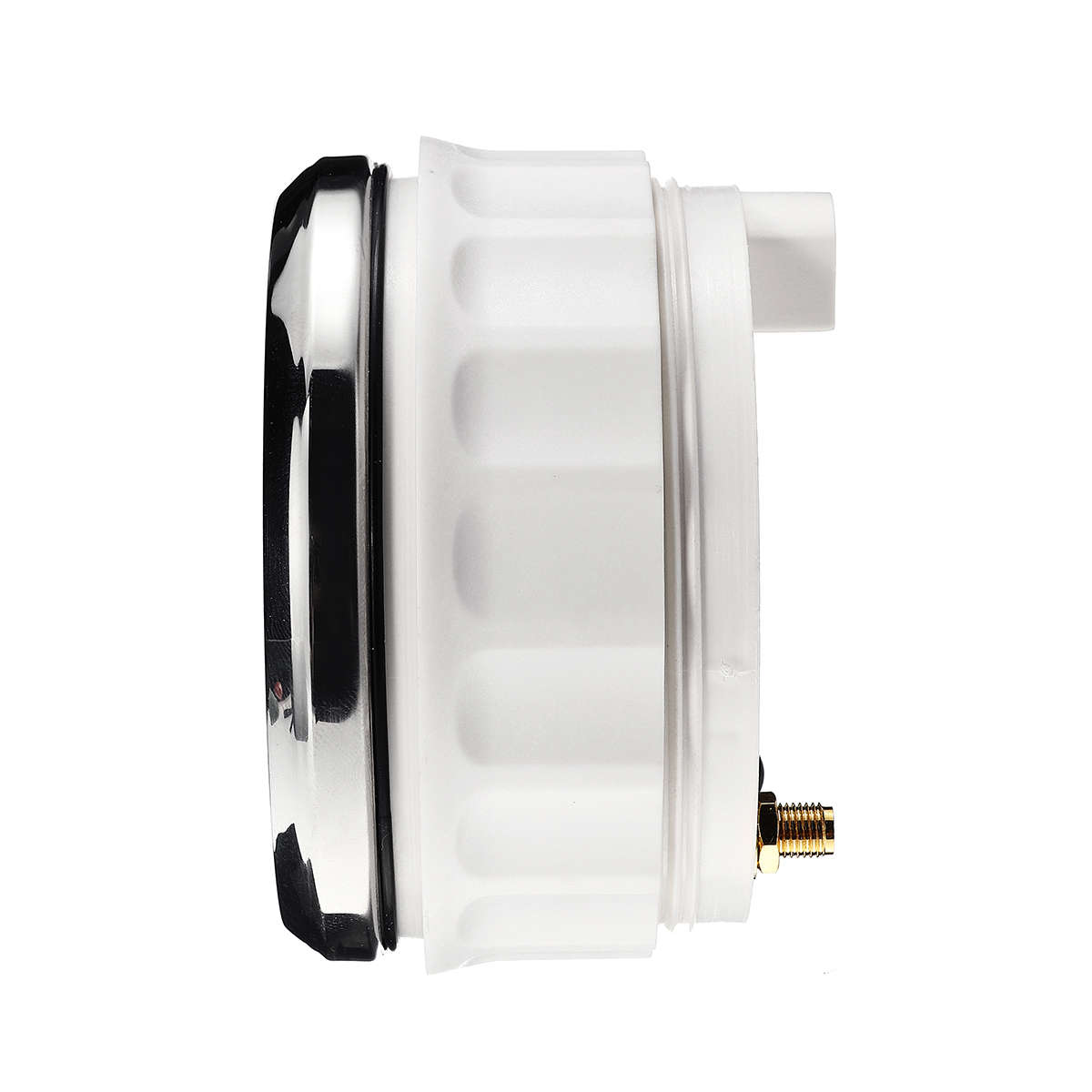

200km/h DC9-32V 85mm GPS Speedometer Speed Meter Gauge Waterproof For Auto Car Motor ATV Boat
Specification:
Working voltage: DC9~32V
Working current: ≤100mA(24V)
Working temperature: -30~+75￢ﾄﾃ
Storage temperature: -40~+85￢ﾄﾃ
Operation:
1)Press the Set button (less than 1 second) to change the back light color.
Color in sequence: Red(Default)->Green->Blue->White->Yellow->Kelly->Orange->Purple->Auto Mode
Remarks: When users select the AUTO MODE, the backlight will be off for around 2 seconds, and switch automatically as above sequence per minute.

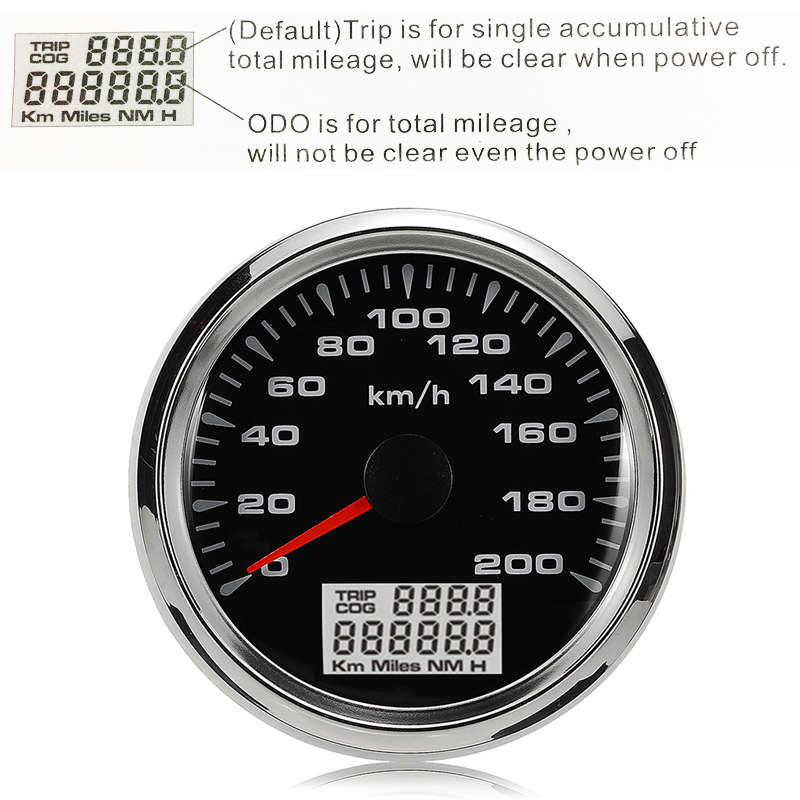

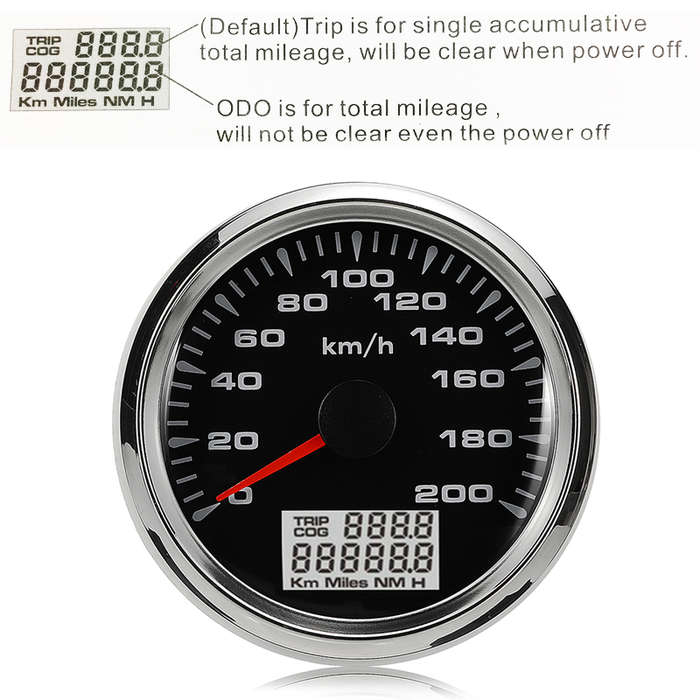

2)Hold the MODE button for 3 seconds for Switch TRIP01 or TRIP02 or COG to display.
TRIP01(Default): total mileage for one working cycle, data will not be recorded when power off.
TRIP02: total mileage for one working cycle, data will not be recorded when power off, but users could hold the set button for 3~5 seconds to clear.
COG00: azimuth instantly indicating, data will not be recorded.
Remarks: the unit of trip, total mileage and outta unit of dial are the same.
3)Malfunction:
Characters “COG””TRIP” will be flickering when there is not any positive GPS signal.
When the GPS speedometer was connected, it will search any positive GPS signal in 300 seconds.
And it will account automatically second by second, displaying at the trip part.
Explanation:
E01: There is not any positive GPS signal although it is on.
E02: Firstly the speedometer works well but suddenly lost signal. (The gauges will display the same speed as previous if the GPS signal back again in 30 seconds, or speedometer will return to be zero)
E03: The speedometer could not receive any data from internal. (The gauges will display the same speed as previous if the GPS signal back again in 10 seconds, or speedometer will return to be zero)

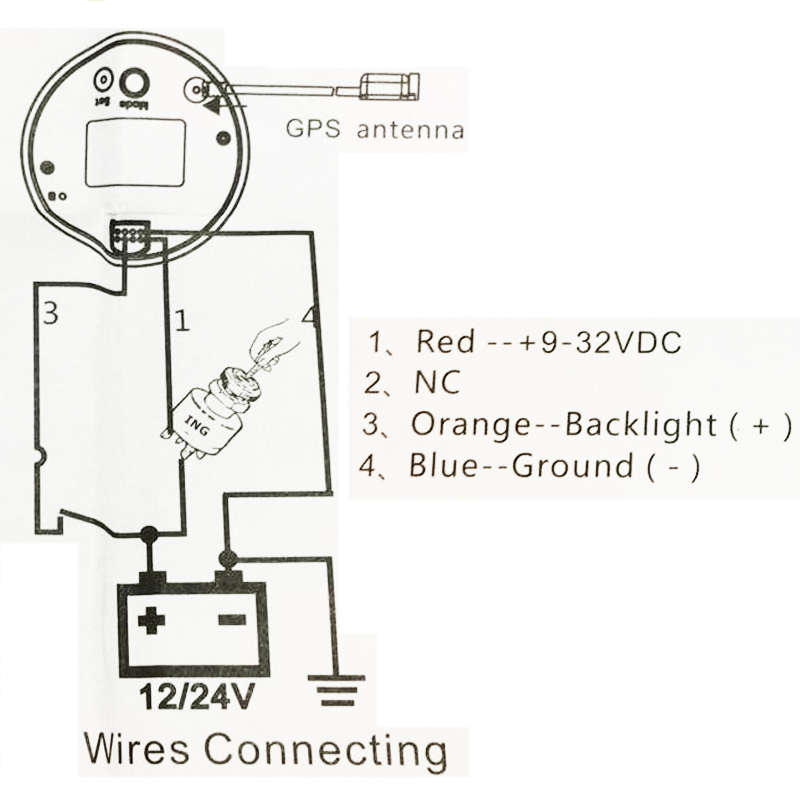

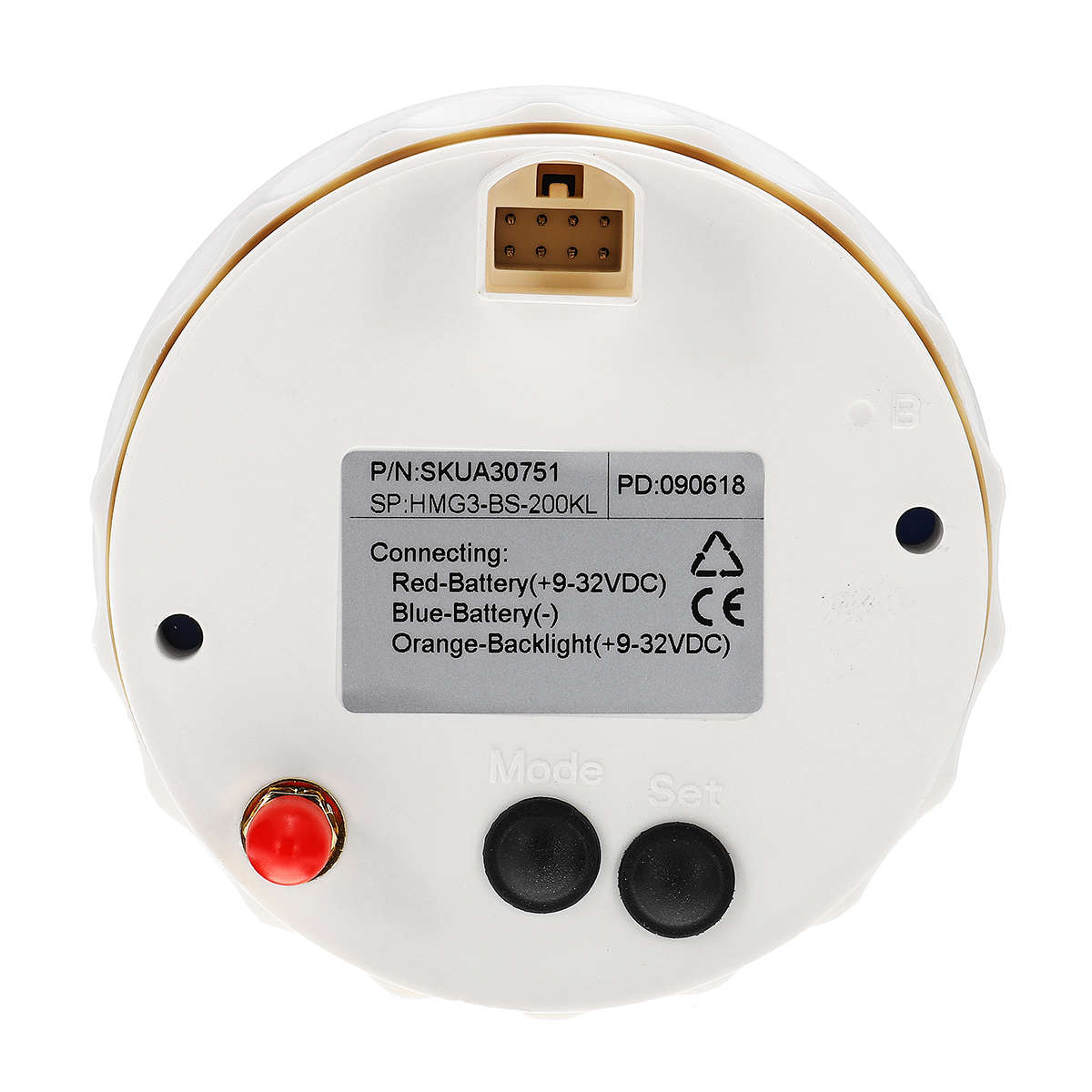

Connecting:
Red-Battery(DC+9-32V)
Blue-Battery(-)
Orange-Backlight(DC+9-32V)

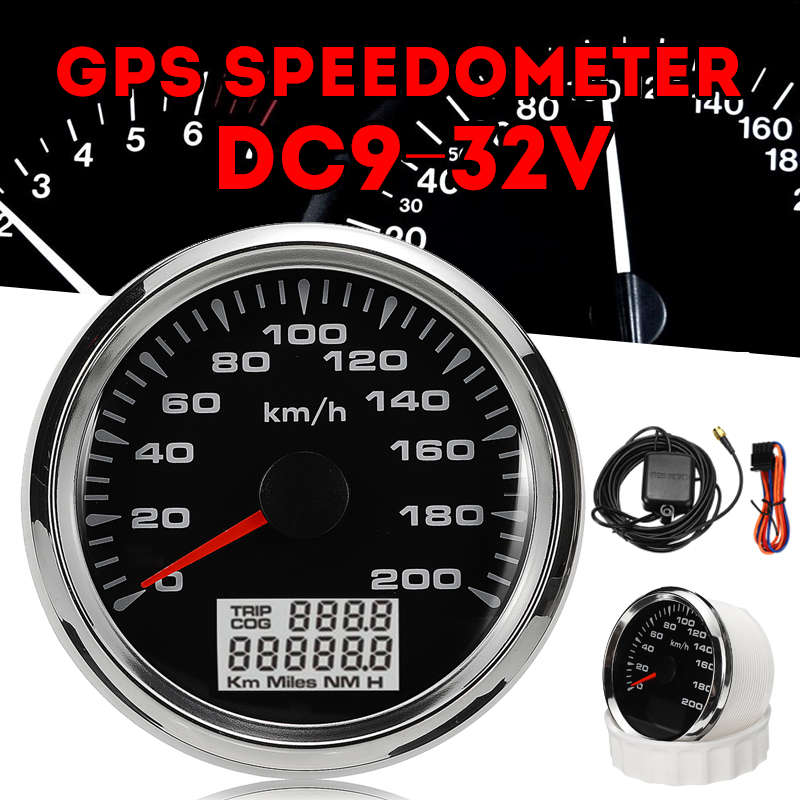

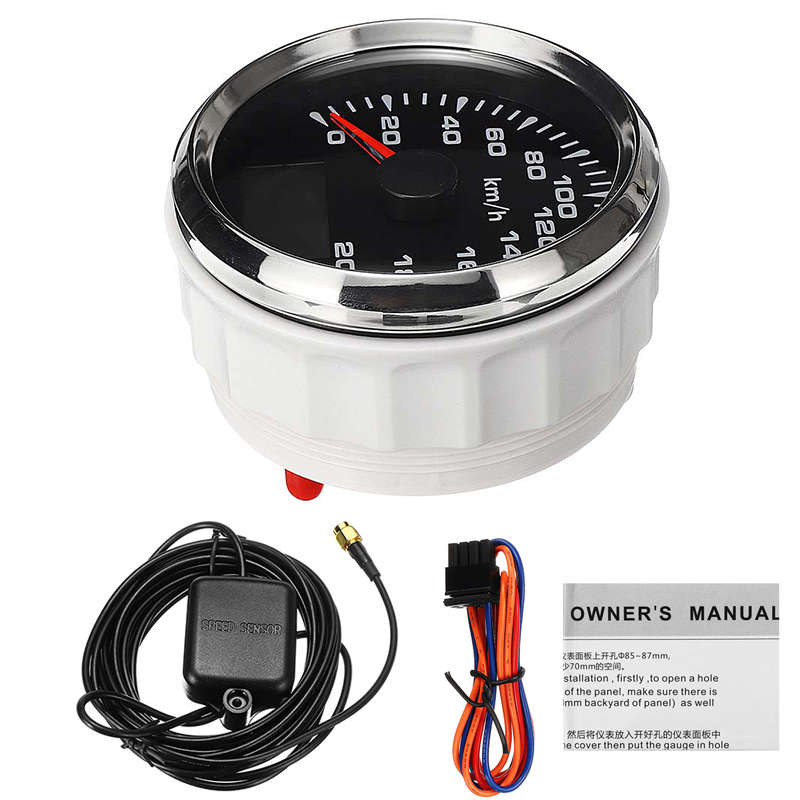

Package Included:
1 X GPS Speedometer Gauge
1 X User Manual

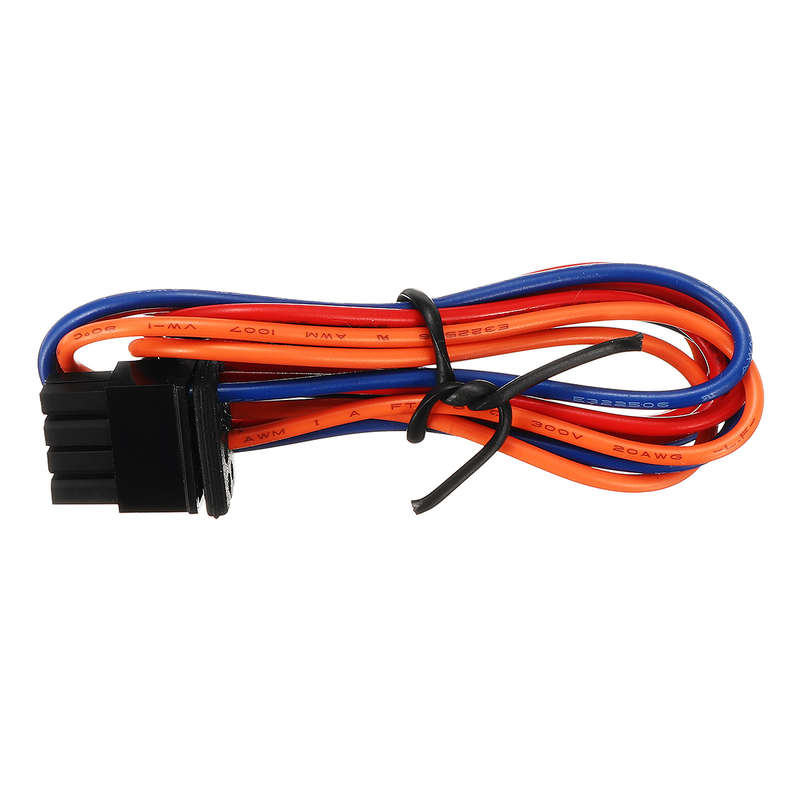

1 X Cable

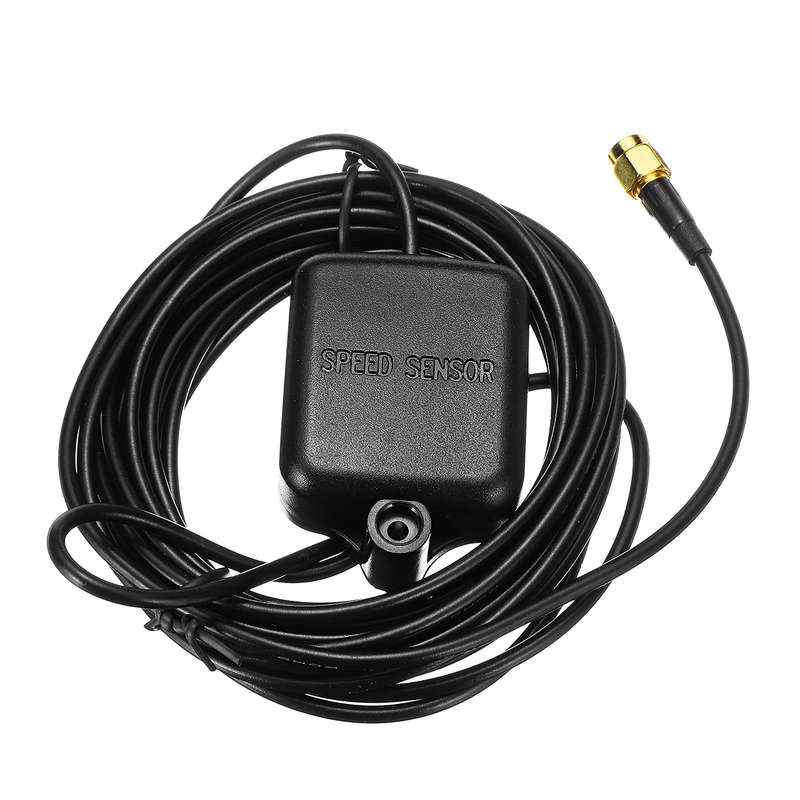

1 X GPS Speed Sensor
