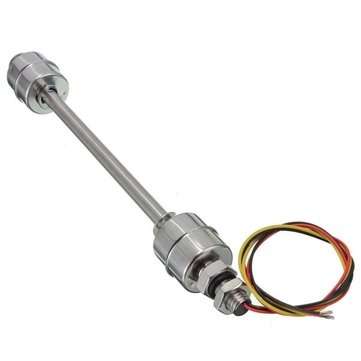

200mm Liquid Float Switch Water Level Sensor Stainless Steel Double Ball

New

20 available

R456.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4046

92.38 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654078758

Description :

200mm Liquid Float Switch Water Level Sensor Stainless Steel Double Ball Features :

Double float switch can be used in water tank, ponds, tanks, fish tank, and other liquid level control (drainage or water),do the upper and lower level alarm switch.
Inside contacts are use reed switch sensitivity is very high.
Float ball point can not move in anywhere, the float point is fixed, up and down have circlip limit.
The circlip moving is not use, inside reed contacts are not moving.
Float switch can not directly control the pump or solenoid valve, float switch inside the reed contact current, control a large load will burn.
Control solenoid valves, alarms to add small relays, control water pump need to add a small relay and AC contactor.
(According to the pump power equipped with the corresponding AC contactor). Specification :

Material: Stainless Steel
Cable length: 30cm
Float body Length: 200mm
Switching voltage: Max. 220V DC
Switching current: Max. 1.5A
Carry current: Max. 3.0A Package includeds :
1 x Stainless Steel Float Switch Double Ball

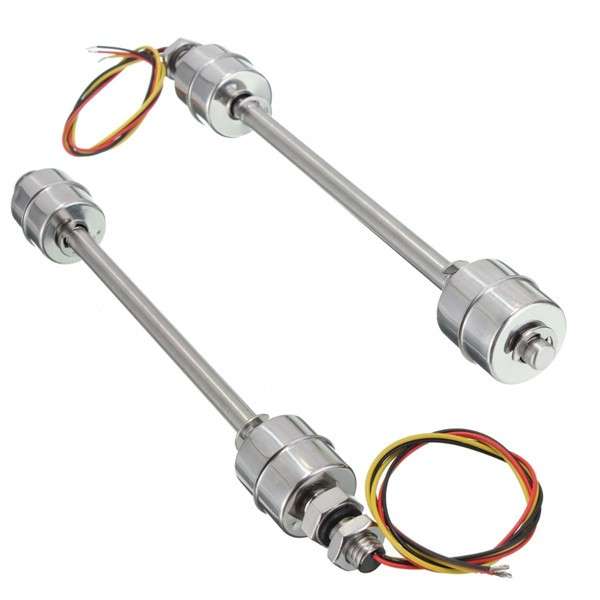

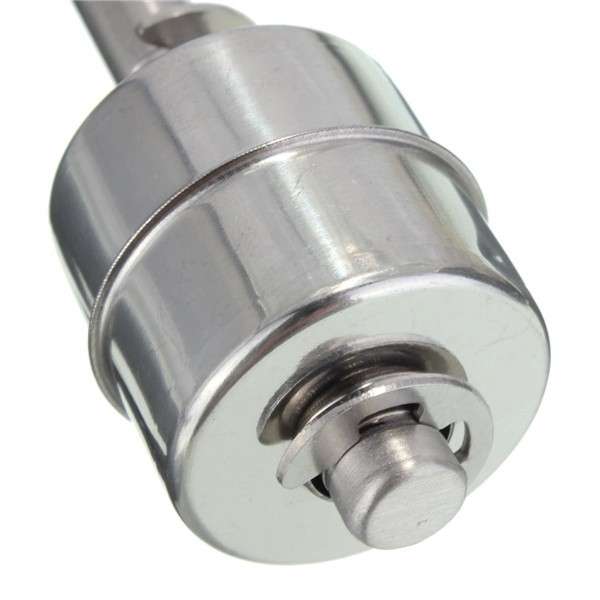

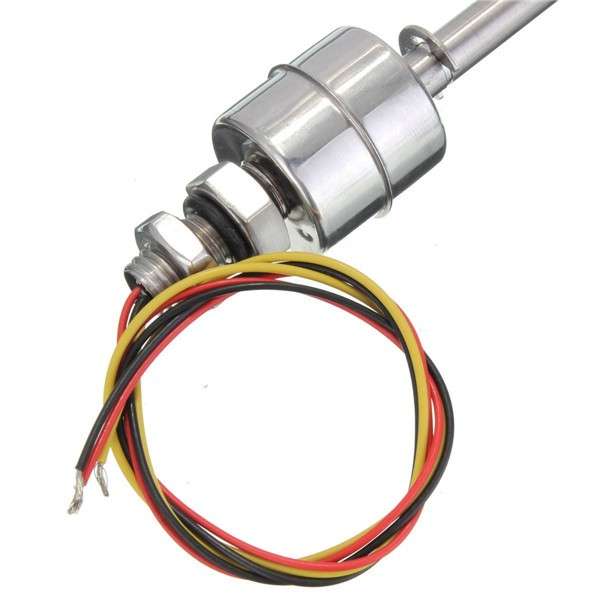

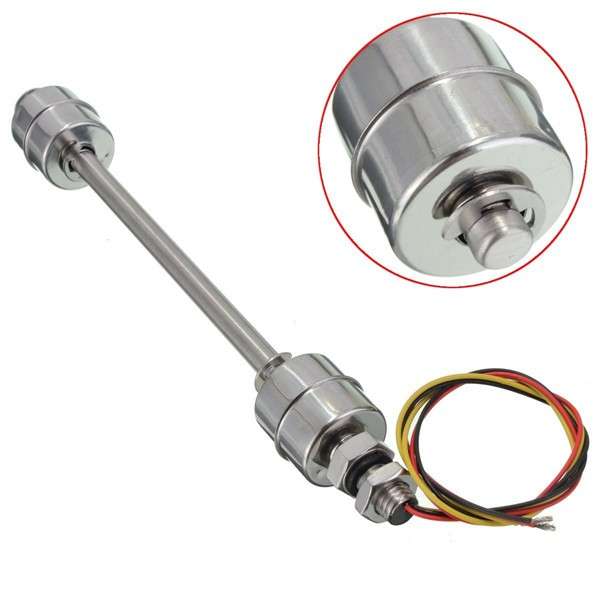

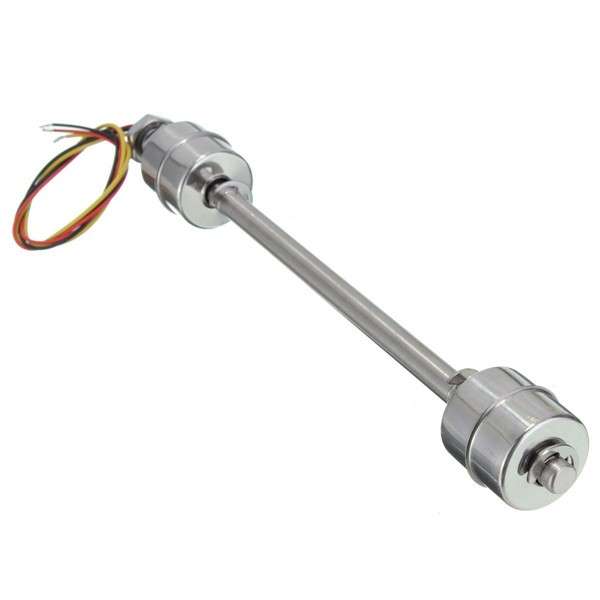

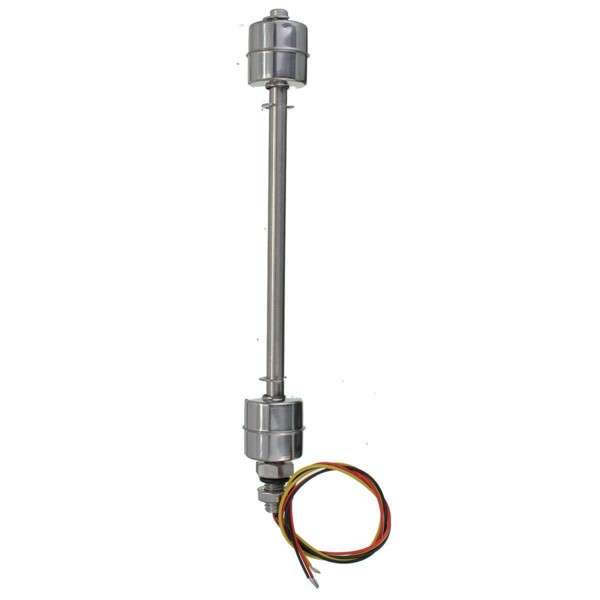

Details pictures :
