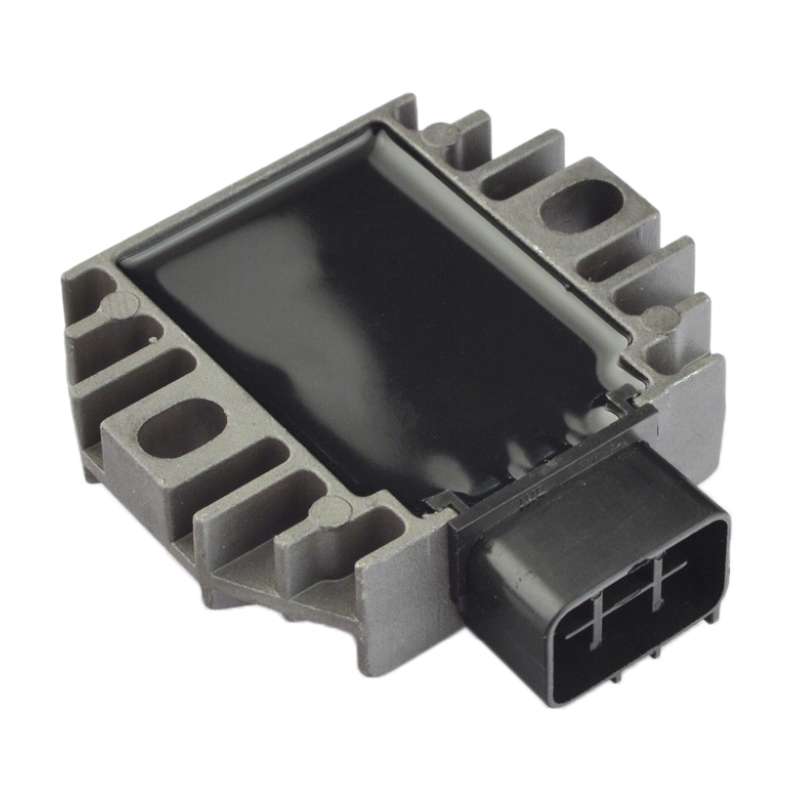

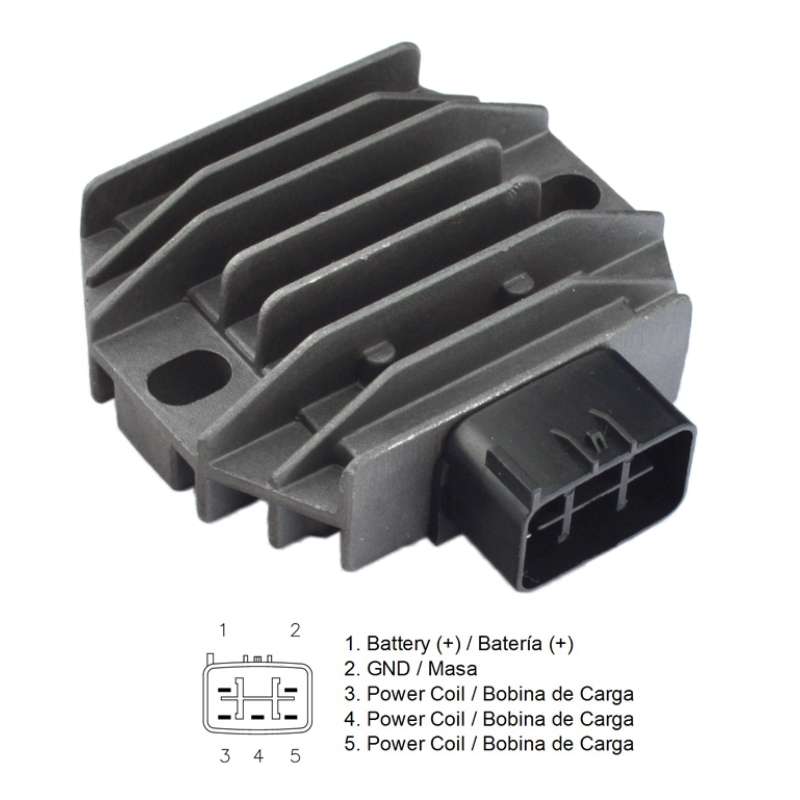

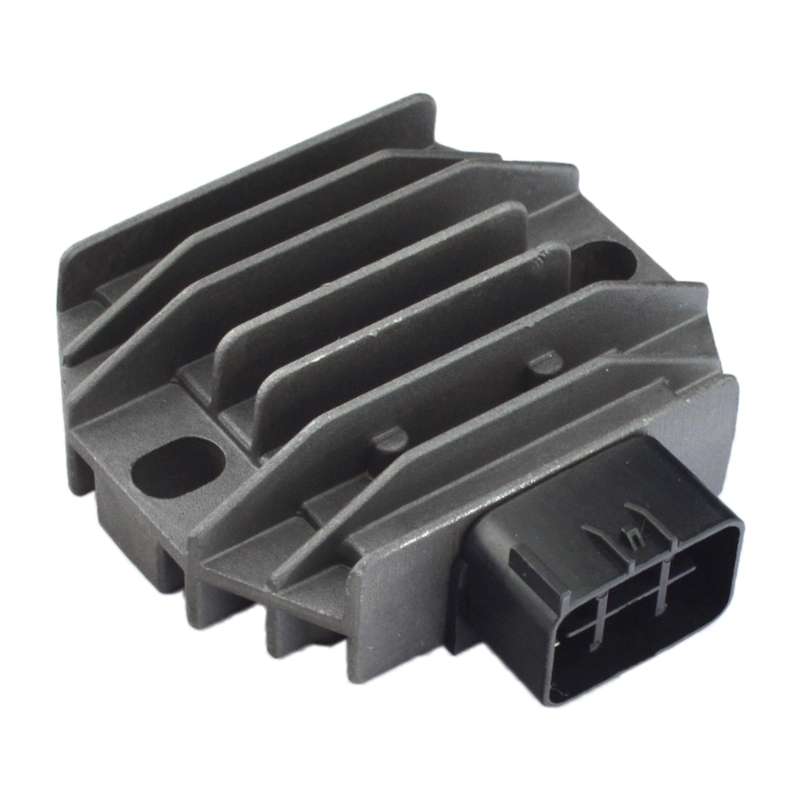

2010.0 Motorcycle Rectifier For Qianjiang / Yamaha YFM400 TRX400 / Suzuki RMX450Z

1. Weight: 150G
2. Output voltage: 14.V
3. Category: Three-phase full-wave rectifier

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative outputs are not connected, start the locomotive, measure the positive and negative output voltages, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier Check whether the voltage at the end is within a reasonable range. If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the overvoltage from burning out other electrical devices when the rectifier is damaged.

Applicable models:
For SH640D-12 SH640E-11 31600-HM8-013
For YAMAHA YFM400 KODIAK 2X4/4X4
For YAMAHA ATV BEAR TRACKER 250 YFM250 2001-2004
For YAMAHA GRIZZLY 600 YFM600 1999-2001 2004-2013
For HONDA TRX400EX TRX 400 EX 1999-2004
For YAMAHA KODIAK 400 YFM400 2000-2006 WITH GASKET ATV
For YAMAHA GRIZZLY 600 YFM600 1999-2001 WITH GASKET ATV
For YAMAHA RAPTOR 660 2x4 ATV 04 YFM600 1999-2001 WITH GASKET
For YAMAHA YFM600 Grizzly 1999-2001
For YAMAHA YFM 250 X BEAR TRACKER 2004
For YAMAHA YFM 400 KODIAK 2WD 2000 2001 2003 2004
For YAMAHA LC135
For YAMAHA MAJESTY 180
For YAMAHA MAJESTY 125
For YAMAHA MBK SKYLINER 125 150XVS1100 V-STAR 1100 CLASSIC 2000-2009
For YAMAHA AST WHEEL 2003
For YAMAHA GRIZZLY 600
For YAMAHA YP250 MAJESTY XJR400 XJ600 XVS400
For SUZUKI LT-R450 QUADRACER 450 LTR450 2006-2009
For SUZUKI RMX450Z 2010-2011
