Description:
1. No need to wire to replace the lamps, it can realize the intelligent scene of remote switch lights, voice control switch lights, and turn on lights at home.

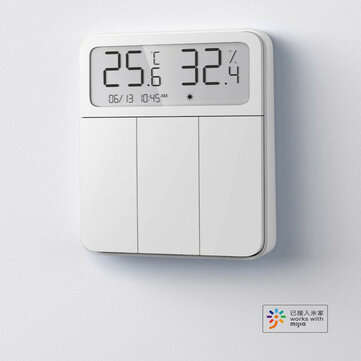

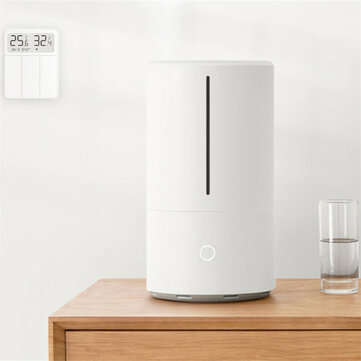

2.?Built-in temperature and humidity sensor, you can clearly see the temperature and humidity of the room where the switch is located, and connect to the air conditioner and humidifier in the Mijia linkage room.
3.?After accessing the Mijia APP, you can customize any key as the switch of other smart devices in the home.
?¯??Note:This smart switch must used with?Multimode?Smart Home Gateway
Description:
1. No need to wire to replace the lamps, it can realize the intelligent scene of remote switch lights, voice control switch lights, and turn on lights at home.
2.?Built-in temperature and humidity sensor, you can clearly see the temperature and humidity of the room where the switch is located, and connect to the air conditioner and humidifier in the Mijia linkage room.
3.?After accessing the Mijia APP, you can customize any key as the switch of other smart devices in the home.
Installation:
Please make sure that the main power switch of the home is turned off before installation!
1. Put your thumb on the opening slot at the bottom of the switch button and pry upward to separate it from the main body of the switch
2. Use a screwdriver to loosen the terminal screw on the back of the switch, connect the live wire to the L hole, and connect the load (light) wire to the L1, L2 or L3 hole. After confirming that the wiring is correct, tighten the terminal screw;
3. Use the mounting screws to fix the switch to the wall junction box, press the strong current switch to the on state, and buckle it, and put it on the button panel
4. Turn on the main power switch, the screen displays temperature and humidity information, press the switch button, you can control the light normally, indicating that the switch is working normally.
Parameter |
Brand | XIAOMI |
Product Model | ZNKGO3HL |
Rated Input | 220V~ 50Hz |
Wireless Connection |
