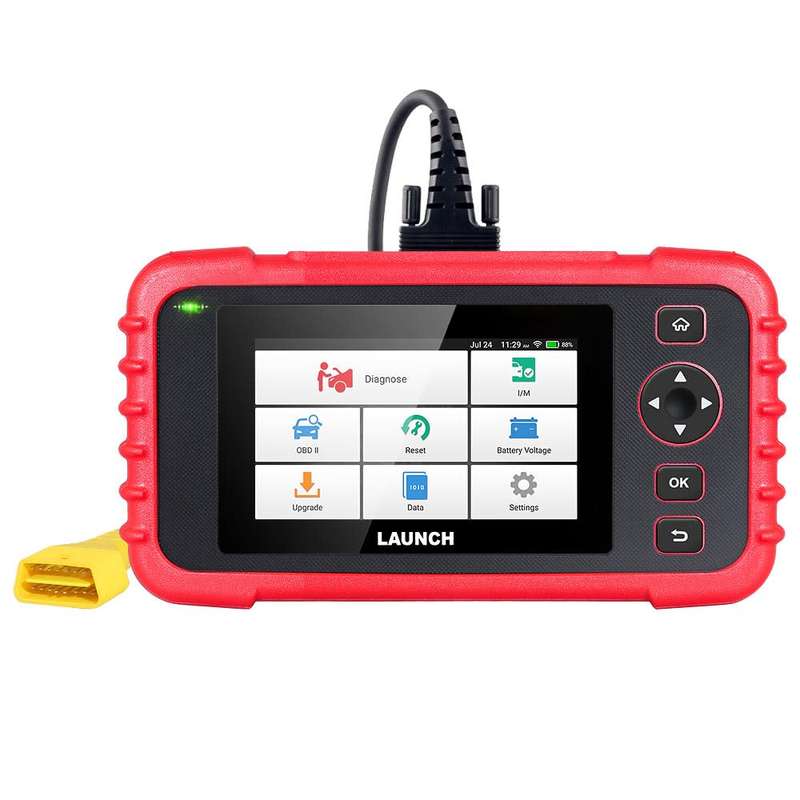

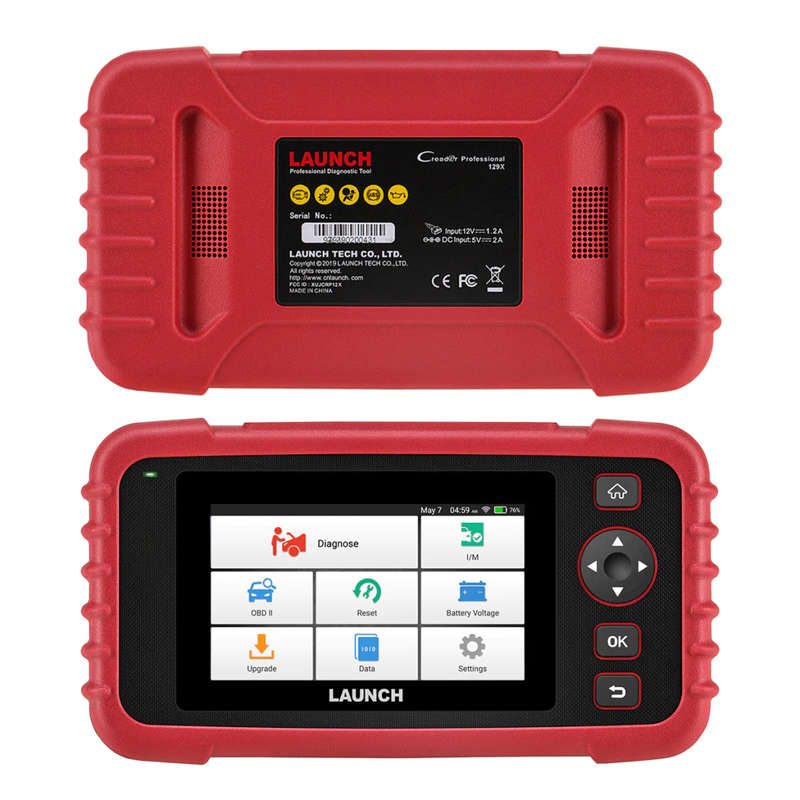

CRP123X VS CRP123X V2.0
1.ROM Storage change from 16G-> 32G
2.Android 7.0 -> 8.1
3. Newly add 4 special functions, total 7 special functions: 1) RESETETS
2)RESETOIL
3) RESETSAS
4)RESETBLEED ABS(new add)
5) RESETBMS(new add)
6) RESETBRAKE(new add)
7) RESETDPF(new add)
Four System Diagnosis
1.Engine System Diagnostic
Launch CRP123X obd2 scanner Read and clear check engine light code on most 1996 & update models. Real time data allows you to view vehicle sensor, switch and relay inputs in real time while the engine is running. The instantaneous change of real-time data information can quickly identify the problem of components, which is helpful to analyze the problem.
2.Antilock Braking System(ABS)
The diagnostic tool CRP123X is available for accessing and performing diagnostics on Anti-lock Brake Systems respectively Whether it is the brake pad deviation, the brake pad does not return to position, or other reasons of failure. Launch crp123X can easily locate, read the error code, and turn off the car fault light after maintenance.
3.Airbag System Diagnostic(SRS)
This OBD2 scanner supports supplementary restraint system (SRS) diagnosis for most domestic and imported vehicles. By reading the codes and google DTC definition helps to solve the issue. It helps remind you even if maintenance, solve security risks.
4.Auto Transmission System
Launch scanner crp123X diagnostic scanner is an automatic transmission service tool that supports reading/erasing codes, viewing live data and turning off the warning light in the transmission system. The LAUNCH CRP123X obd2 scanner provides the user a detailed view into this critical components operation and function, allowing fast, accurate and complete diagnosis of existing, or potential issues.
7 Free Reset Service
1 EPB Service- Reset the brake pad after the repairs in electronic parking brake system are done. By using this system, the braking process is therefore made much simpler and easier.
2 Oil Reset- It is also enabled with an oil service and lamp reset mechanism, a function which ensures that the vehicle engine is maintained in its rightful healthy self.
3 SAS Reset- It helps clear the faulty steering angle sensor memories and plays an important role in the steering angle sensor calibration.
4 Battery Register & Battery Maintenance - Perform a reset on the vehicle battery for clearing the fault information and re-match the battery.
5 ABS BLEEDING - When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;
6 Throttle Adaptation- Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.
7 DPF Regeneration - Clear particulate matter from the DPF filter to stabilize the filter performances
9 Kinds of Languages Supported
English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese.
Specifications
Operation System: Android 8.1 Screen: 5" touch screen
RAM: 2G
ROM: 32GB
Battery: 6100mAh rechargeable Li-battery
OBD II input voltage range: 9~18V
Charging via: DC 5V charging cable or Diagnostic cable through connection to vehicle's DLC
Dimension: 228mm x 125mm x 34.5mm
Working temperature: -10 to 50 C (14 to 122 F )
Storage temperature: -20 to 70 C (-4 to 158 F )
What's in the box
1 x Creader Professional 123X handset 1xOBD II diagnostic cable
1 x DC 5V charging cable
1 x User manual
1 x Carrying bag
