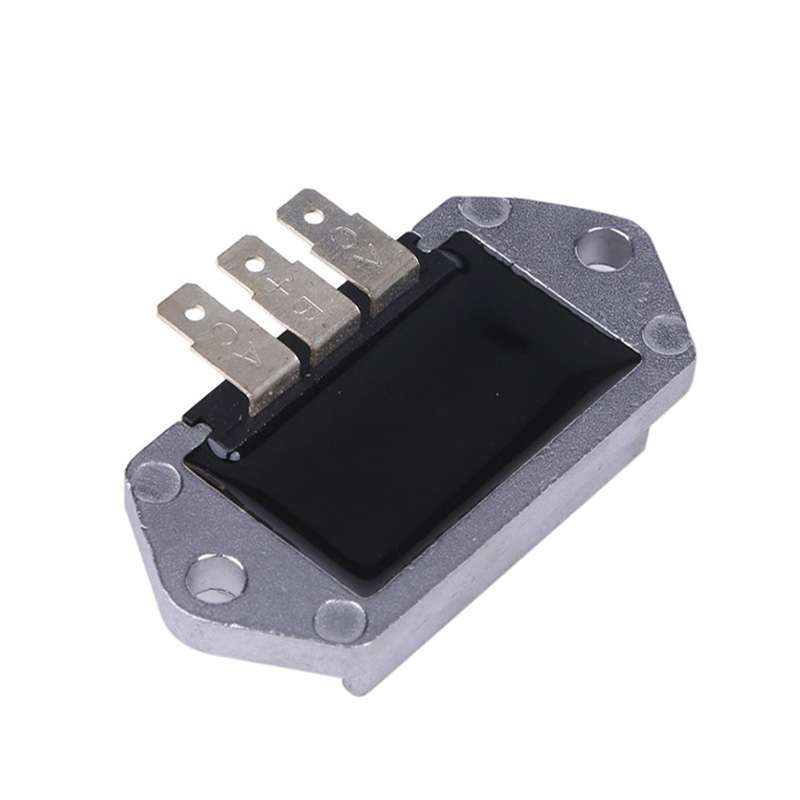

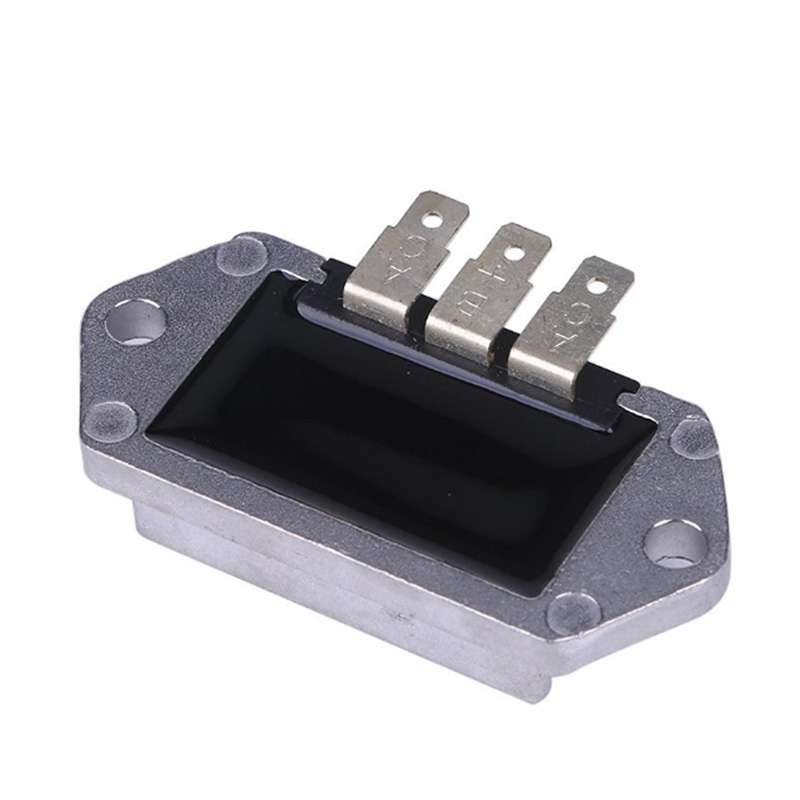

2054.0 Motorcycle Rectifier For 4140309 4140305 4140309 21066-7017

TBD0545457101

1. Weight: 84G
2. Size: 81x50x23MM
3. Output voltage: 14.5V / 15A

Installation precautions:
1. The rectifier should be installed in a place with good ventilation and good heat dissipation. The rectifier will produce high temperature when it is working, and poor heat dissipation will damage the rectifier
2. The installation procedure of the rectifier is to connect the AC input line, not connect the positive and negative output, start the locomotive, measure the positive and negative output voltage, and insert the positive and negative power supply when the voltage range is reasonable. Negative, then test the battery or rectifier. If the voltage range is unreasonable, please stop using it and provide feedback. The entire installation process should be recorded and saved.
3. Please note that the rectifier should be tightly installed on the rack during installation to facilitate heat conduction. You can also add thermal glue between the rectifier and the frame
4. Do not press other wires between the rectifier and the rack
5. There should be a fuse protection device between the positive socket of the rectifier and the battery to prevent the excessive voltage from burning down other electrical components when the rectifier is damaged.

Applicable models:
For John Deere MIA11665
For John Deere AM106357
For John Deere AM34738
For John Deere AM102596
For Kohler 41-403-09-S
For Kohler 41-403-04
For Kohler 25-755-03-S
For Kohler 234279
For Kohler 41-403-09
For Kohler 41-403-05
For Kohler 41-403-01
For Kohler 41-403-10-S
For Kohler 25-755-03
For Kohler 25-755-03S
For Reemplazo Transpo KH4309
