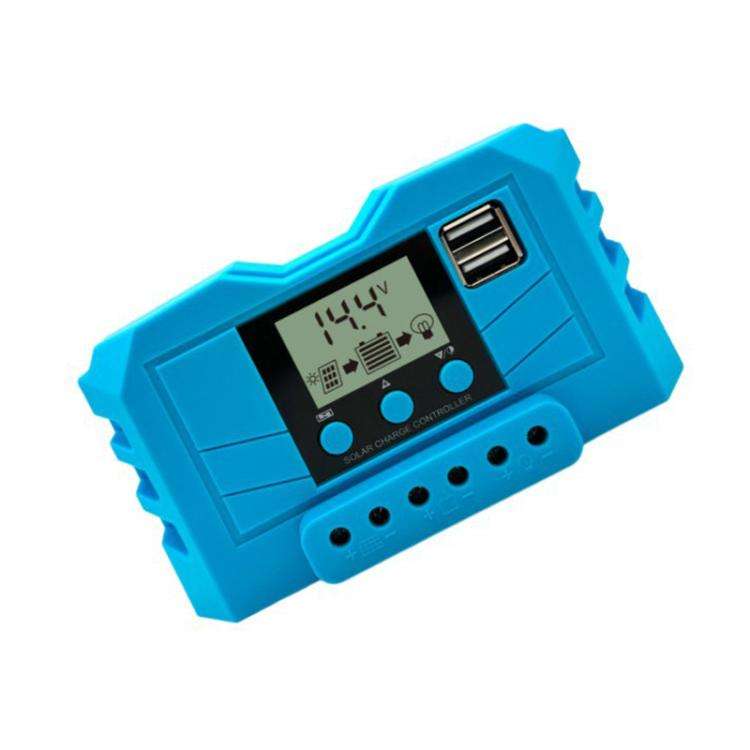

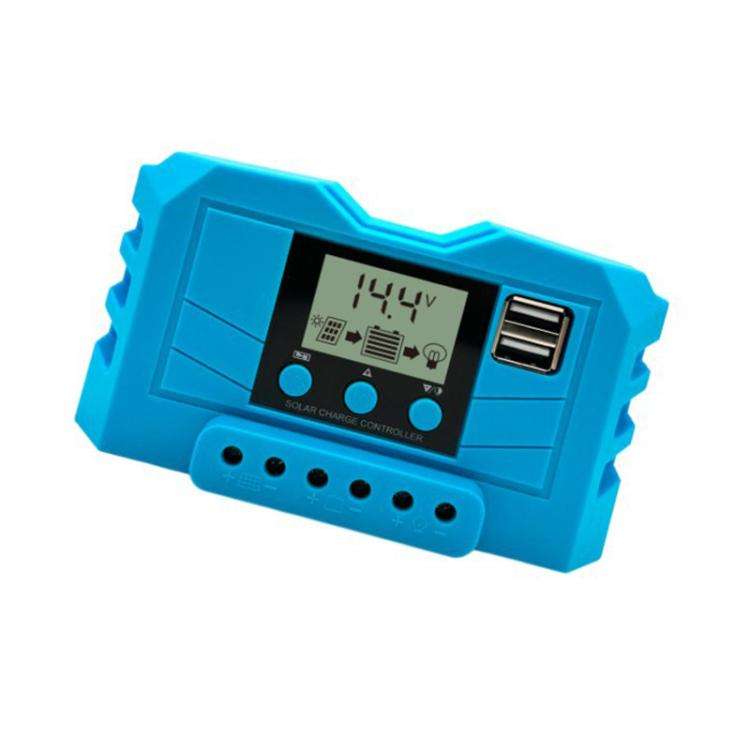

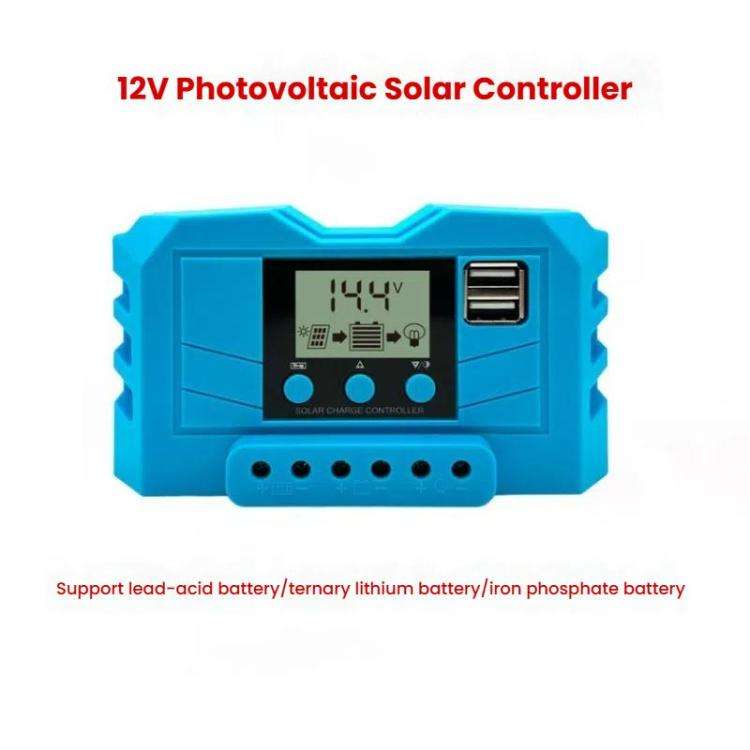

-Supports battery type (factory setting defaults to B2):
-B1=Lead-acid battery 12V/24V (automatic recognition)
-B2=Lithium ion battery (3 strings of 3.7V=11.1V lithium battery)
-B3=Lithium iron phosphate battery (4 strings of 3.2V=12.8V)
-Safe use recommendations:
1. This controller is suitable for 3 kinds of batteries, lead-acid batteries (12V/24V battery automatic identification), lithium-ion batteries, lithium iron phosphate batteries, please do not use in other batteries

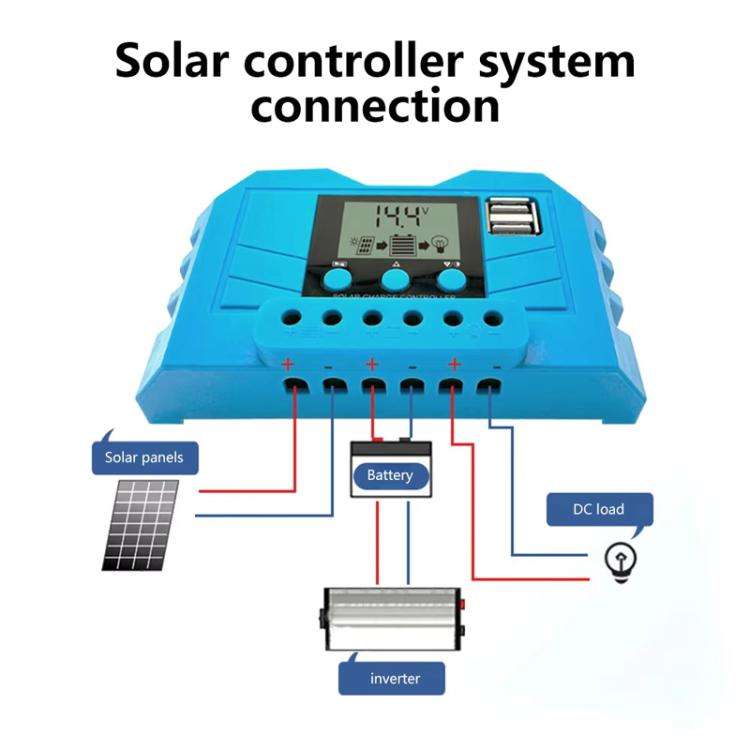

2. Install the controller as close to the battery as possible to avoid the voltage drop caused by long wires, which will affect the normal voltage judgment
3. When installing for the first time, please set the battery type according to the battery type, and make sure the battery has enough voltage so that the controller can recognize the correct battery type
4. This controller can only use photovoltaic panels as a charging source, please do not use DC or other power sources as a charging source
5. The controller will be hot when running, please pay attention to install the controller on a flat, well-ventilated surface
-Technical parameters:
1. System voltage: 12V/24V auto adaptive
2. Rated charging current: 10A, 20A, 30A
3. Rated discharge current: 10A
4. Maximum photovoltaic voltage: Maximum 23V for 12V battery; Maximum 46V for 24V battery
5. Charging cut-off voltage: 14.4V(B1), 12.6V(B2), 14.6V(B3)
6. Discharge cut-off voltage: 10.7V(B1), 9V(B2), 10V(B3)
7. Discharge recovery voltage: 12.6V(B1), 10.5V(B2), 12V(B3)
8. Light-controlled light on threshold: PV panel 8V (light-controlled light on with a delay)
9. Light control off threshold: PV panel 8V (light control off with a delay)
10. USB output: 2-channel USB output, 5V/1A (maximum)
11. Standby current: less than 10mA
12. Operating temperature: -35- 60 degrees Celsius
13. Weight: about 165g

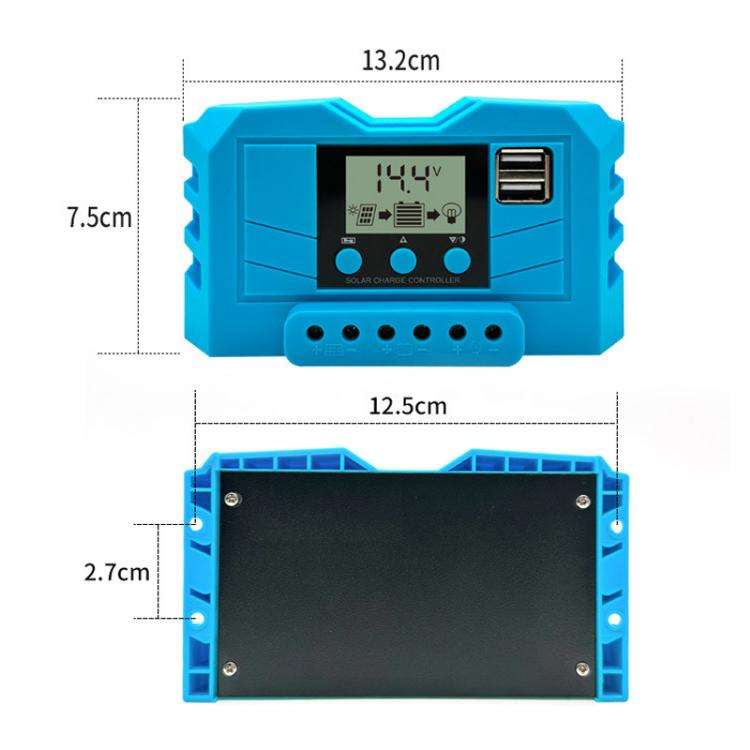

14. Size: about 13.2 x 7.5 x 3cm
15. Warm tips: the battery voltage displayed on the screen will have a small error, please prevail in practice

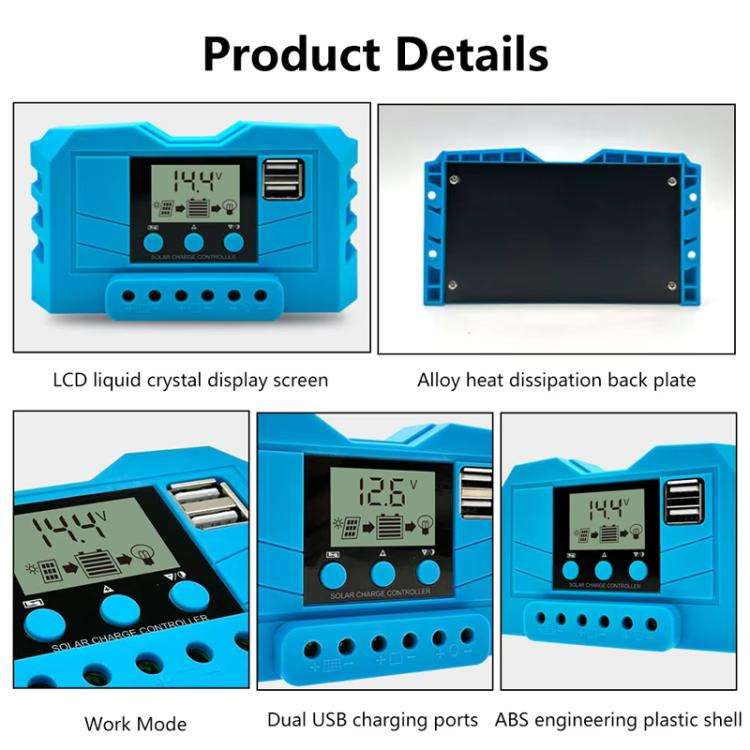

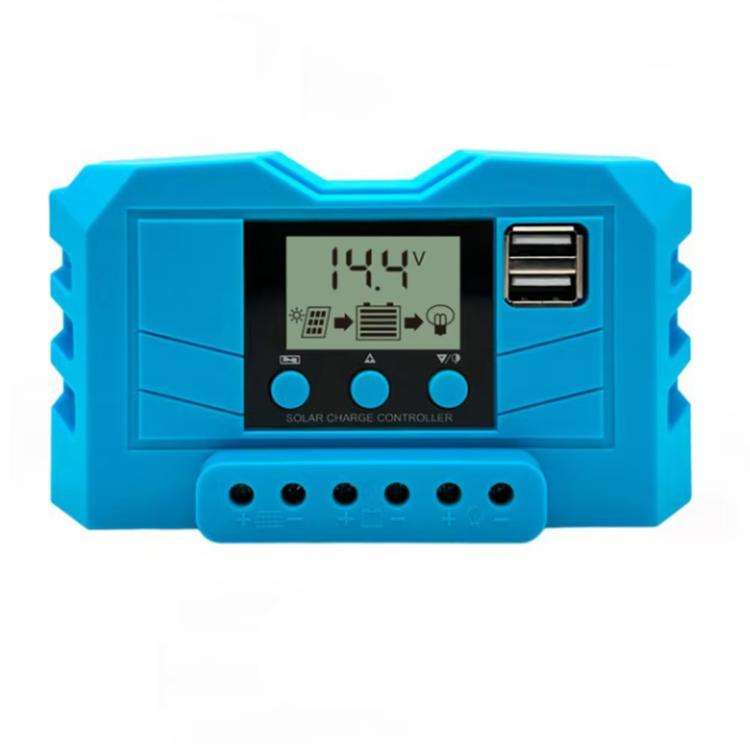

-Features:

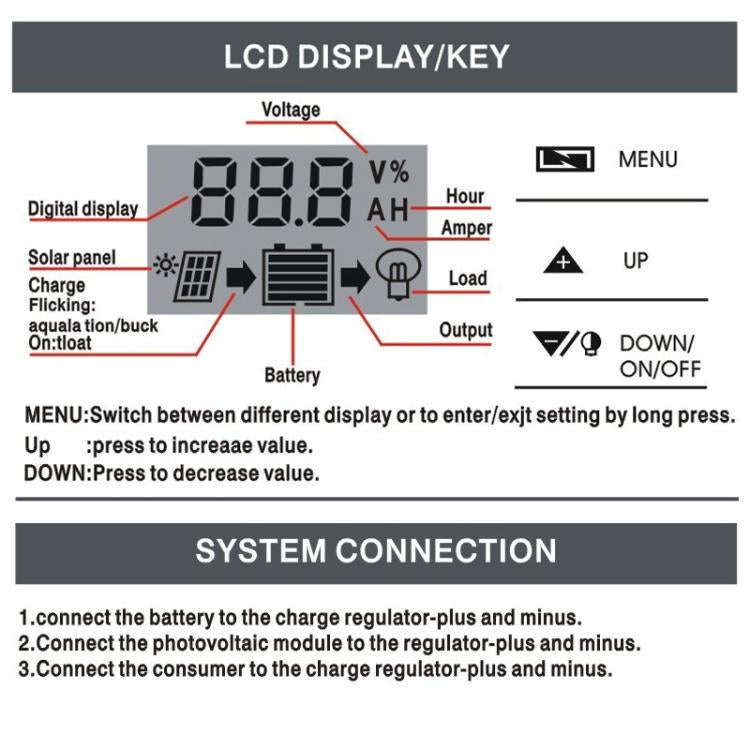

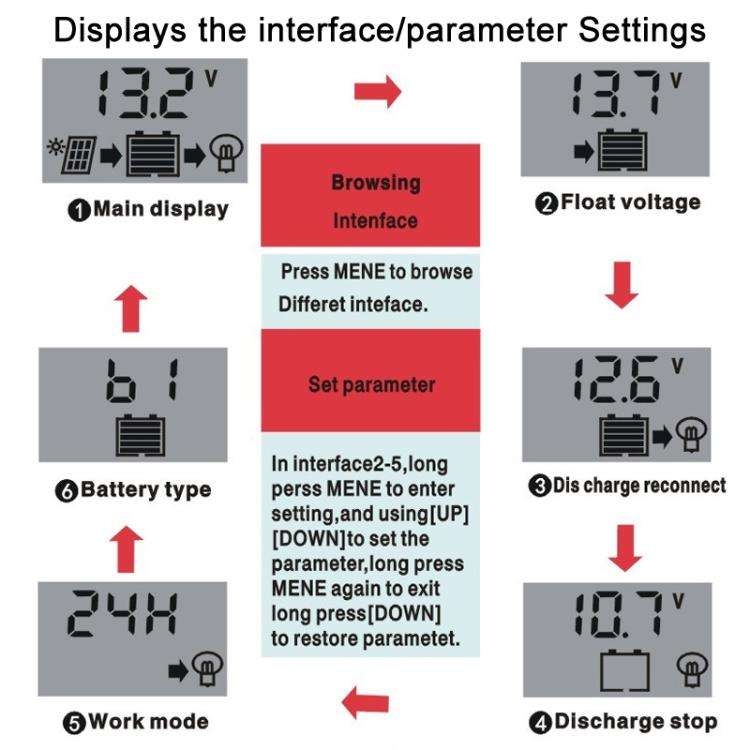

1. LCD display, use the LCD display settings, display timing settings corresponding to the LCD display is clear and intuitive, one-key operation can be completed
2. Alloy heat dissipation back plate, thickened heat dissipation back plate, improve heat dissipation performance, MOS tube close to the heat dissipation plate design, can be in the ambient temperature of 60 degrees Celsius normal operation
3. Working mode setting, touch the adjustment button, complete all settings with one key
4. Dual USB charging ports, support most of the USB interface devices on the market, such as cell phones, tablet PCs and PSP consoles
5. ABS engineering plastics shell, with high strength impact resistance, high ignition point, anti-aging, corrosion resistance and other characteristics, effective service life and safety
6. It is a new type of solar controller, can fully meet the requirements of your home photovoltaic system (including home lighting system)
